Tern Vektron Q9

Name: Tern Vektron Q9
Brand: Tern
SKU: 210000004940
Price: 3249.0 USD
Availability: OutOfStock

$3,249.00

Type: One Passenger

Color

A folding electric bike that doesn't ride like one!
New colors and updated styling
Upgraded to the Bosch Active Line Plus electric drivetrain for 270% more assistance and 50 Nm of torque
Hydraulic disc brakes for all-weather stopping power
Updated frame with a reclining battery for a lower center of gravity and a better ride
Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
Integrated Atlas V Rack™ works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family

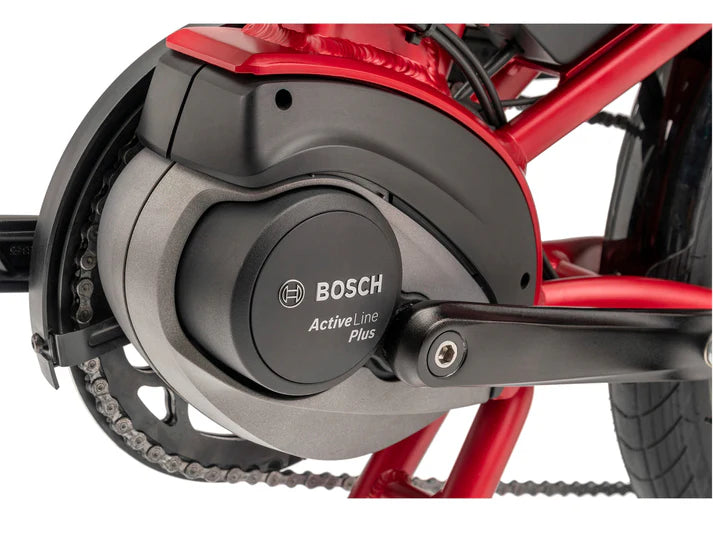

Motor	Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 20 mph (US)
Battery	Bosch PowerPack 400 Wh
Display	Bosch Purion, 4 mode selectable, walk assist
Charger	100-240V, 4A (US)

Frame	Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
Fork	Tern Tarsus, 6061-Al, hydroformed
Rear Shock	Not applicable
Front Brake	Shimano, hydraulic disc
Rear Brake	Shimano, hydraulic disc
Rear Derailleur	Shimano Alivio Shadow
Shift Levers	Shimano Alivio, 1 x 9 spd, trigger
Chain	9 spd, DHT for eBike, GST corrosion resistant coating
Cassette	Shimano 11-32T, 9 spd
Crankset	Vektron custom, forged 6061-AL crankarm
Chain Ring	Spec not provided
Chain Guard	SKS Chainblade
Rims	Kinetix Comp, for disc
Front Hub	Shimano disc
Rear Hub	Shimano disc
Front Tire	Schwalbe Big Apple, 55-406, puncture protection, Reflex
Rear Tire	Schwalbe Big Apple, 55-406, puncture protection, Reflex
Handlebar	Flat bar, 6061-AL, Tern Andros adapted
Stem	Tern Andros, adjustable, forged construction, patented technology
Headset	Tern Flux, cartridge bearings, Physis integrated
Grips	Velo ergonomic, lock-on
Saddle	Tern Porter, patented GripPad design
Seatpost	Tern Telescope, 34.9/30.9 mm, 2014-AL

Pedals	MKS EZY
Front Light	Tern Valo Direct, 190 lumens
Rear Light	Herrmans H-Trace, for eBike
Kickstand	URSUS, rear mount
Rear Carrier	Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
Fenders	SplashGuard, stainless hardware
Bell	Aluminum
Lock	Not applicable
Mirror	Not applicable

FRAME SIZE:: One Size

WEIGHT::48.3 lb

GEAR INCHES::33" - 97"

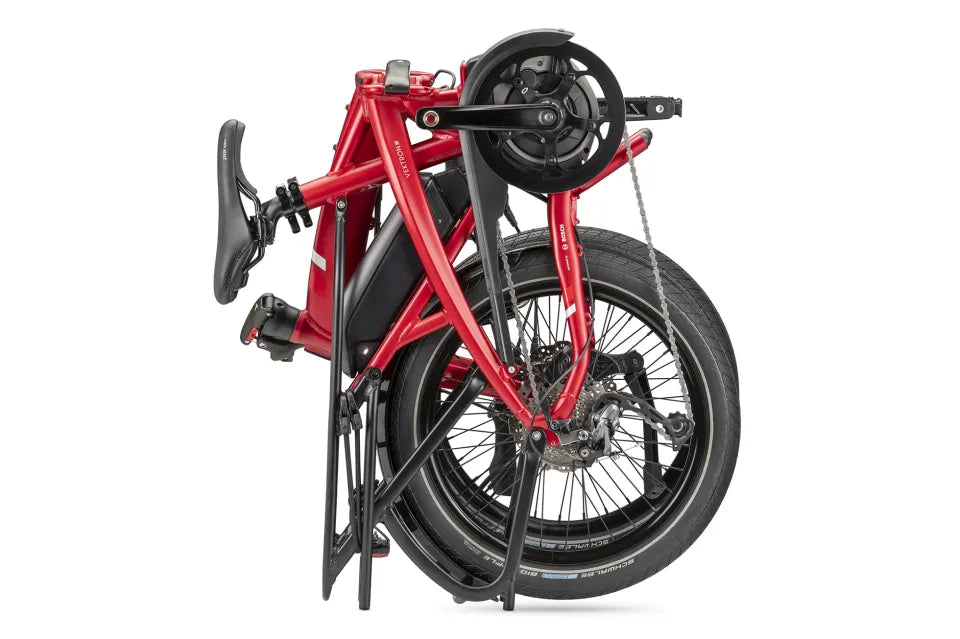

FOLDING SIZE::16.5 × 33.9 × 27 in

FOLDING TIME::10 seconds

DISTANCE, SEATPOST TO HANDLEBAR::24.4 - 27.2 in

DISTANCE, SADDLE TO PEDAL::26.4 - 43.3 in

SUGGESTED RIDER HEIGHT::57.9 - 76.8 in

MAX GROSS VEHICLE WEIGHT::275.6 lb
