We are super excited for this latest lightweight (34lbs!) offering by Marin in the Gravel-City category! Equipped with the new Bosch SX sprint motor this bike will help eliminate the climbs on your gravel adventure or get you to your appointment in the city faster than a car! Throw on a 250wh range extender and increase your ride by over 60%. This bike is perfect for those craving a lighter option that pedals so smoothly that you will forget it is an e-bike until you look at your speedometer.

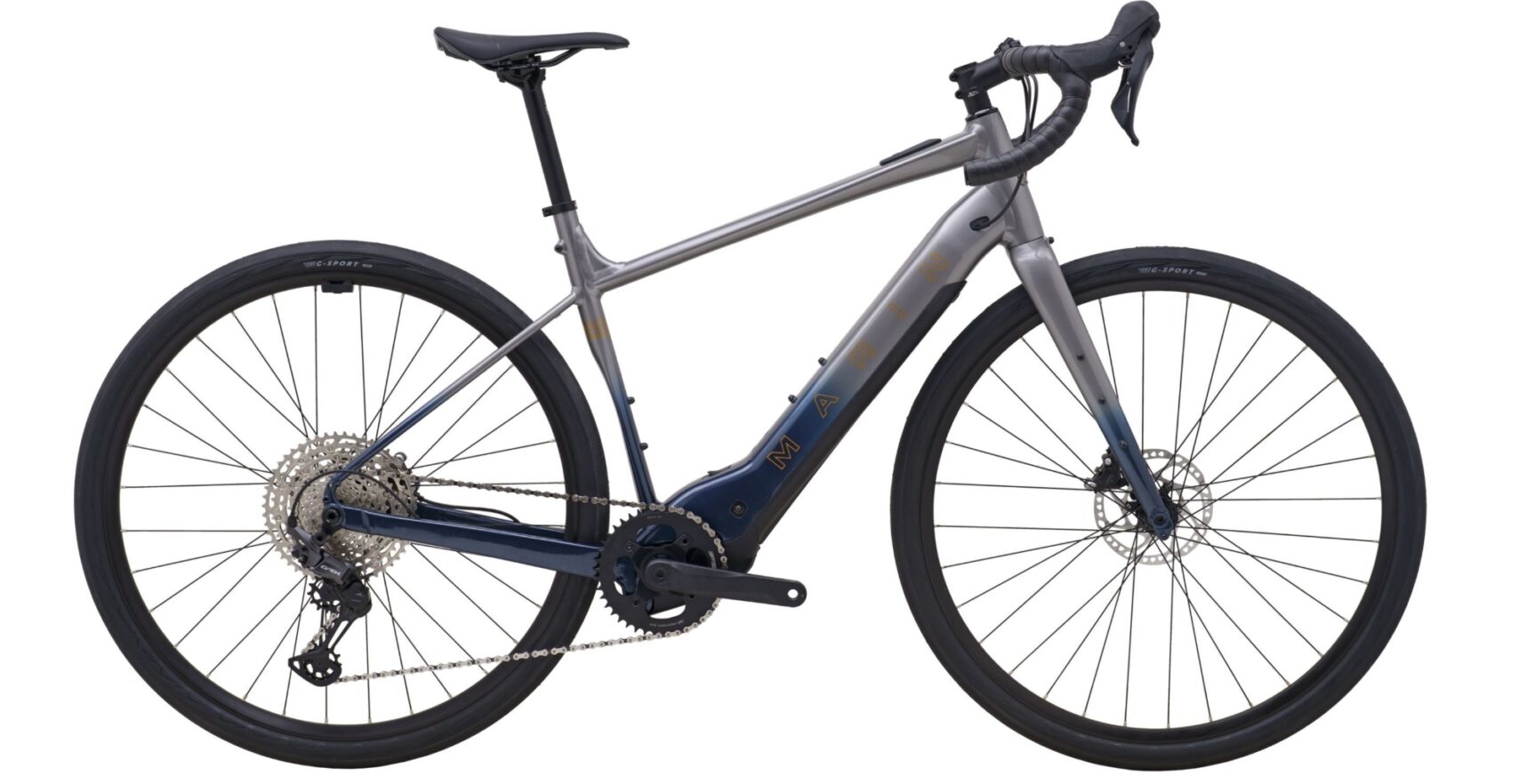

The Lombard E brings Bosch assisted performance to drop bars. Great for gravel, commuting or just long, assisted road rides, both Lombard models are built upon Series 4 aluminum Beyond Road frames with 400Wh batteries securely mounted inside the downtube. Bosch's Performance Line SX drive unit provides 55Nm of quiet and natural-feeling torque to zip you along.

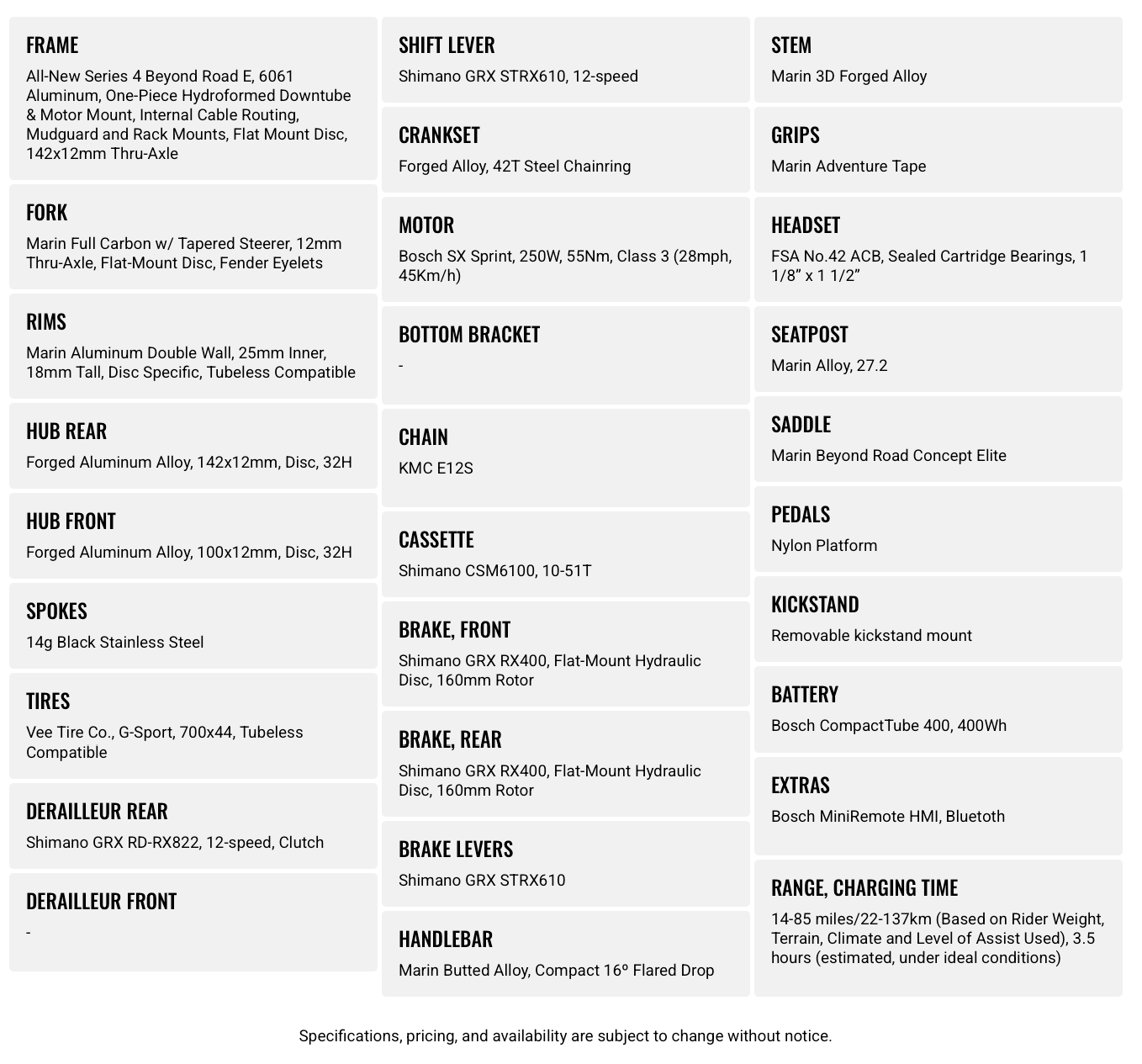

FRAME
All-New Series 4 Beyond Road E, 6061 Aluminum, One-Piece Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
FORK
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIMS
Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible
HUB REAR
Forged Aluminum Alloy, 142x12mm, Disc, 32H
HUB FRONT
Forged Aluminum Alloy, 100x12mm, Disc, 32H
SPOKES
14g Black Stainless Steel
TIRES
Vee Tire Co., G-Sport, 700x44, Tubeless Compatible
DERAILLEUR REAR
Shimano GRX RD-RX822, 12-speed, Clutch
SHIFT LEVER
Shimano GRX STRX610, 12-speed
CRANKSET
Forged Alloy, 42T Steel Chainring
MOTOR
Bosch SX Sprint, 250W, 55Nm, Class 3 (28mph, 45Km/h)
CHAIN
KMC E12
CASSETTE
Shimano CSM6100, 10-51T
BRAKE, FRONT
Shimano GRX RX400, Flat-Mount Hydraulic Disc, 160mm Rotor
BRAKE, REAR
Shimano GRX RX400, Flat-Mount Hydraulic Disc, 160mm Rotor
BRAKE LEVERS
Shimano GRX STRX610
HANDLEBAR
Marin Butted Alloy, Compact 16º Flared Drop
STEM
Marin 3D Forged Alloy
GRIPS
Marin Adventure Tape
HEADSET
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST
Marin Alloy, 27.2
SADDLE
Marin Beyond Road Concept Elite
PEDALS
Nylon Platform
KICKSTAND
Removable kickstand mount
BATTERY
Bosch CompactTube 400, 400Wh
EXTRAS
Bosch MiniRemote HMI, Bluetoth
RANGE, CHARGING TIME
14-85 miles/22-137km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 3.5 hours (estimated, under ideal conditions)

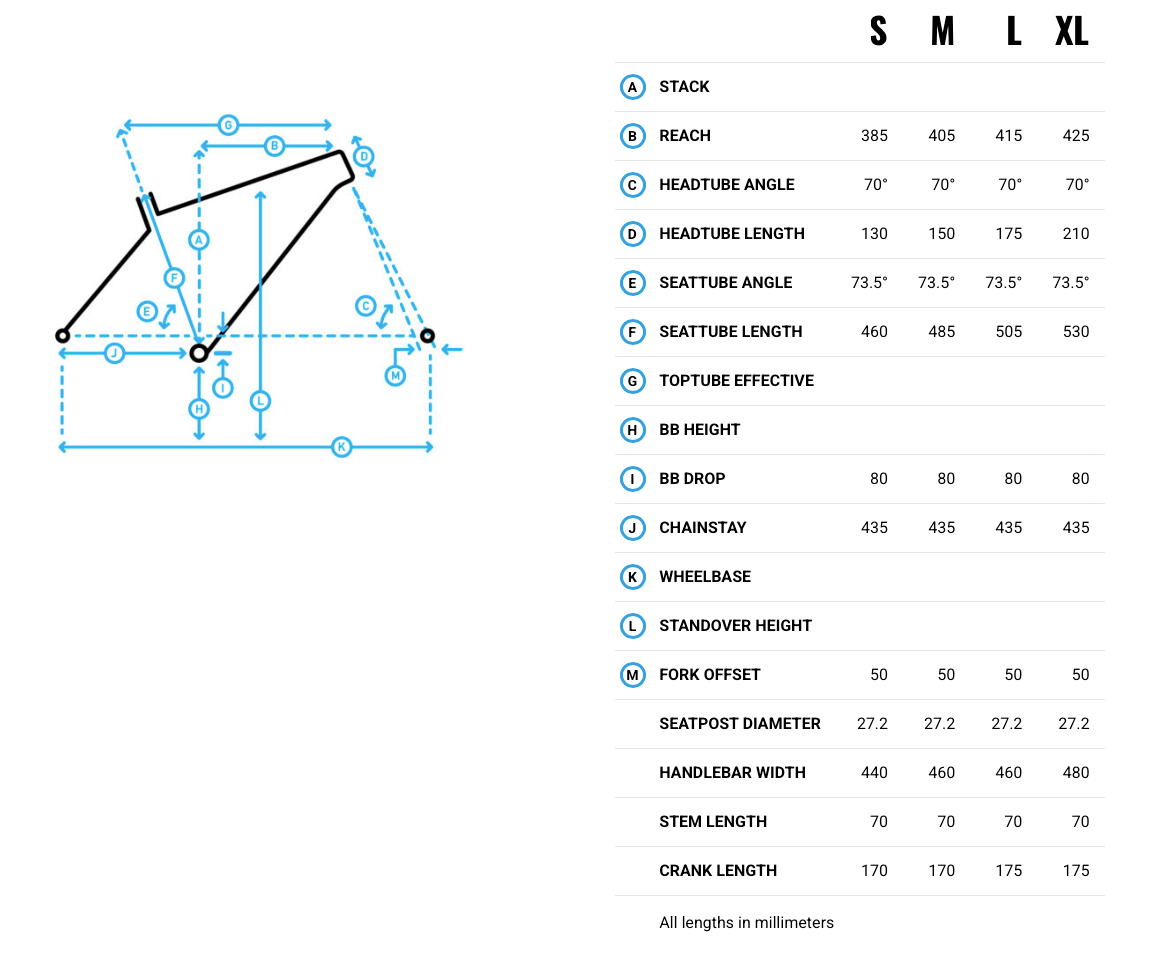

How do you know what size of bike you should buy?
A good place to start is using the sizing charts included for each bike on the info page. If you're in the middle of the recommended height range for a specific size then usually that's the correct one to go with. If you find yourself overlapping sizes at either the top or bottom of the height recommendation than sizing up or down could be a consideration.
For more relaxed fitting "city-style" bikes sizing is less crucial because often they will have adjustable stems and offer more overlap in sizing. Smaller bikes will be slightly easier to manage when starting and stopping while larger bikes will feel more stable when riding. Most often we recommend sizing down in this category.
Bikes that have a more aggressive riding position i.e. road, gravel and mountain bikes sizing is more important. In these categories we usually look closely at 3 numbers, reach, stack, and top-tube length.
