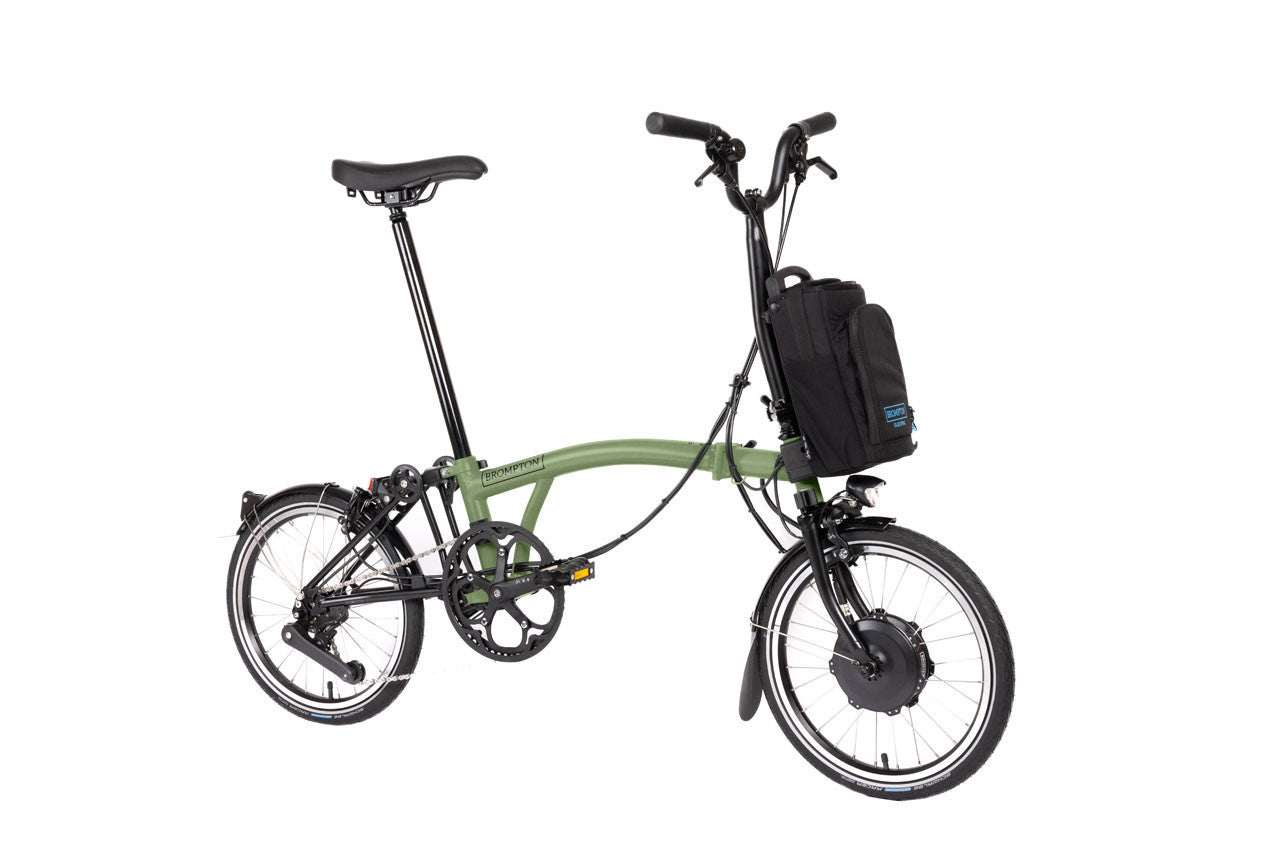

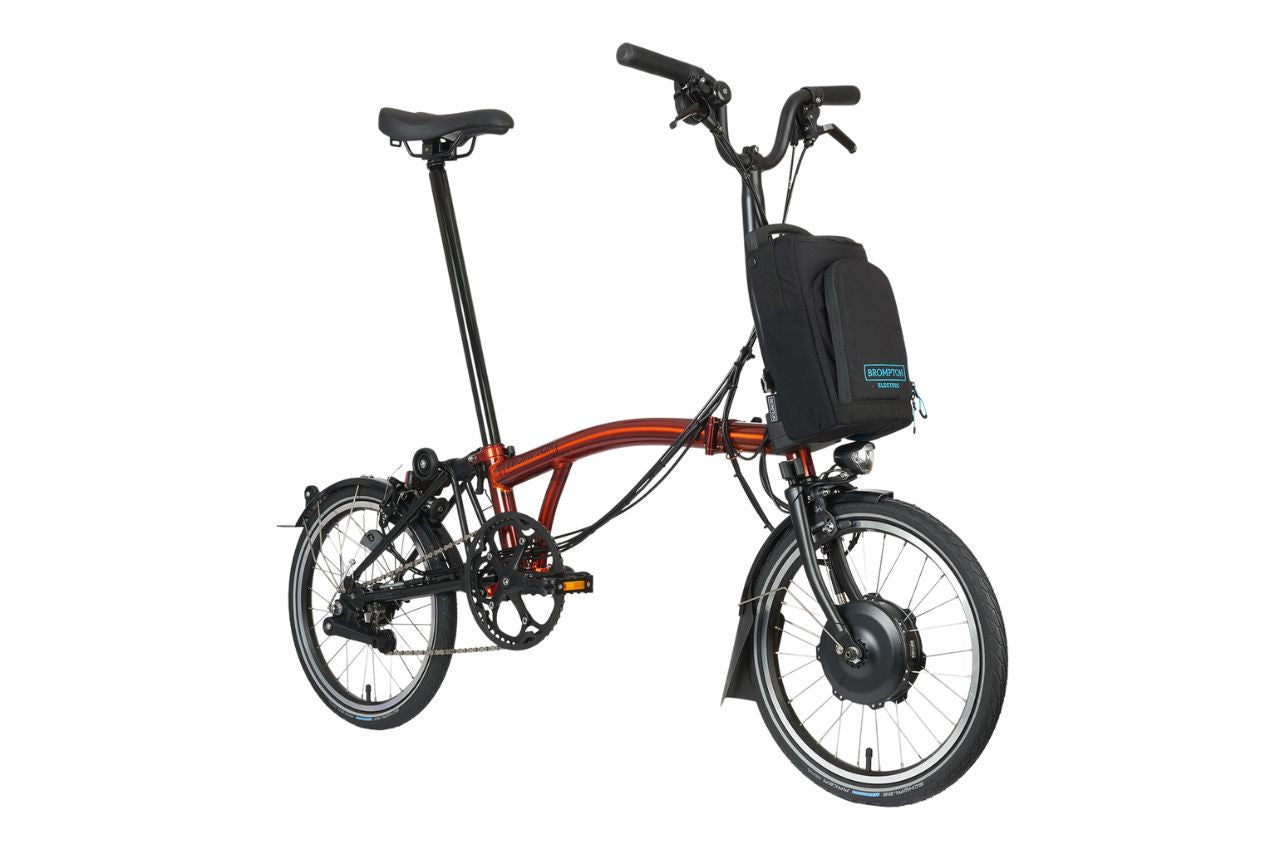

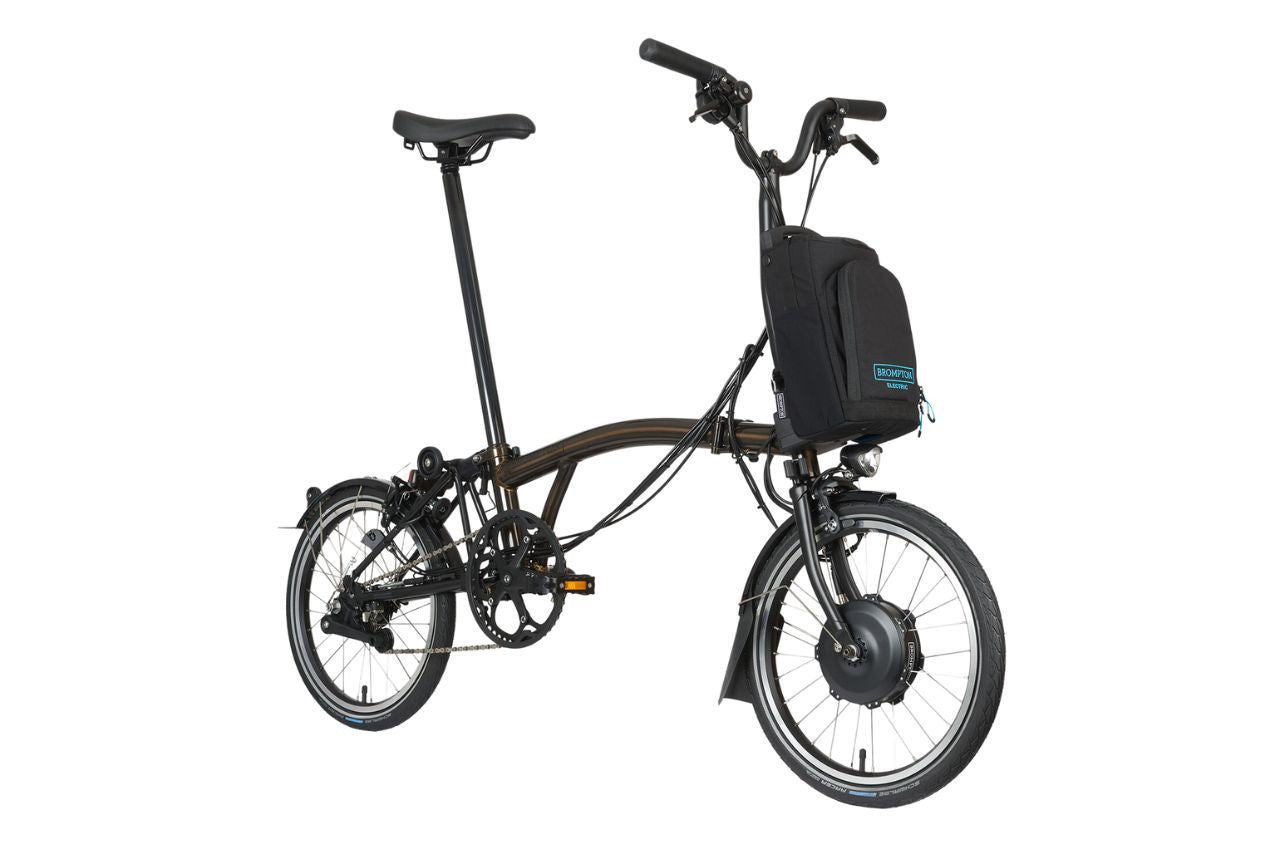

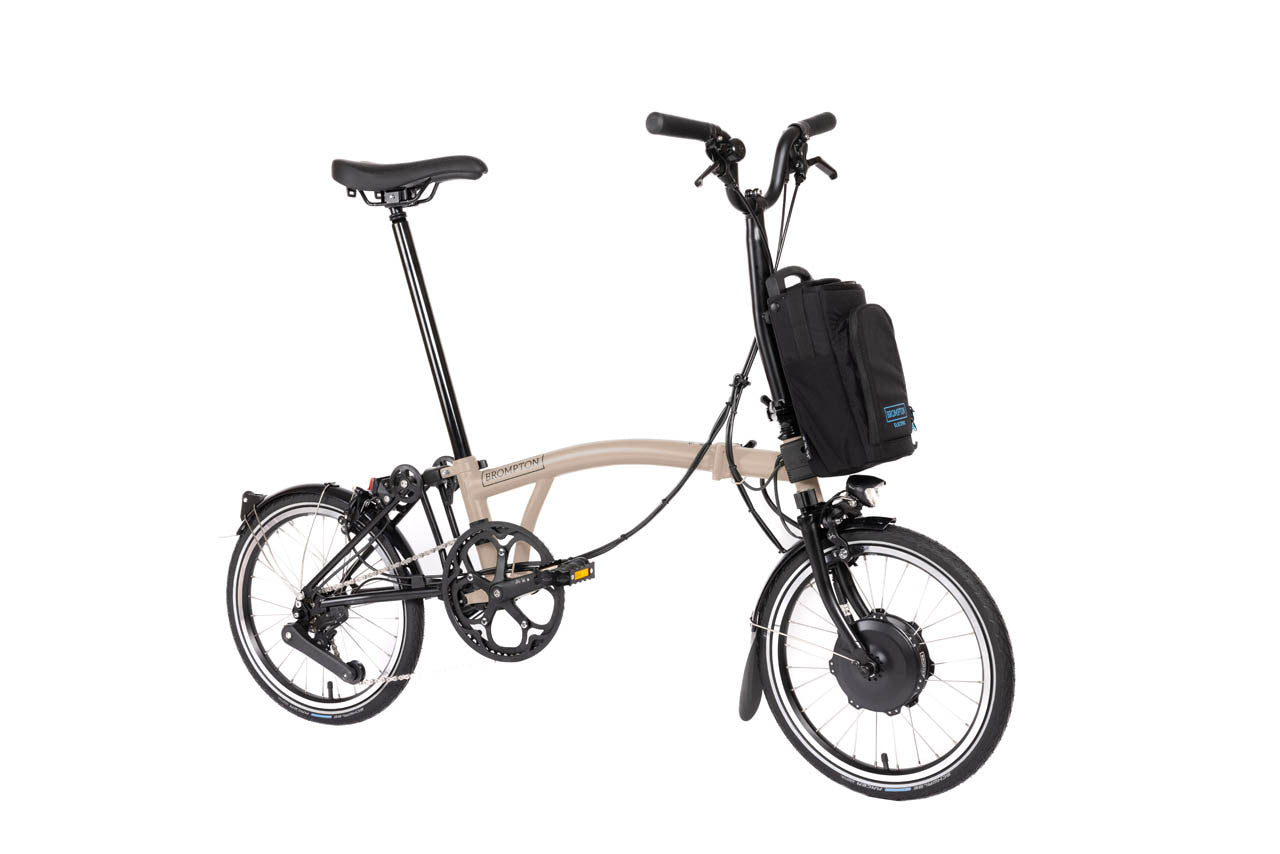

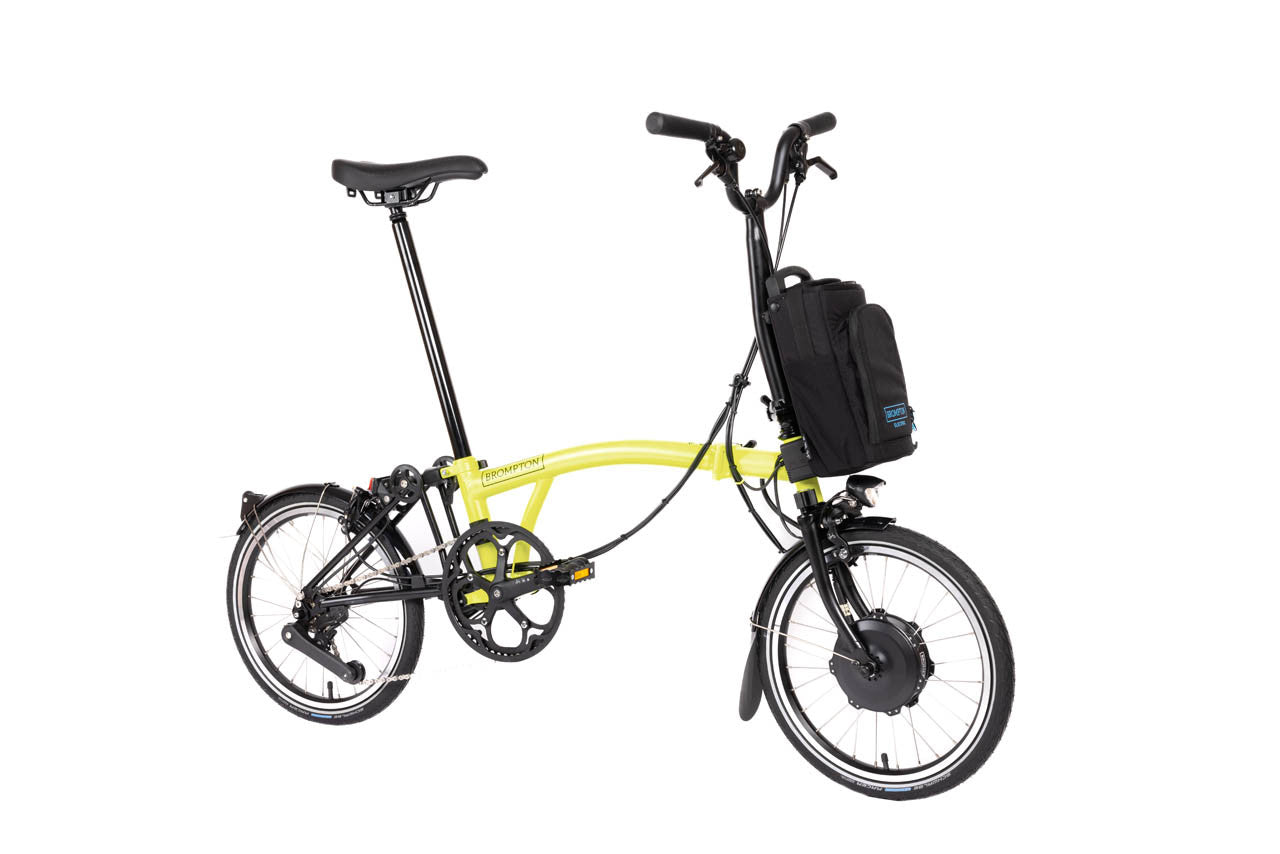

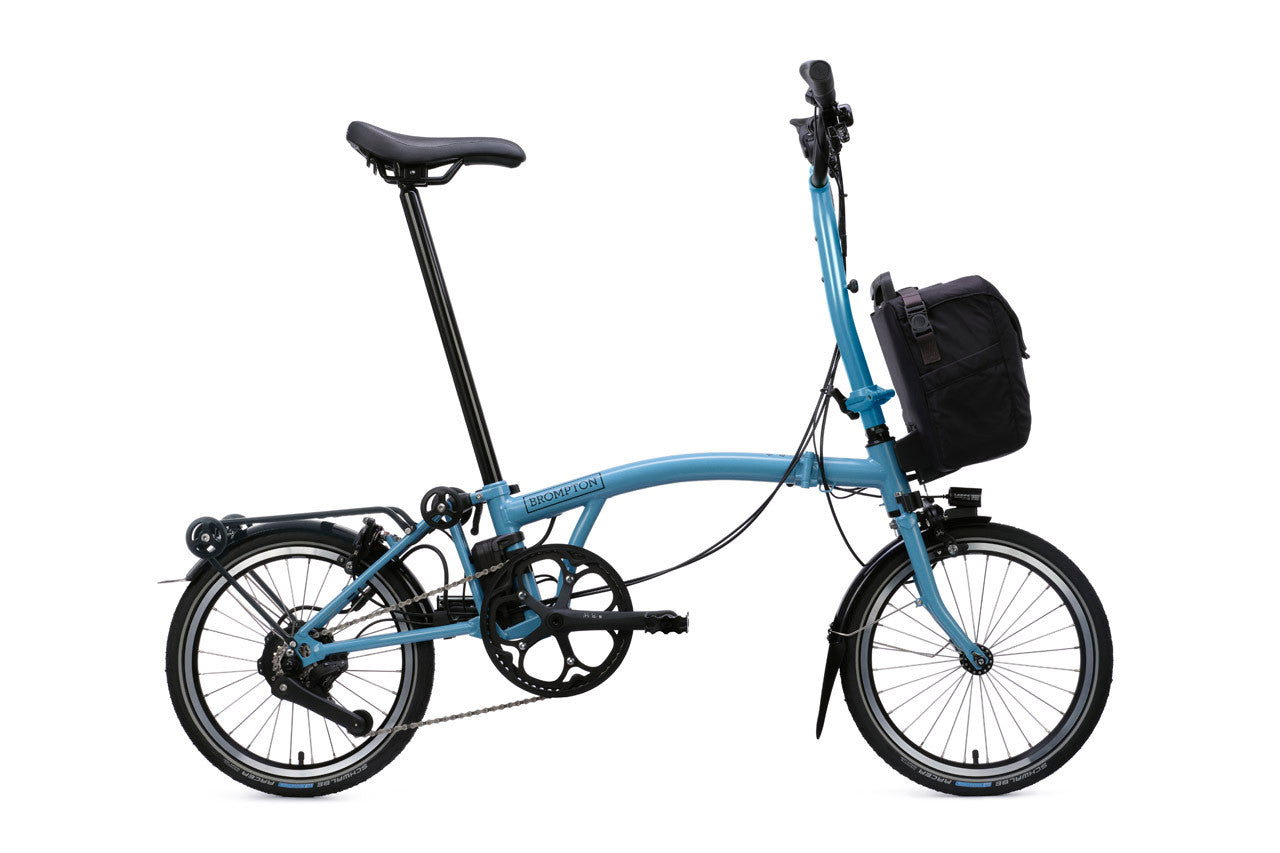

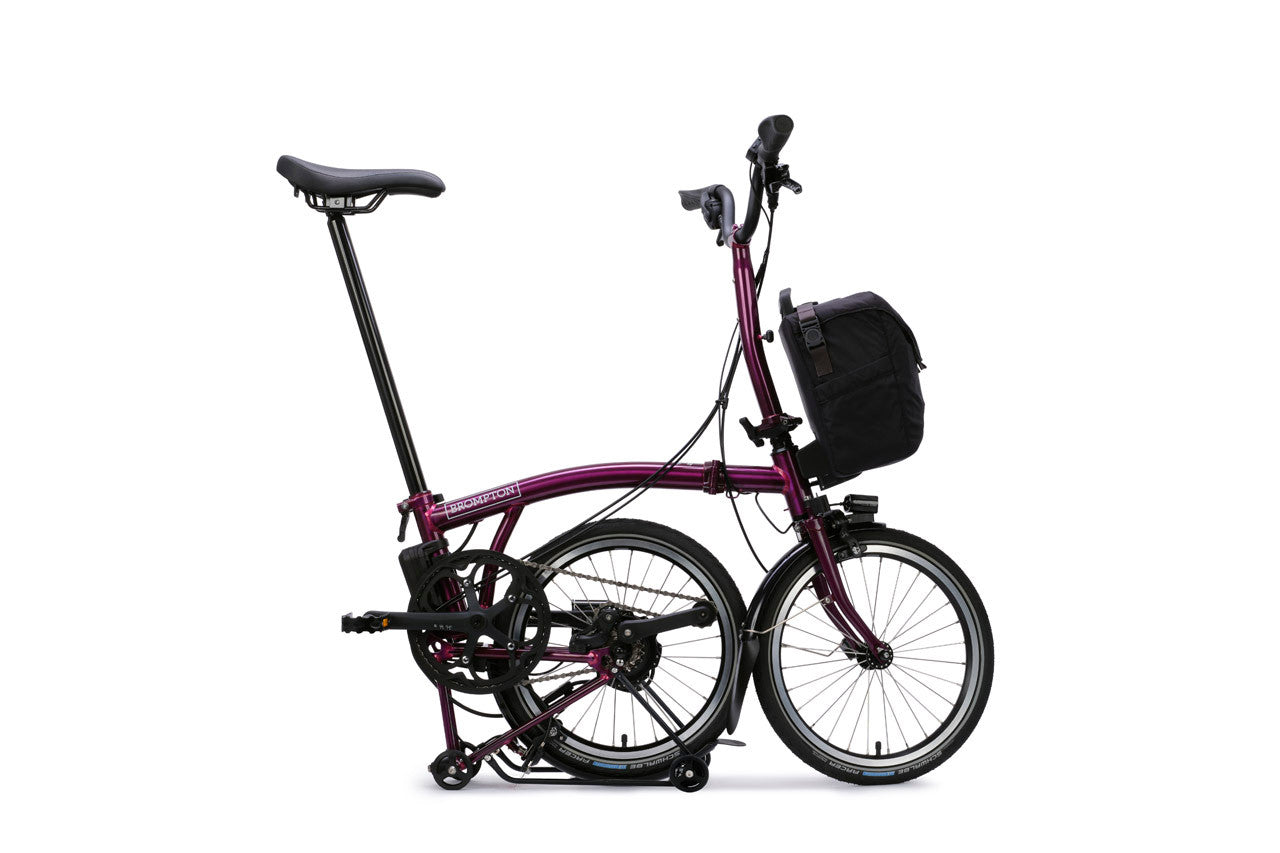

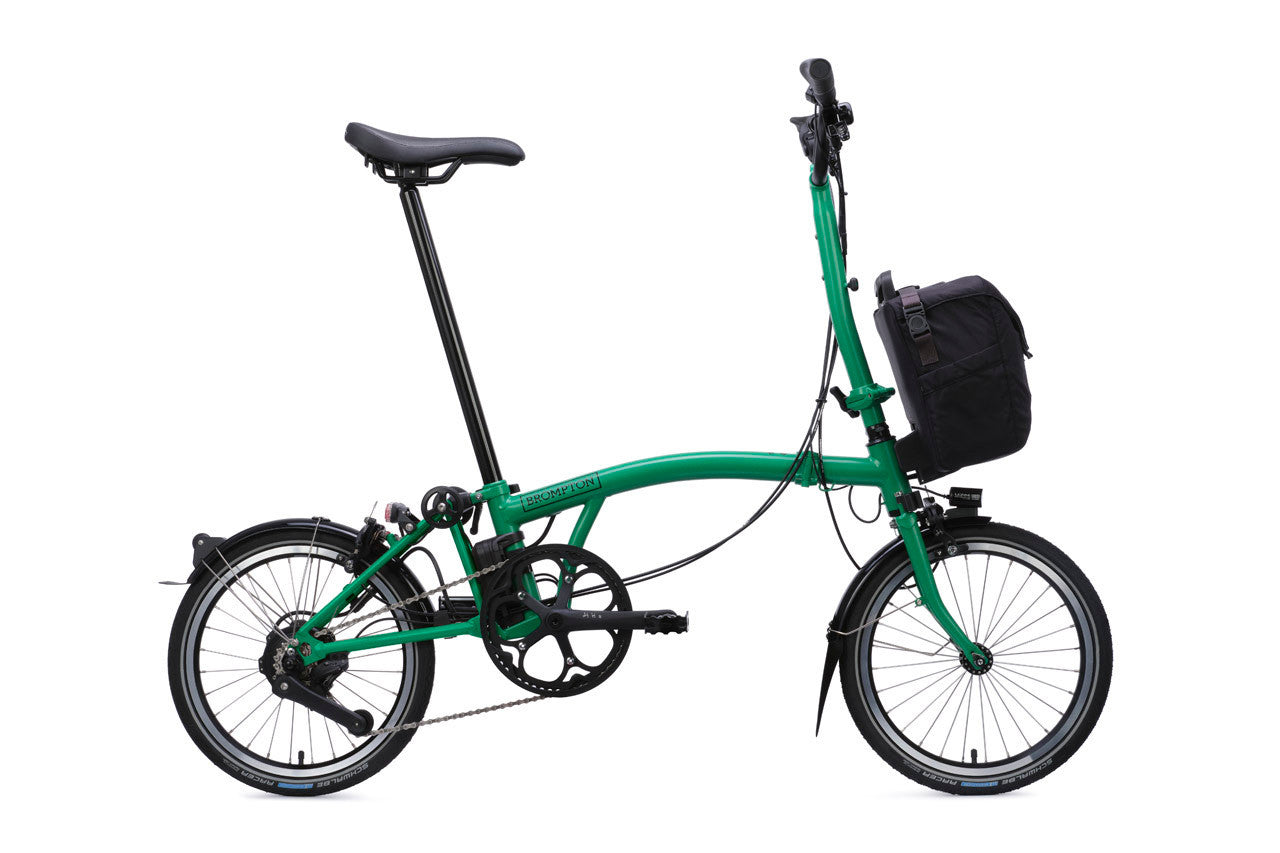

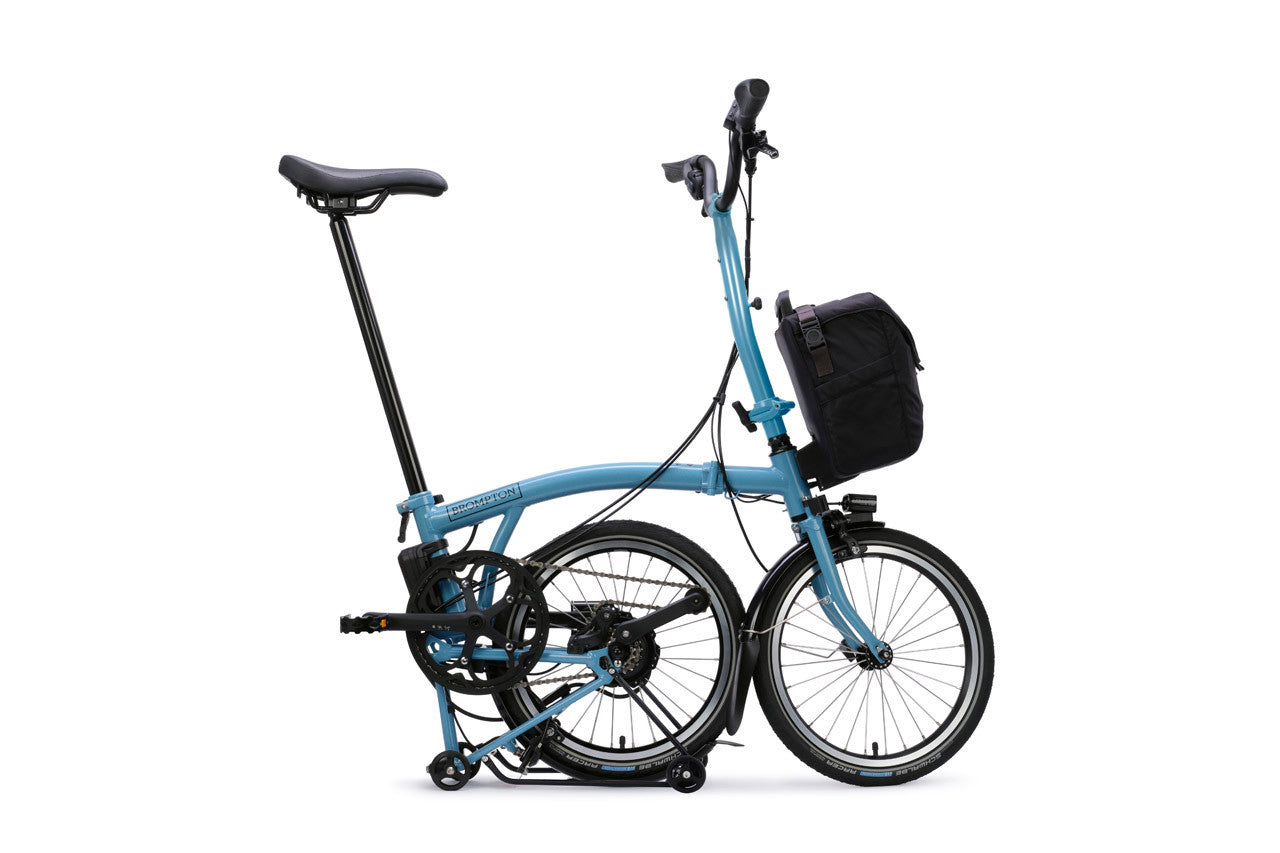

Electric C Line - 4 Speed
The original, all-steel folding bike made to go further with the all-new e-Motiq system. Super portable and powerful
We’ve been unlocking cities around the world,underground and overground, since 1975 – connecting people and places with our famous folding bikes. And for a bike that’s given so much, would it be fair to ask for more? Well, why not? Because we could all use a little help, whether it’s work or play. Here’s the bike you’ve been waiting for.
Hills? Errands? Weekend adventures? With our Smart Pedal Assist, you can go further, faster and even higher. The compact motor does the hard work for you. And when it’s time to go again, rest easy knowing the lightweight battery quickly detaches from its secure mount, so you can take it with you and charge wherever is convenient. With the most compact folding e-bike, you can do it all.
Weight
From 39.5 lb W/ Battery
From 31.4 lb Without Battery
Speed
4 Speed (Urban)
Material
Steel

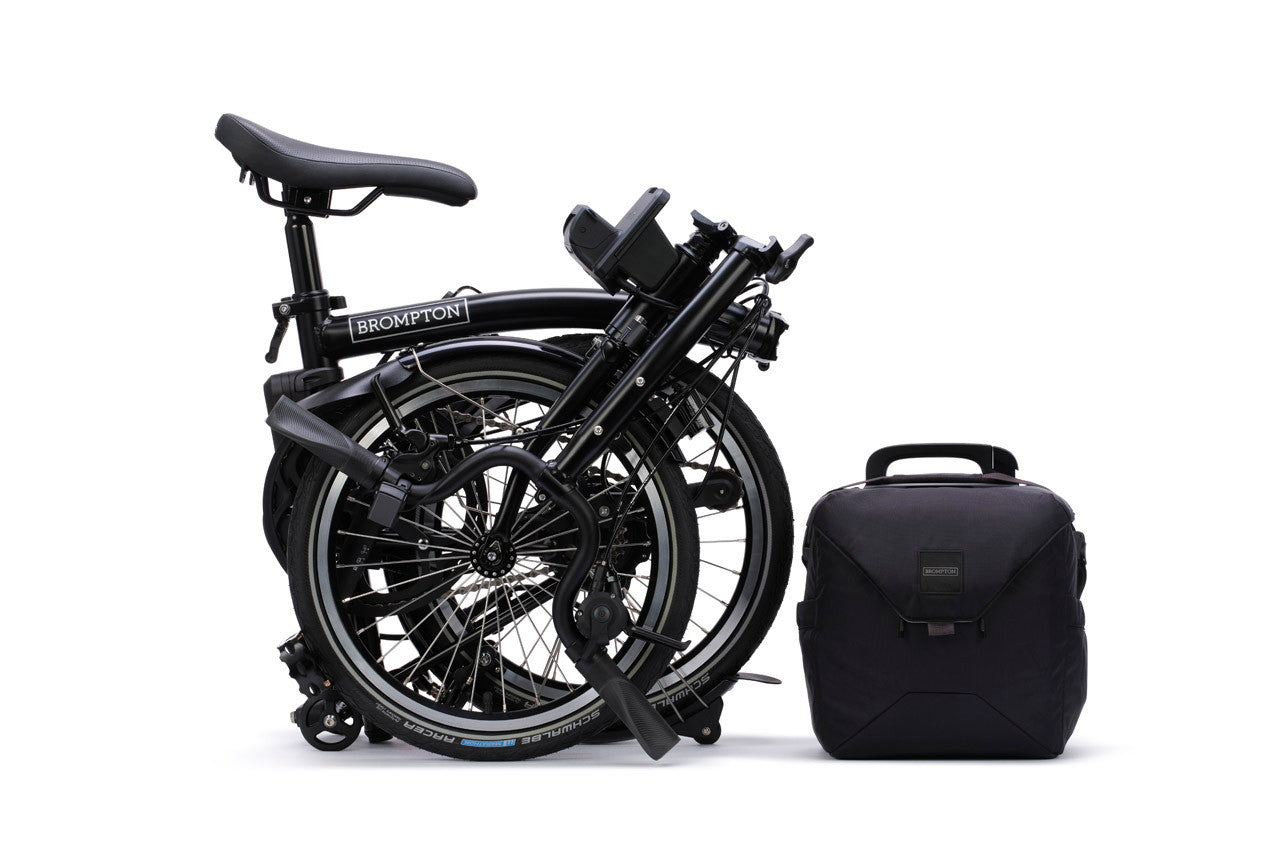

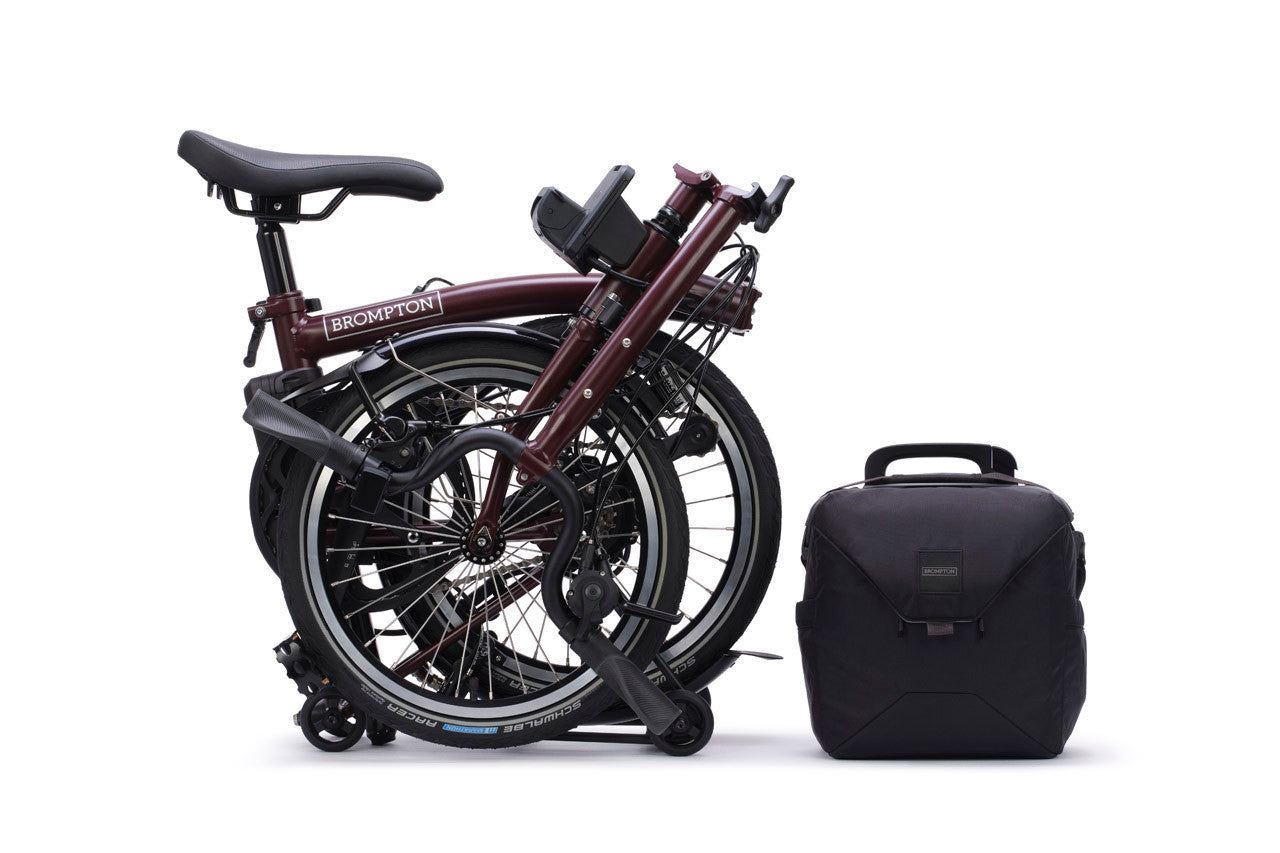

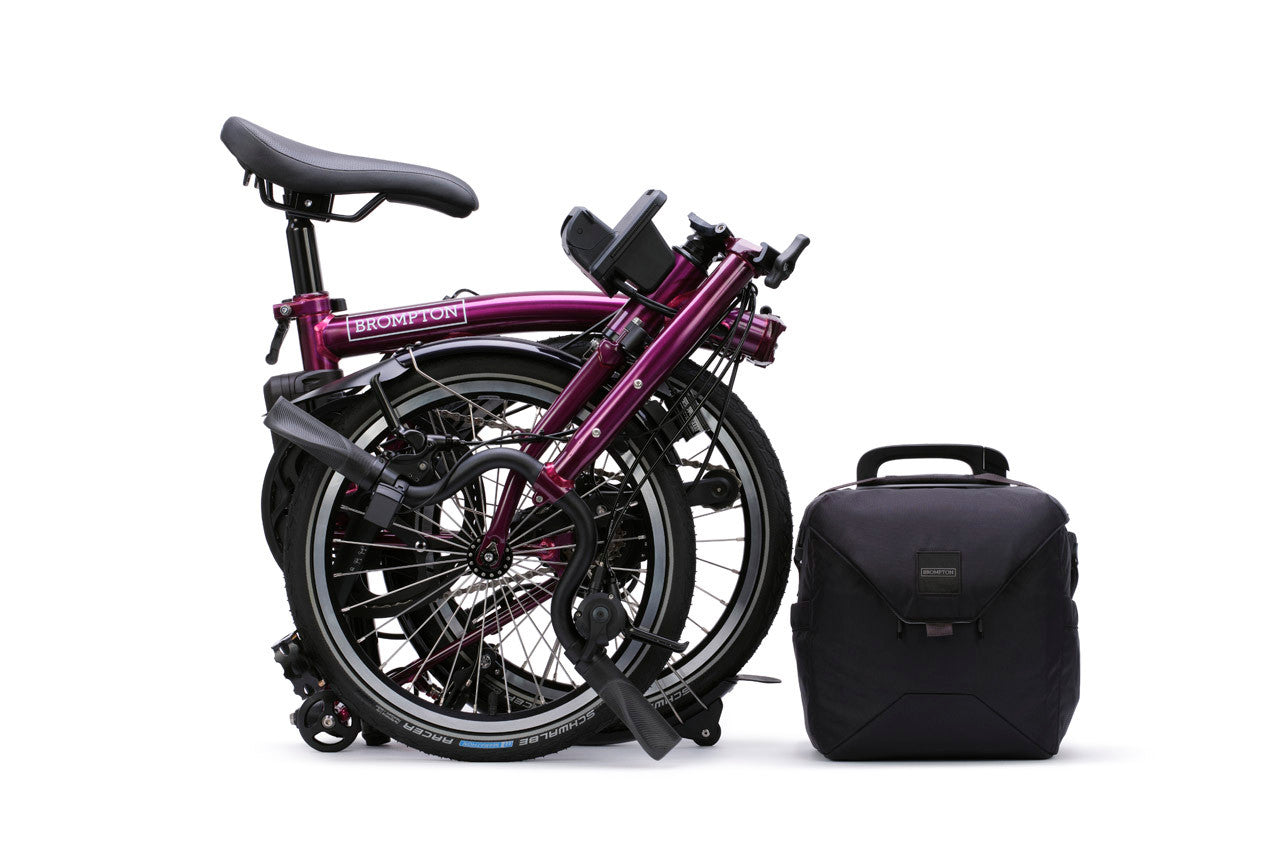

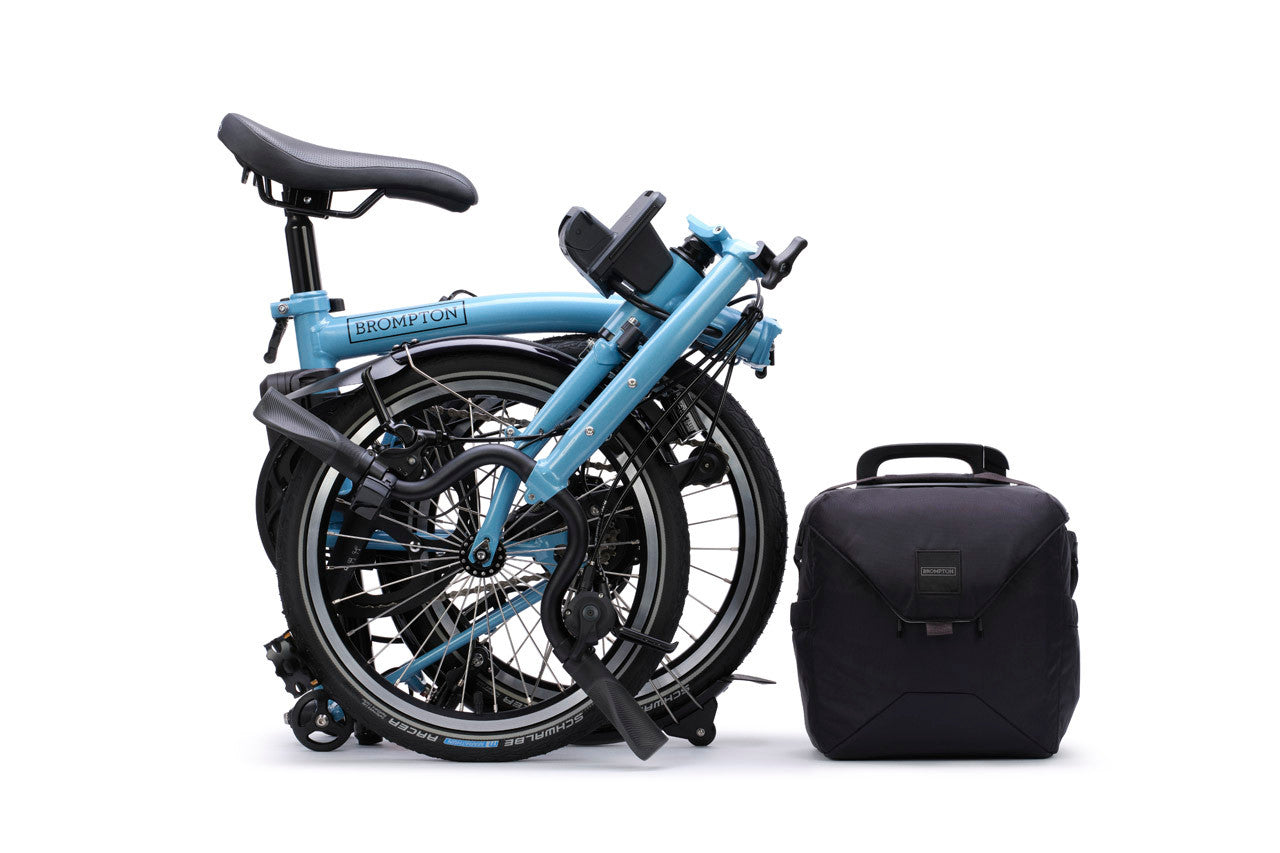

Folded Size
23" x 22.2" x 10.6"
Main Frame
Precision drawn heat-treated steel tubing with hand brazing and selected auto-brazed joints
Rear Frame
Hand brazed cold-formed micro-alloy steel tubing
Fork
Reinforced Electric specific steel brazed fork
Grips
Lock-on grips with soft-compound rubber adhered to an engineered core
Seatpost
Extended, Black (35")
Saddle
Standard
Seatclamp
Composite seat clamp and rear frame clip in matt black finish
Hinge Clamps
Composite hinge clamp levers
Pedals
Brompton Folding left hand and non-folding right-hand pedals
Drivetrain
11-18 Tooth Inline Sprockets
Number of gears
4 Speed - Urban
Chainset
6061 forged aluminium crank with 54T chainring and integrated chainguard
Bottom Bracket
Integrated sealed bearing BB with cadence and torque sensor
Headset
Brompton headset
Shifters
Brompton 2 speed trigger shifter
Sprockets
4 inline sprockets, no hub gear.
Derailleur
Brompton Chain pusher
Rear Wheel
Brompton Rear Motor 24Nm of Torque and 250W of Motor Power
Front Wheel
Double-wall rim, 20 spokes laced to a Brompton front hub
Tires
16" Schwalbe Marathon Racer
Fenders
Included
Lighting
Lezyne e115 stVZO
Rack
Included - SuperRoll+
Brakes
Brompton Dual Pivot Calipers
On Bike Accessories
Zip Bag Small & Bell
Battery
345Wh Greenway - Up to 56 mile range with 5-hour full chargeer
Range
25-56 miles
Luggage
Essentials bag with 1.5L storage Optional: 20L City bag available separately
Connectivity
Brompton Electric iOS and Android apps available for download
How do you know what size of bike you should buy?
A good place to start is using the sizing charts included for each bike on the info page. If you're in the middle of the recommended height range for a specific size then usually that's the correct one to go with. If you find yourself overlapping sizes at either the top or bottom of the height recommendation than sizing up or down could be a consideration.
For more relaxed fitting "city-style" bikes sizing is less crucial because often they will have adjustable stems and offer more overlap in sizing. Smaller bikes will be slightly easier to manage when starting and stopping while larger bikes will feel more stable when riding. Most often we recommend sizing down in this category.
Bikes that have a more aggressive riding position i.e. road, gravel and mountain bikes sizing is more important. In these categories we usually look closely at 3 numbers, reach, stack, and top-tube length.
