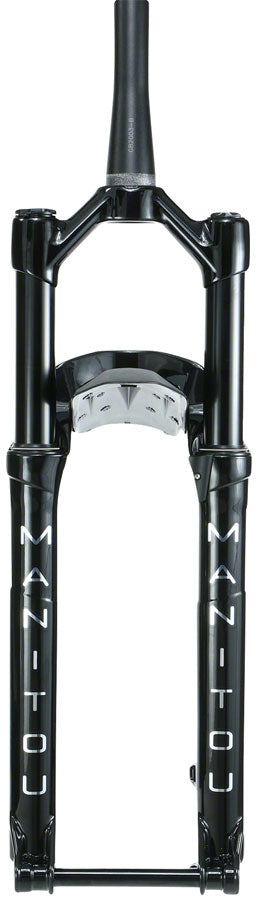

The R7 Expert is a fast XC racing fork that can hang with the trail riding crowd. A stiff light 32mm-stanchion chassis and the VTT damper deliver maximum terrain sensitivity in rocky rutted sections and maximum efficiency during all-out pedaling efforts.
32mm black anodized stanchionsExpert Air SpringVTT Damper w/ three-position compression and rebound adjustabilityHexLock SL thru-axle provides a strong wheel connection while remaining one of the simplest wheel removal/installations possibleLow-friction dust sealsReverse-arch casting
| Steerer Type |
Tapered |
| Defined Color |
Black |
| Positive Spring |
Air |
| Wheel Size |
29" |
| Offset |
44 |
| External Adjustments |
Rebound Damping |
| Color |
Matte Black |
| Lockout Switch |
None |
| Negative Spring |
Air |
| S.H.I.S. Stem Clamp Diameter |
28.6 |
| Travel (mm) |
120 |
| Steerer Tube Length (mm) |
251 |
| Stanchion Diameter |
32 |
| Axle to Crown Length |
525 |
| Crown Race |
40 |
| Front Axle |
15mm Thru x 110mm |
| Maximum Tire Width |
68 |
| Brake Type |
Post Mount 160 |
