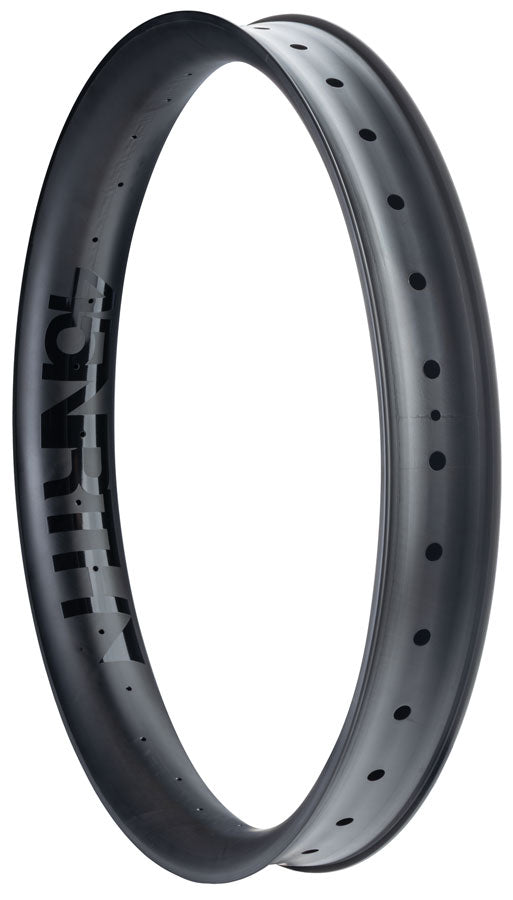

Levitas was designed around the unique characteristics of 45NRTH fat bike tires. The internal widths are tailored for each diameter to create a broad well-supported tire profile that maximizes flotation traction and control for the most demanding winter conditions. A narrower spoke bed reduces weight where possible while reinforced rim walls provide strength and impact resistance.
32-hole drill pattern for strong wheel buildsOptimized relationship between tire volume and rim width for consistent contact patch and tire profileFits 4-5" wide tiresRecommended single layer of 30mm rim tape. Recommended valve length 65mm (or longer)Tested to ASTM Category 3 suggested weight limit of 300 lbsMax inflation 30 psi
| Brake Compatibility |
Disc Only |
| Rim Width (External) |
83 |
| Rim Width (Internal) |
76 |
| Brake Track |
None |
| Manufacturer Spec ERD (mm) |
535.57 with washers |
| Material |
Carbon |
| Valve |
Presta Long 56-74mm |
| Color |
Matte Carbon |
| Weight |
660 |
| Wheel Size |
27.5" Fat |
| Defined Color |
Black |
| ISO Diameter |
584 / 650b / 27.5" |
| Eyelets |
None |
| Tire Intended Use |
Fat Bike |
| Hub Drilling |
32 |
| Rim Joint |
Carbon |
| Rim Depth (mm) |
35 |
| Rim Material |
Carbon |
| Tire Type |
Tubeless Ready |
