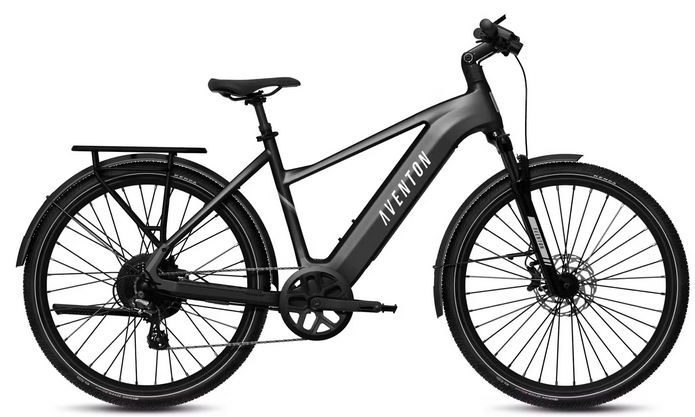

Aventon Level 3 Step Over

Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3.

General Info

Model: Level 3 Step Through Commuter Ebike

Weight: 67lbs

Total Weight Limit: 300 lbs

Rider Height: 4'11" - 6'1"

Ebike Class: Class 2 Ebike

Water Resistance: IPX4

Range: Up to 70 Miles

Battery Safety Certifications: Certified to UL 2271

Safety Certifications: UL Safety Certified
UL 2849

Ideal Use: Commuting

Pedal Assist: 3 Levels (with Ride Tune Customization)

Frame: 6061 Aluminum, Gravity Cast Front Triangle

Fork: Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset

Frame Style: Step-Over

Ebike System

Motor: 36V, 500W (sustained), 864W (peak)

Motor Torque: 60Nm

Display: Aventon BC280

Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

Battery Weight: 8.7lbs

Controller: 36V, 24A

Throttle: Aventon LH Handlebar Mounted

Sensors: Double Sided Bottom Bracket Torque Sensor

Charger: 36V Output: 42V/ 4A

Charging time from 0% to 100%: 5 hours

Lights: Front and rear lights integrated

Speed: Class 2

Components

Front Brake: Magura AT-2 Hydraulic disc brake

Rear Brake: Magura AT-2 Hydraulic disc brake

Front Brake Rotor: Magura MDR-A 180mm 6 Bolt Rotor

Rear Brake Rotor: Magura MDR-A 180mm 6 Bolt Rotor

Rear Derailleur: Shimano Altus RD-M310

Shifter: Shimano 8 Speed Trigger SL-M315-8R

Chain: 7/8 speed 120L

Cassette: 12-32T / 8 Speed Shimano CS HG200-8

Chainring: 48T

Bottom Bracket: Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm

Pedals: 9/16" Composite Platform

Saddle: Aventon Saddle

Seatpost: 30.9mm Aventon Suspension Seatpost with 50mm travel

Seatpost Clamp: 34.9mm

Handlebars: Aluminum 31.8mm, 680mm

Grips: Aventon Lock on grips

Rear Rack Weight Limit: 60lbs

Technical Overview

The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.
