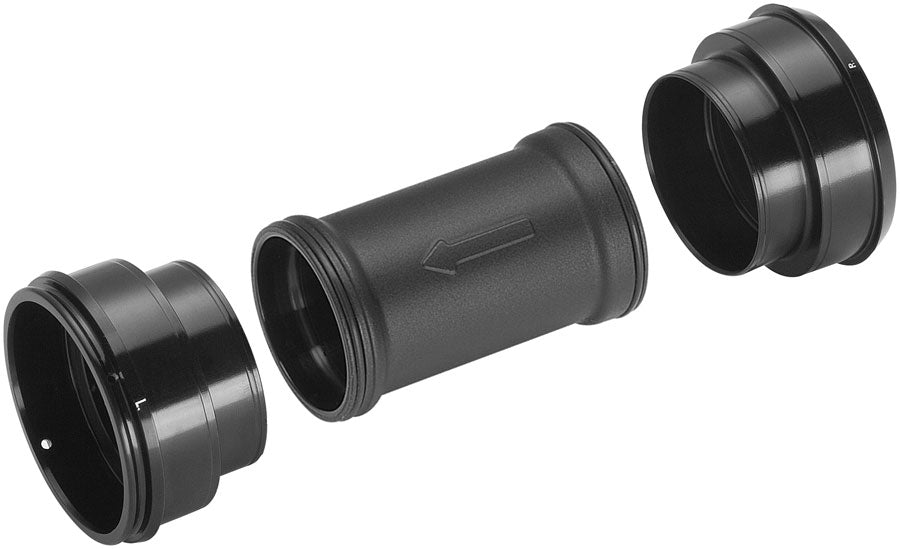

The new Super Record bottom bracket has been redesigned from scratch to provide faster more intuitive and more precise assembly thanks to the proprietary QCK-Tech (Quick Tech) technology. This advanced system integrates a patented external seal designed to effectively protect the ball bearings from external agents such as water mud and sand. The QCK-TECH cups house oversize stainless steel bearings fitted directly onto the Ultra-Torque semi-axles firmly integrated into the cranks (Super Record 13 crank that's sold separately). The result is superior structural rigidity and direct reactive power transmission faithful to the high-performance DNA of the Super Record groupset.
System integrates a patented external seal designed to effectively protect the ball bearings from external agents such as water mud and sandThe central tube made of polyamide reinforced with fiberglass guarantees impeccable watertightness preventing any contamination insidePlease note: The oversized stainless steel bearing are integrated with the Ultra-Torque semi axles on the Super Record cranksetSuperior structural rigidity and direct reactive power transmission faithful to the high-performance DNA of the Super Record groupsetCompletely redesigned structure to facilitate simple fast and intuitive assembly of the groupset
| Bottom Bracket Shell I.D. |
42 |
| BB/Frame Interface |
BB30 |
| BB Shell Width (mm) |
68 |
| Weight |
83 |
| Spindle Interface Type |
Campagnolo Ultra-Torque |
| Defined Color |
Black |
| keyword search |
Super Record 13 |
