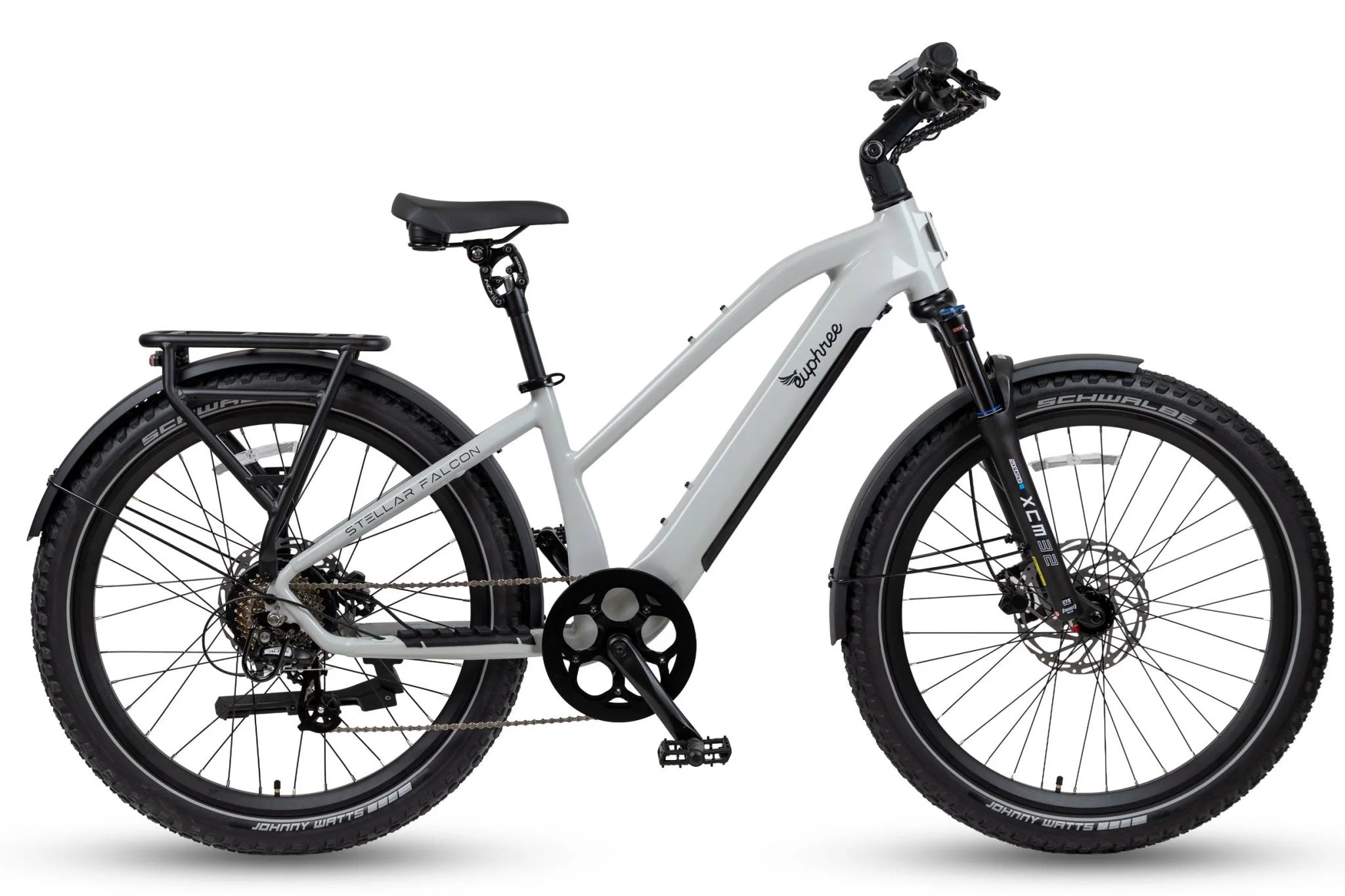

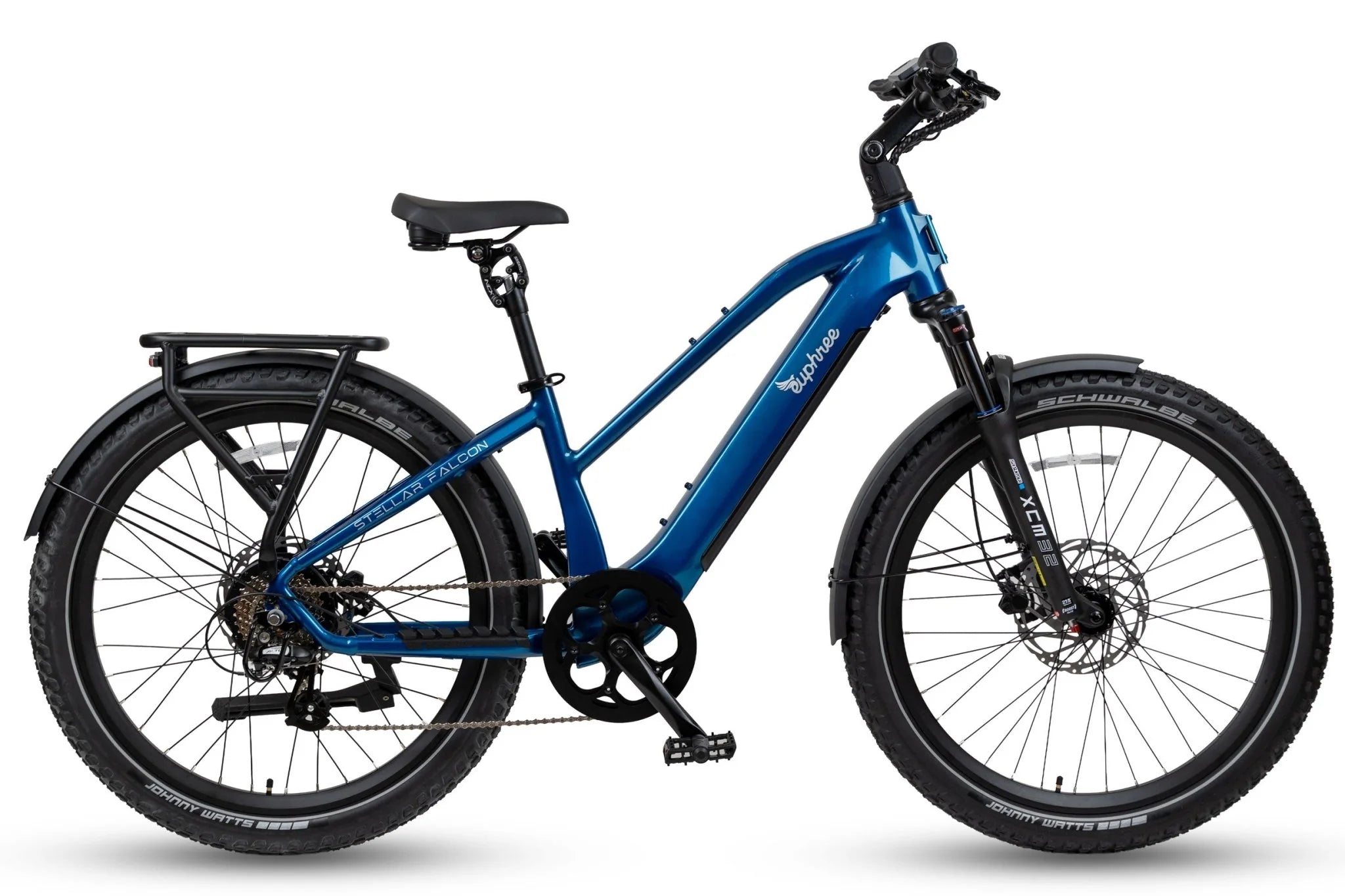

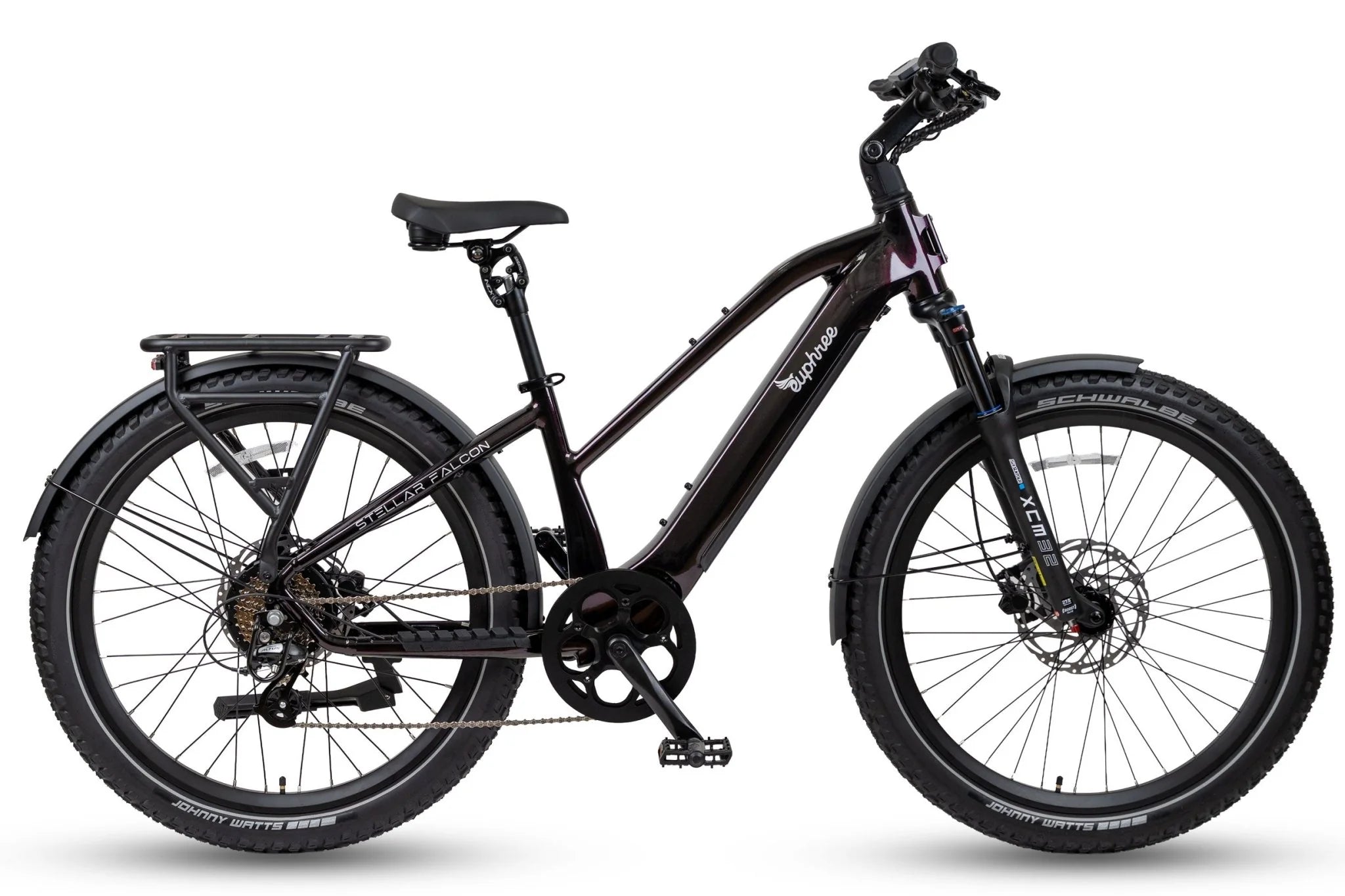

Designed for riders who want no bounds and total control — whether on a trail, commuting or enjoying weekend rides. The Stellar Falcon is built with premium name-brand components and backed by real support from Houston, Texas.
Technical Specifications
-
Range: Up to 70 miles
-
Speed: 28 mph (Class 3)
-
Weight: 74 lbs
-
Frame: 6061 Aluminum Alloy
-
Capacity: 350 lbs (rider + cargo)
-

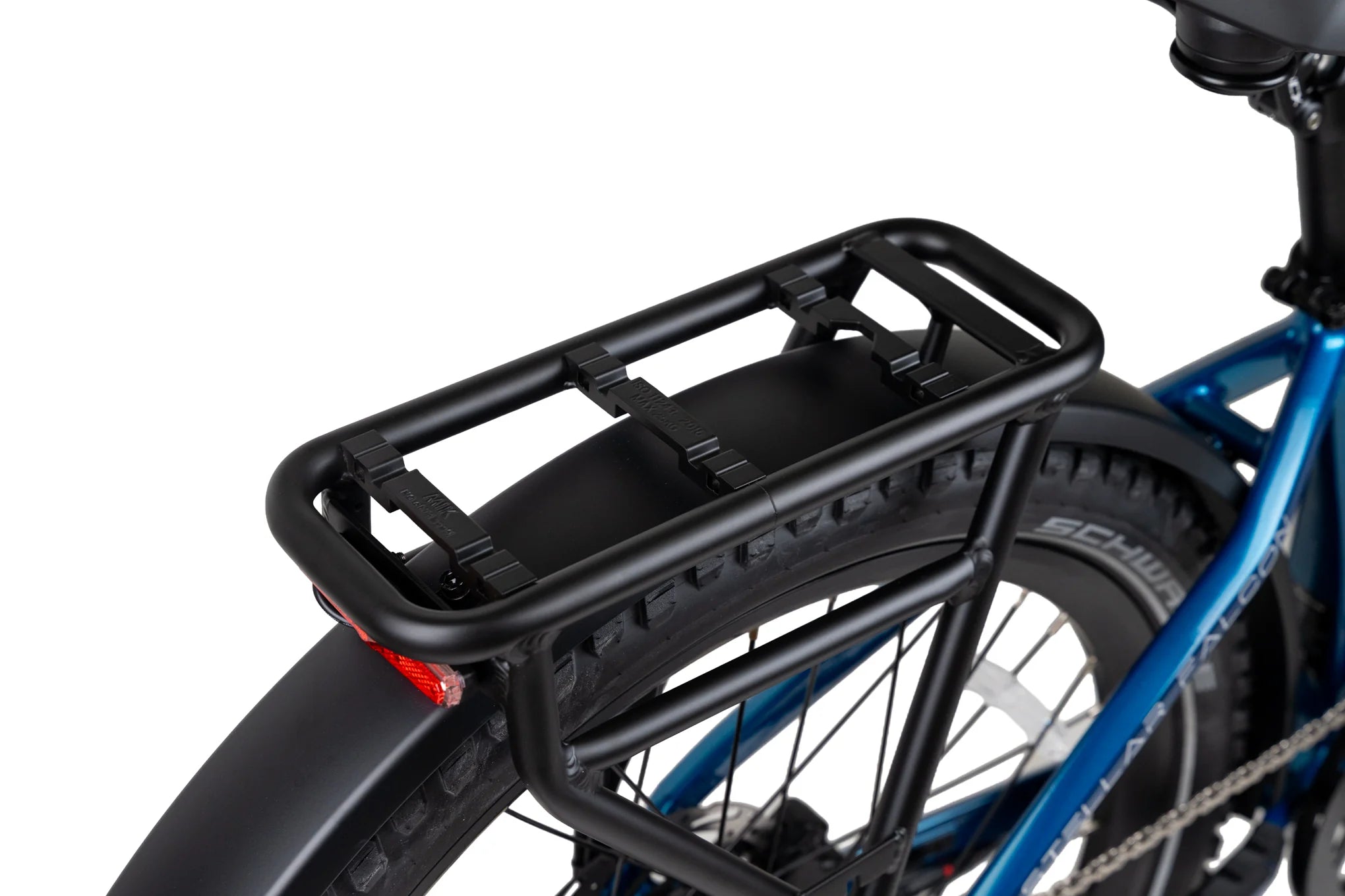

Rear Rack: Integrated, 100 lb capacity
-
Fenders: Full aluminum
-
Certifications: SGS Certified to UL 2849
Drivetrain
-

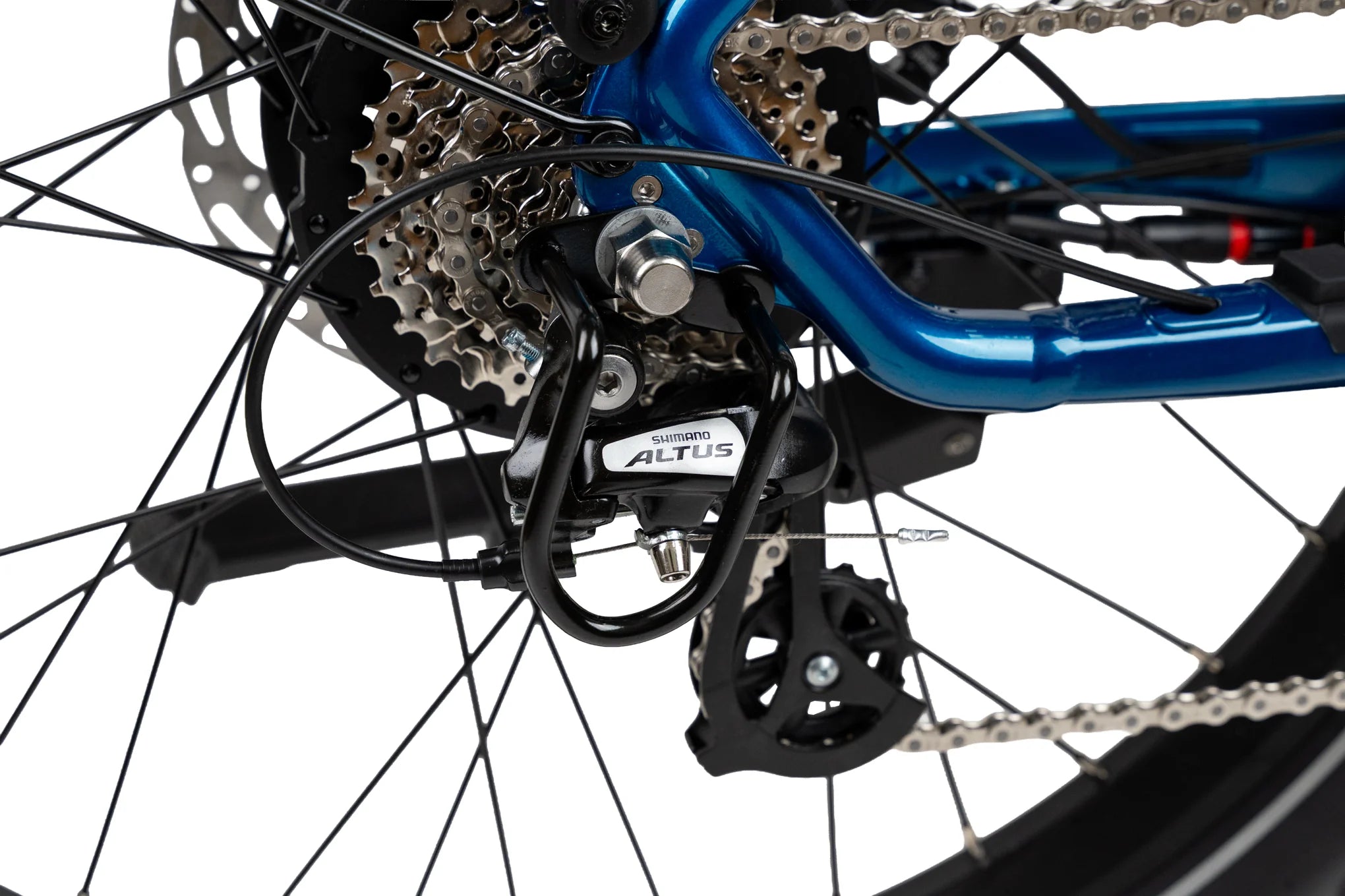

Derailleur: Shimano Altus, 8-speed
-
Freewheel: 10-32T
-
Chain: KMC Z7 Stainless Steel
-
Crankset: 170mm Alloy, 50T Chainring (double guard)
-
Pedals: Alloy w/ rubber grips
Front Suspension
-

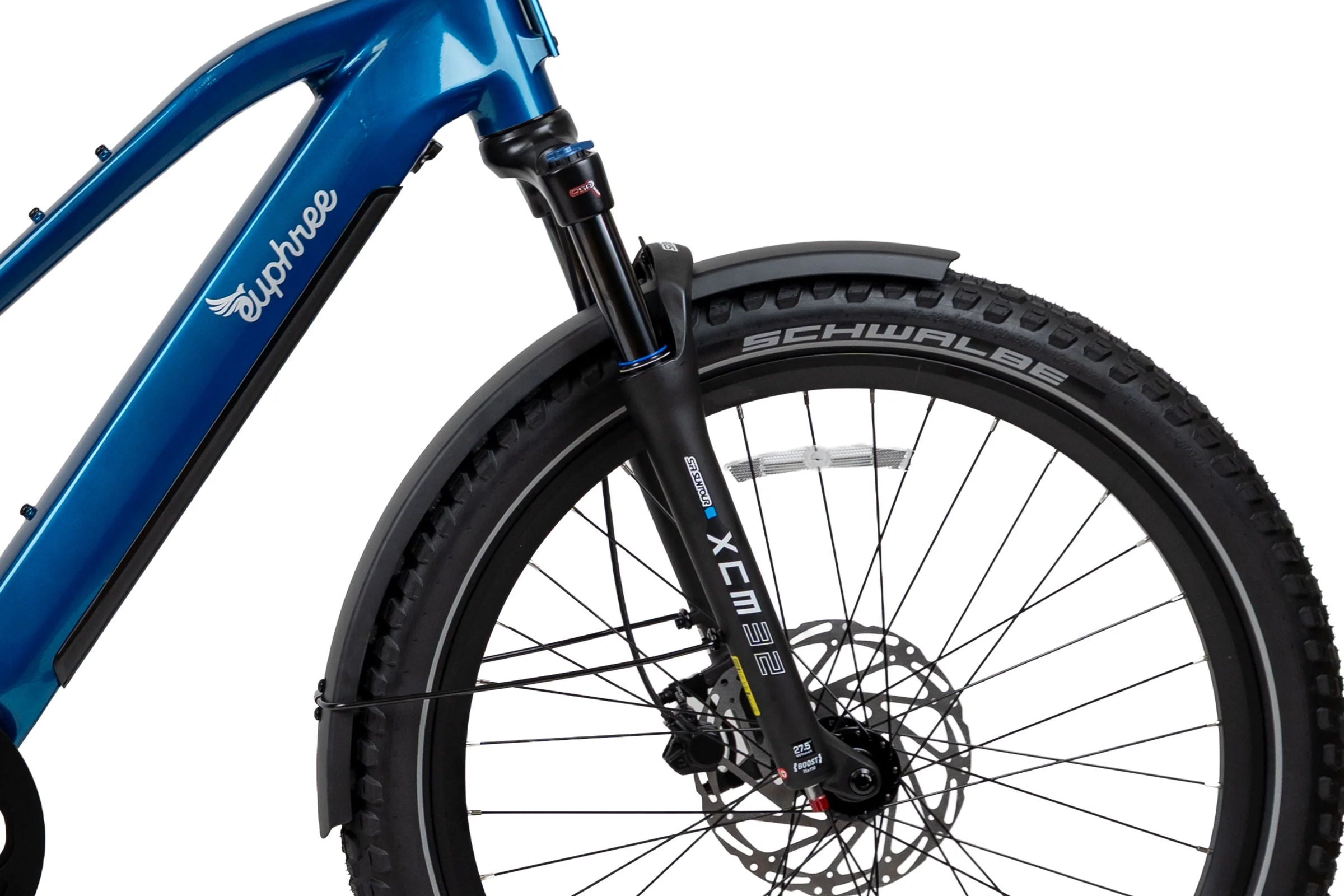

Front Fork: SR Suntour XCM 32 Air, 90mm travel
-
Tires: Schwalbe Johnny Watts 27.5 x 2.8"
-
Rims: Double-walled aluminum
-
Spokes: 13G Front / 1G Rear
-
Front Hub: Thru-Axle
Electronics
-
Motor: 750W Bafang H560 Geared Hub Motor
-
Battery: 48V, 15Ah (720Wh)
-
Controller: Custom 48V / 25A in-frame
-
Display: Left-Side Color LCD
-
Throttle: Left thumb throttle
-
Lighting: 200-lumen dual beam headlight + integrated rear brake light
Brakes
-
System: Tektro HD-E350 Hydraulic
-
Rotors: 203mm Front & Rear
-
Levers: Adjustable w/ motor cut-off
