Your Everyday Comfort Ebike . Built for Miles of Smiles
A lightweight step-through commuter with full suspension, name-brand components, and SGS-certified safety. Ride farther, with less strain on your back, wrists, and knees.
Technical Specifications
General Information
- Range: Up to 60 miles
- Speed: 28 mph (Class 3)
- Weight: 64 lbs
- Frame: 6061 Aluminum Alloy, Step-Thru
- Capacity: 350 lbs (rider + cargo)

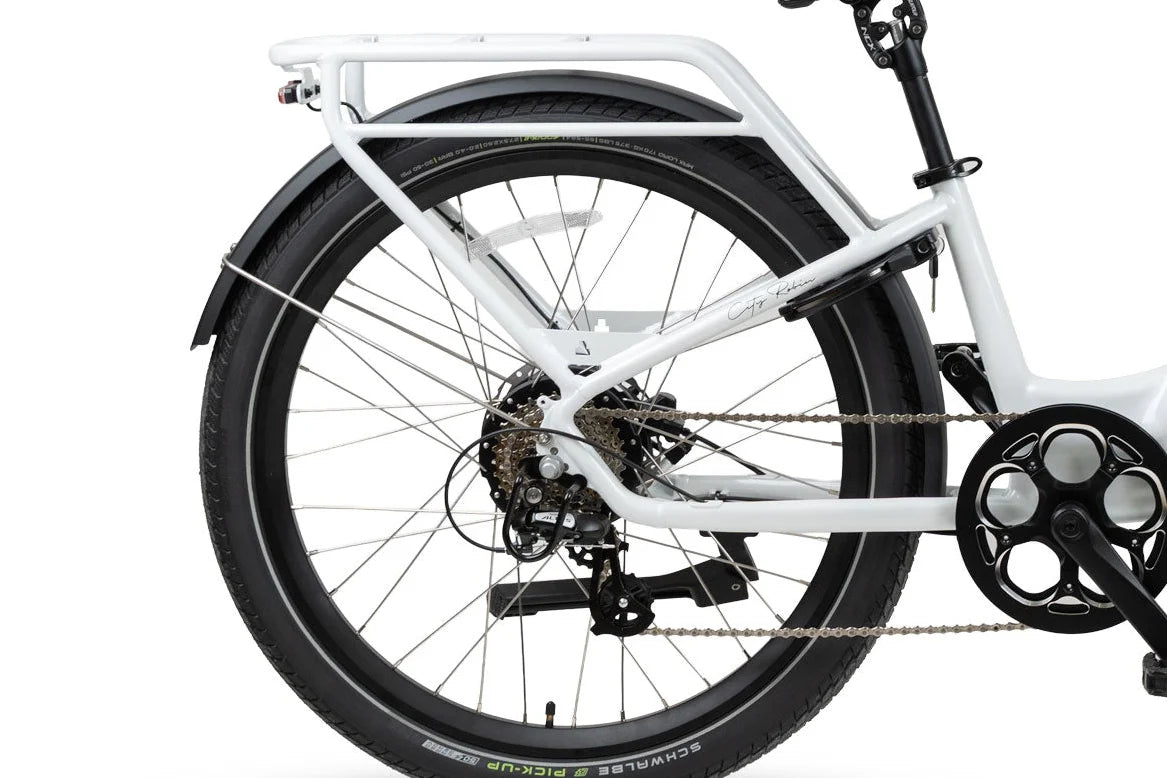

- Rear Rack: Integrated, 100 lb capacity
- Fenders: Full aluminum
- Certifications: SGS Certified to UL 2849

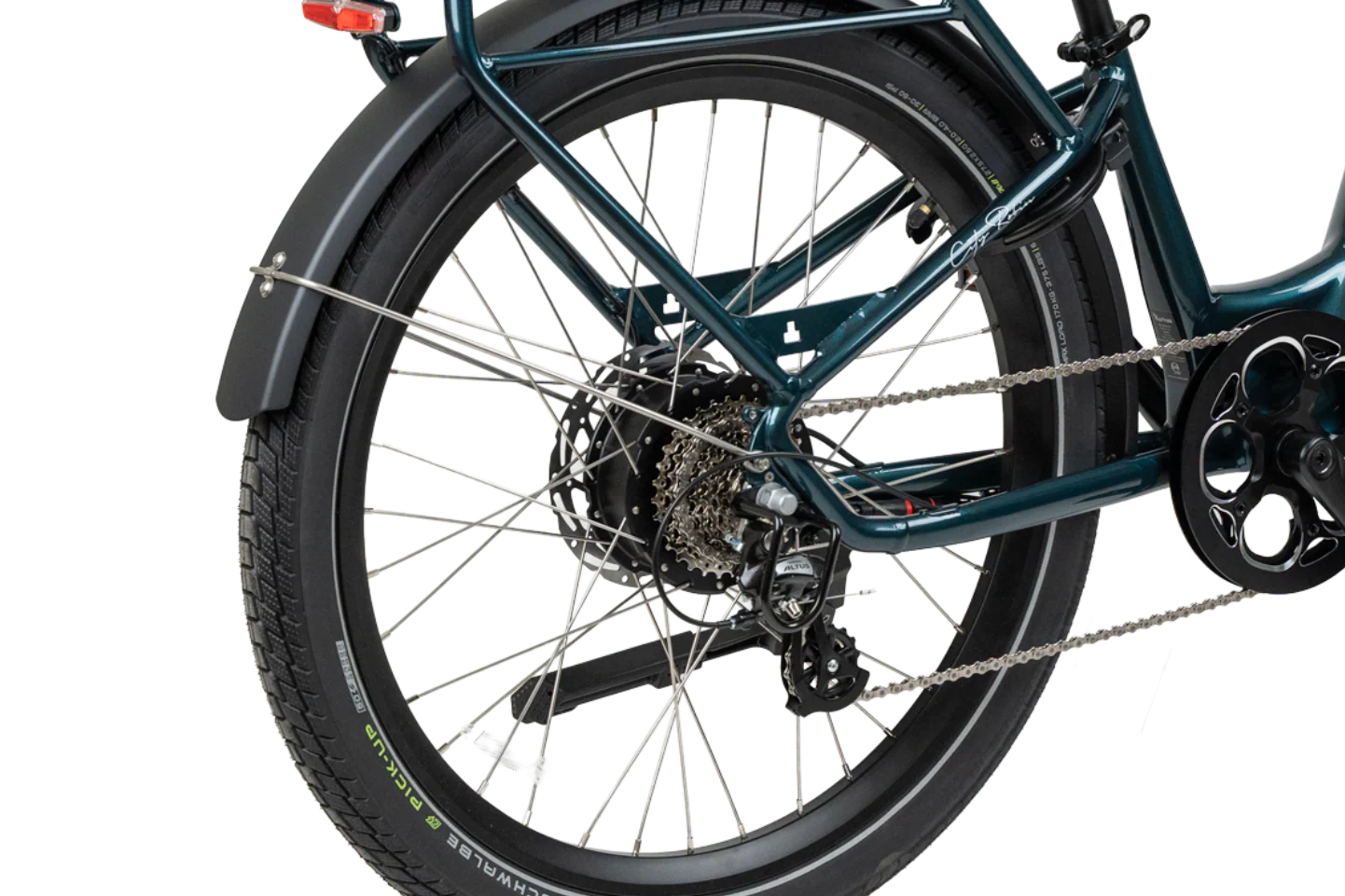

Drivetrain
- Derailleur: Shimano Altus, 7-speed
- Freewheel: 11–28T
- Chain: KMC Z7 Stainless Steel
- Crankset: 170mm Alloy, 50T Chainring (double guard)
- Pedals: Alloy w/ rubber grips
Front Suspension

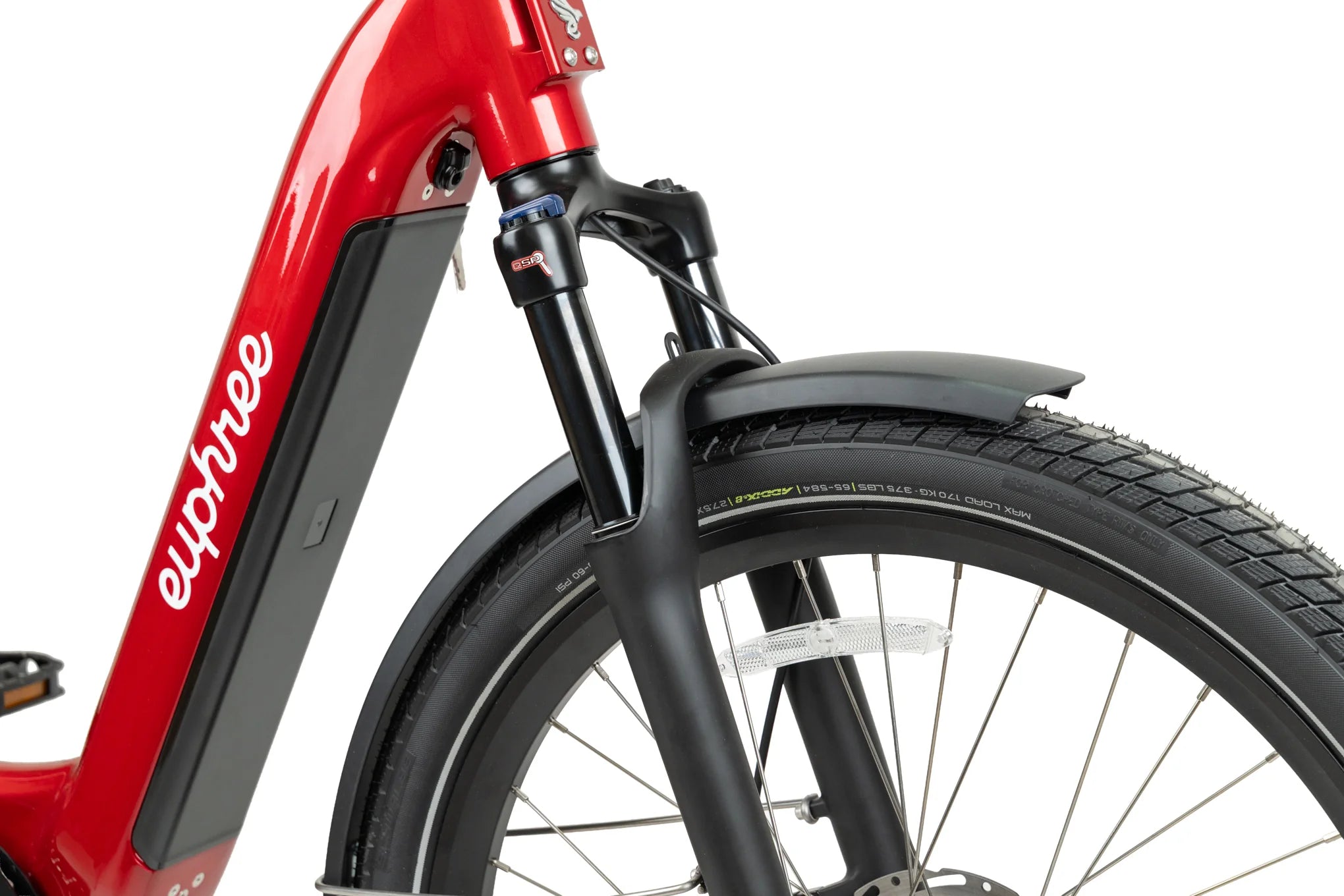

- Front Fork: SR Suntour XCM 32, 100mm travel

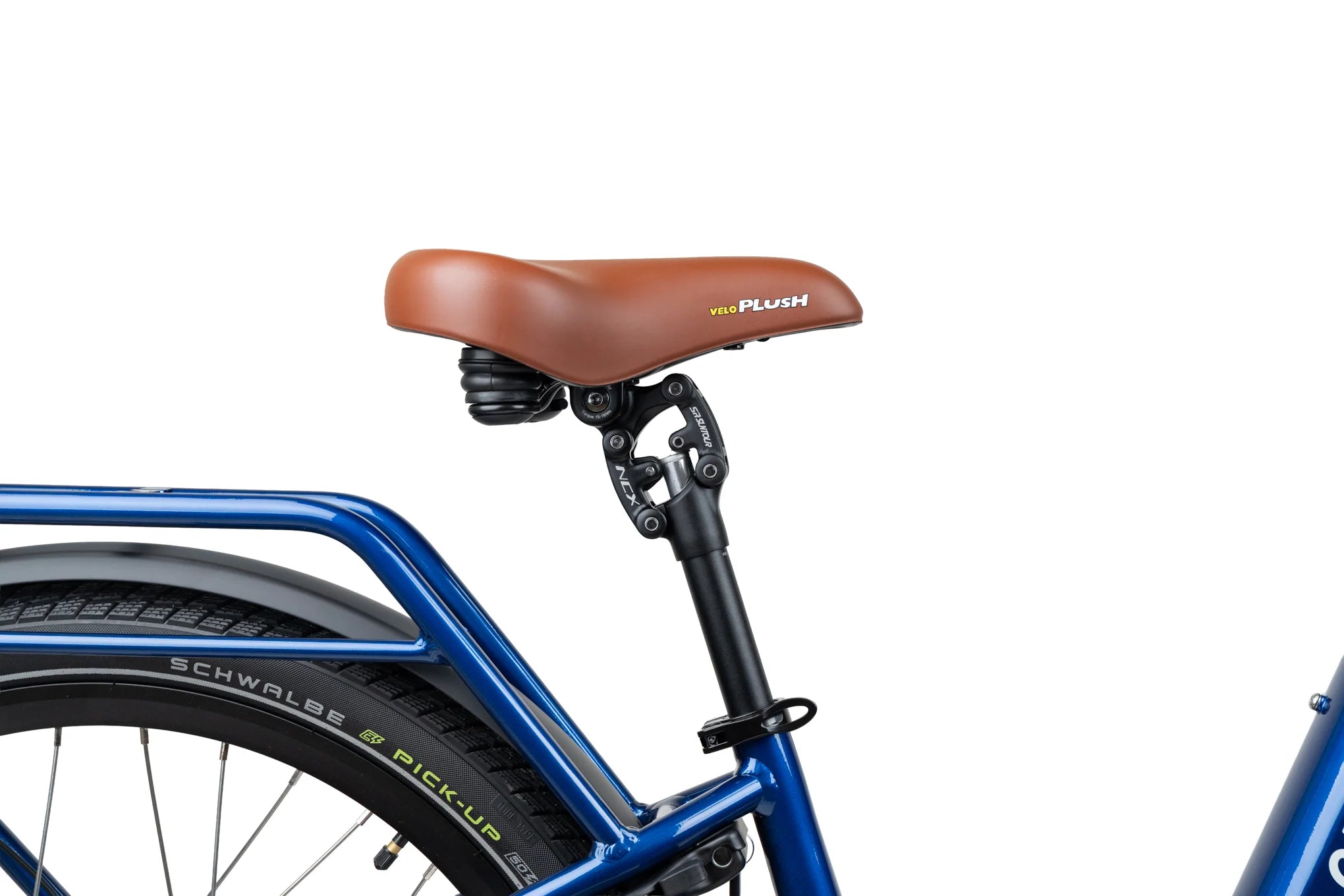

- Seatpost: SR Suntour NCX Suspension
- Tires: Schwalbe Super Moto X 27.5 x 2.4”
- Rims: Double-walled aluminum
- Spokes: 12G Front / 12G Rear
- Front Hub: Thru-Axle
Electronics
- Motor: 500W Bafang Geared Hub
- Battery: LG 48V 14Ah (672Wh)
- Controller: Custom 48V / 20A in-frame
- Display: Left-side Color LCD w/ USB-C
- Throttle: Left thumb throttle
- Lighting: 200-lumen dual beam headlight + integrated rear brake light
Brakes
- System: Tektro HD-E350 Hydraulic
- Rotors: 180mm Front & Rear
- Levers: Adjustable w/ motor cut-off
