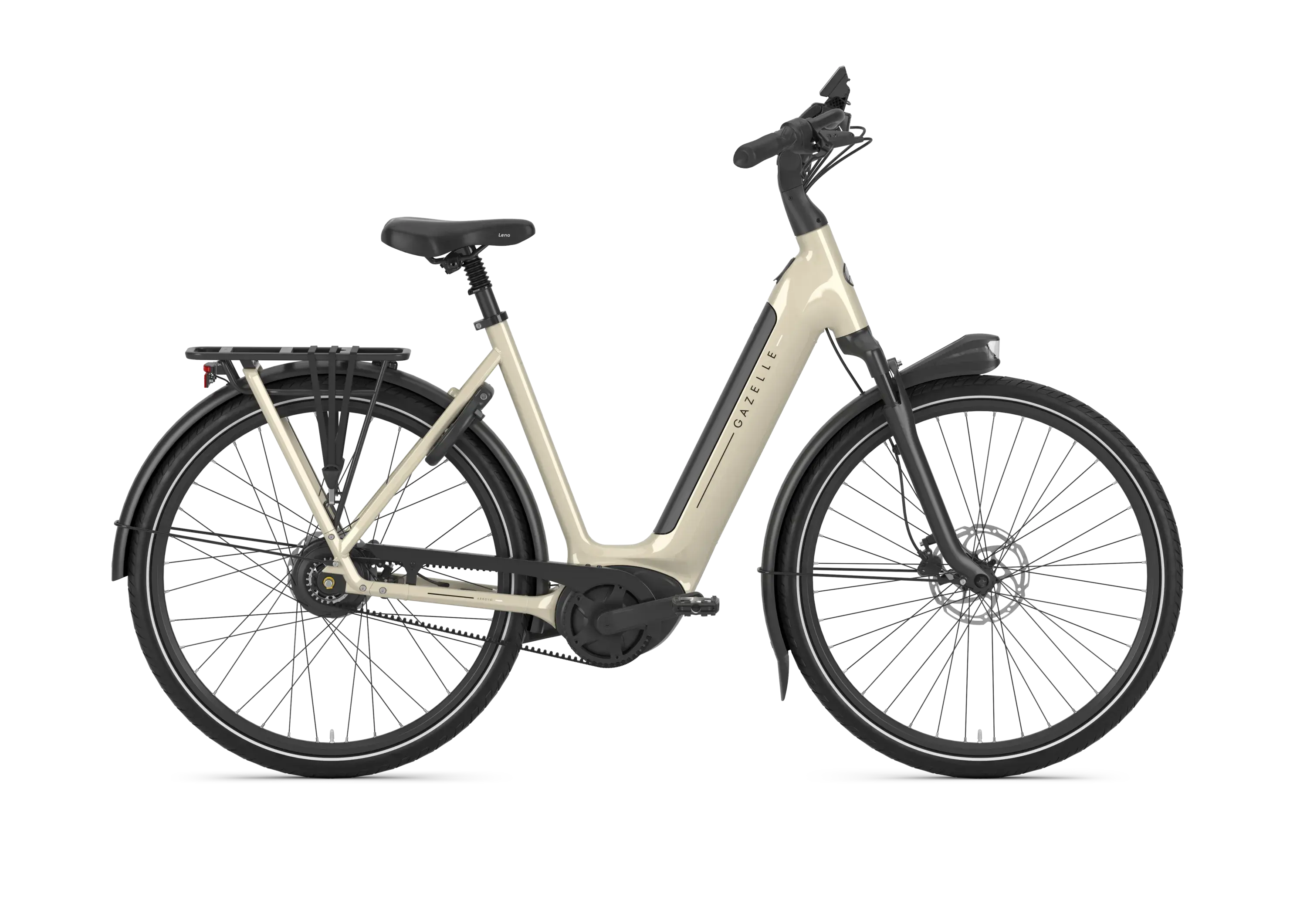

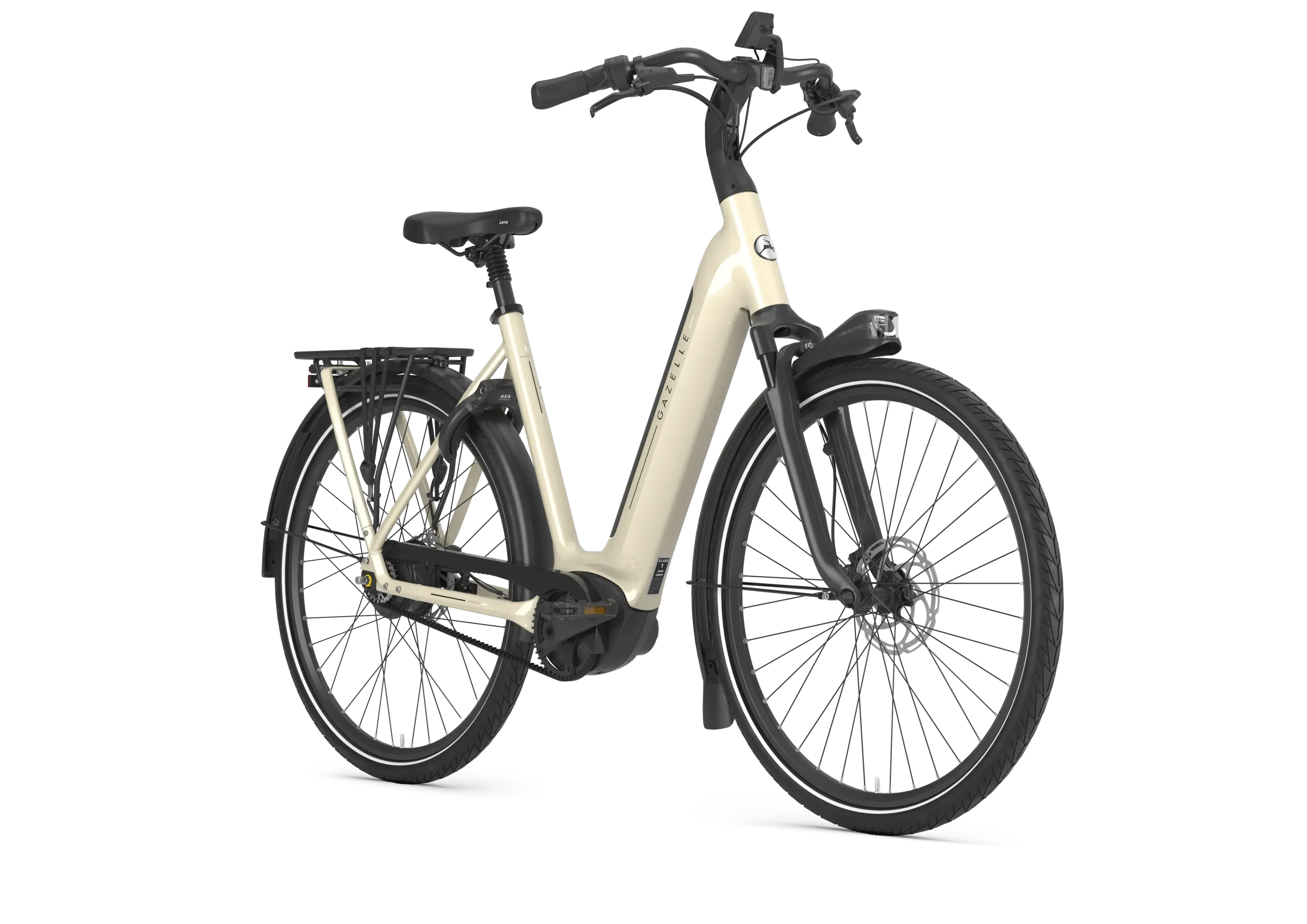

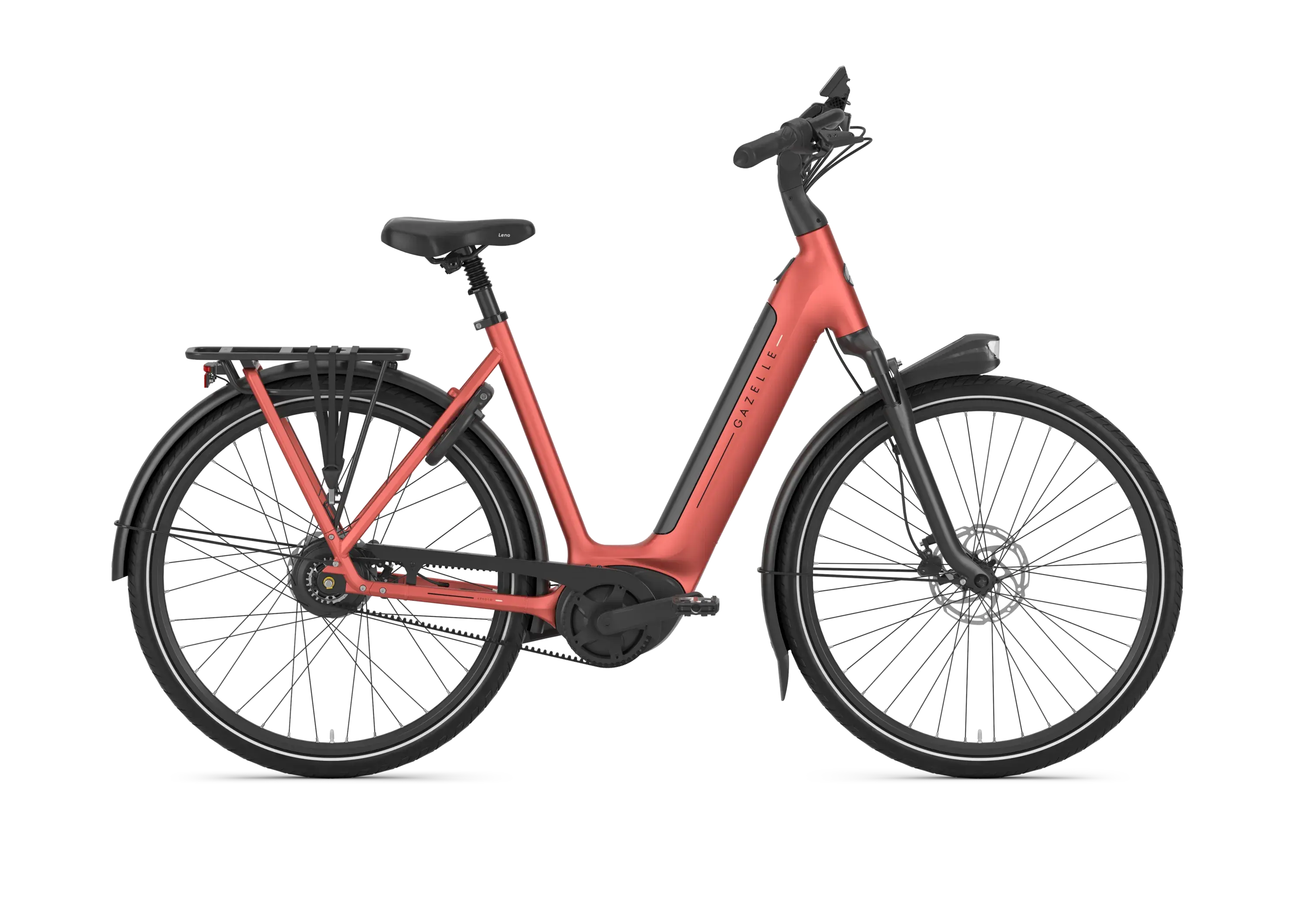

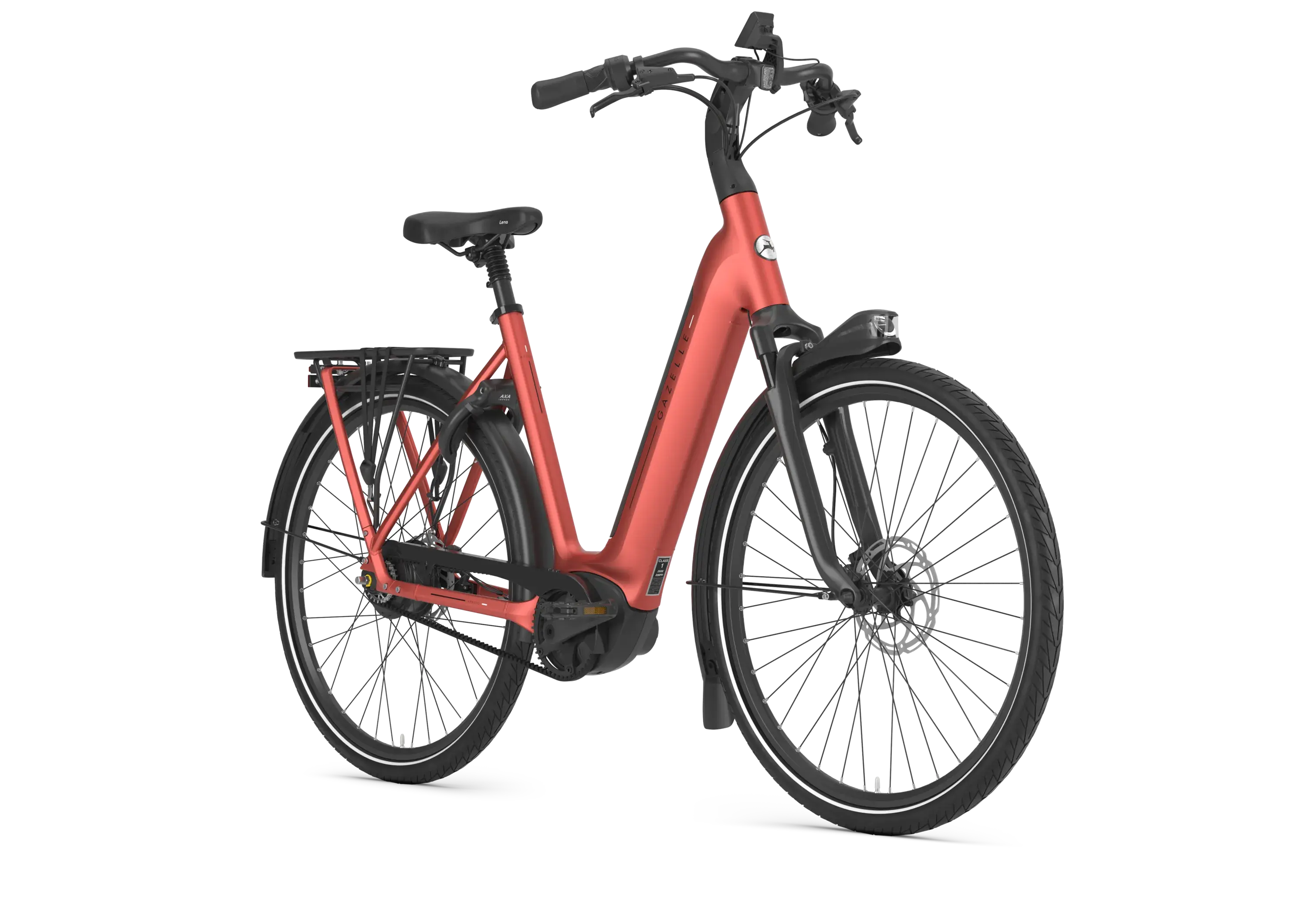

Gazelle Arroyo C380 Elite

$4,499.00
by Gazelle

Pickup currently unavailable at 18227 Bothell Way Northeast

Check availability at other stores

Elegant Design and Convenience


Opting for the Arroyo Elite means choosing an elegant and comfortable package. Beautiful design lines combined with high-quality components offer years of enjoyment. The smooth Bosch mid-drive motor and the stable frame with a wide entry provide optimal convenience.

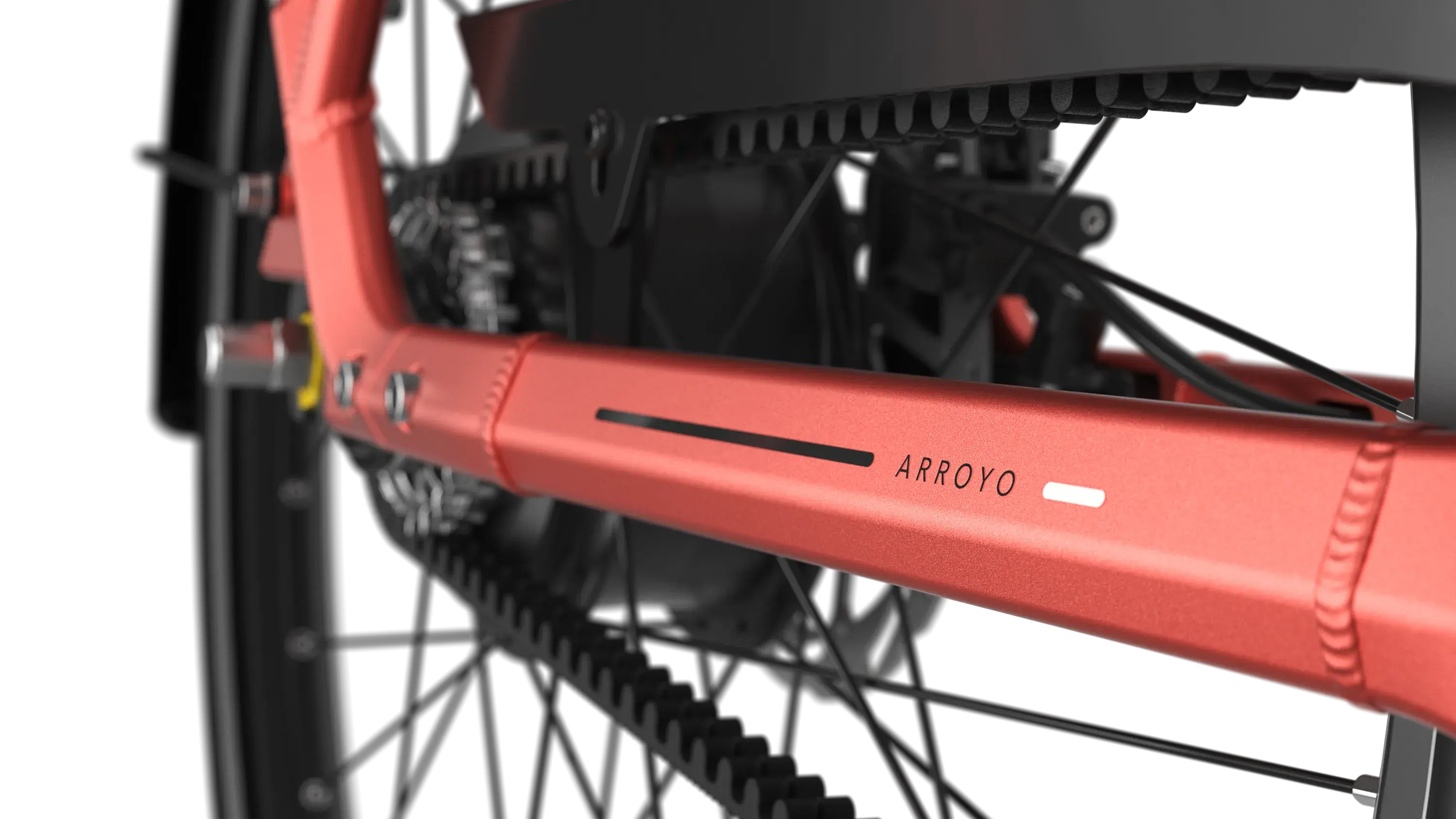

The combination of a Gates carbon belt drive and an Enviolo stepless CVT hub delivers a virtually maintenance-free ride with seamless, continuous shifting that completely eliminates the clunkiness of traditional gears.


SPECS

E-bike technology


Battery

545WH


Charger

Bosch Compact Charger, 2A


Battery Position

Integrated in the frame




Display

Bosch Kiox 300


Display Removable

Yes


Display Type

LCD colour


Support Levels

4


Support Values

Eco, Tour, Auto, Turbo


Ebike Walk Assist

Yes


Motor

BOSCH Smart System


Ebike Max Speed

20 mph


Engine Max Torque (Nm)

75


Motor

Performance Line


Ebike Engine Position

Mid






Fork



Fork Lockout

No


Fork Material

Aluminum


Fork Suspension

Telescope, spiral spring


Fork Travel

50 mm


Frame



Frame Description

Stable, lightweight hydro-formed aluminum frame with 68.5° headset angle and 69.5° seat tube angle for relaxed and comfortable riding.

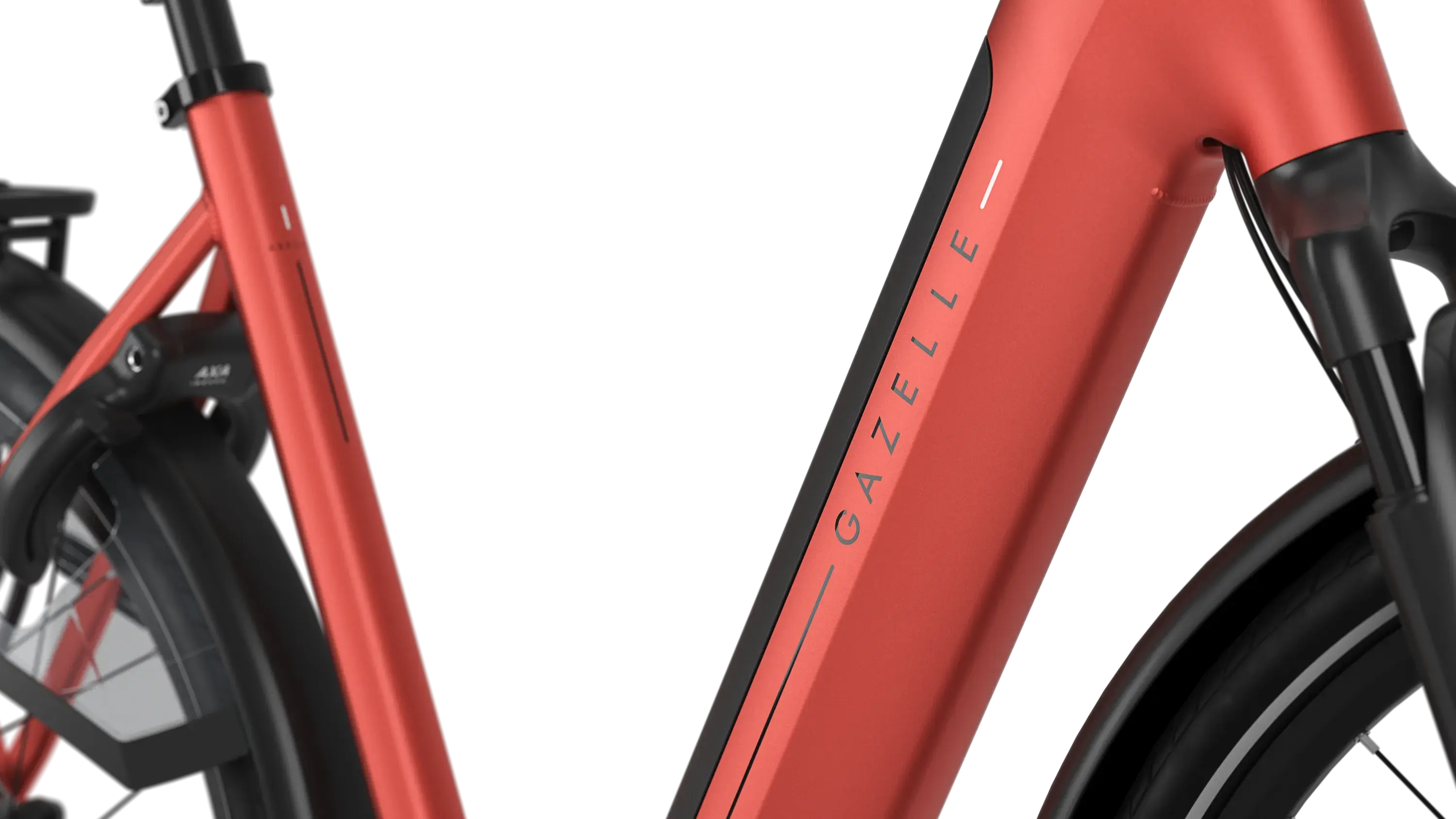

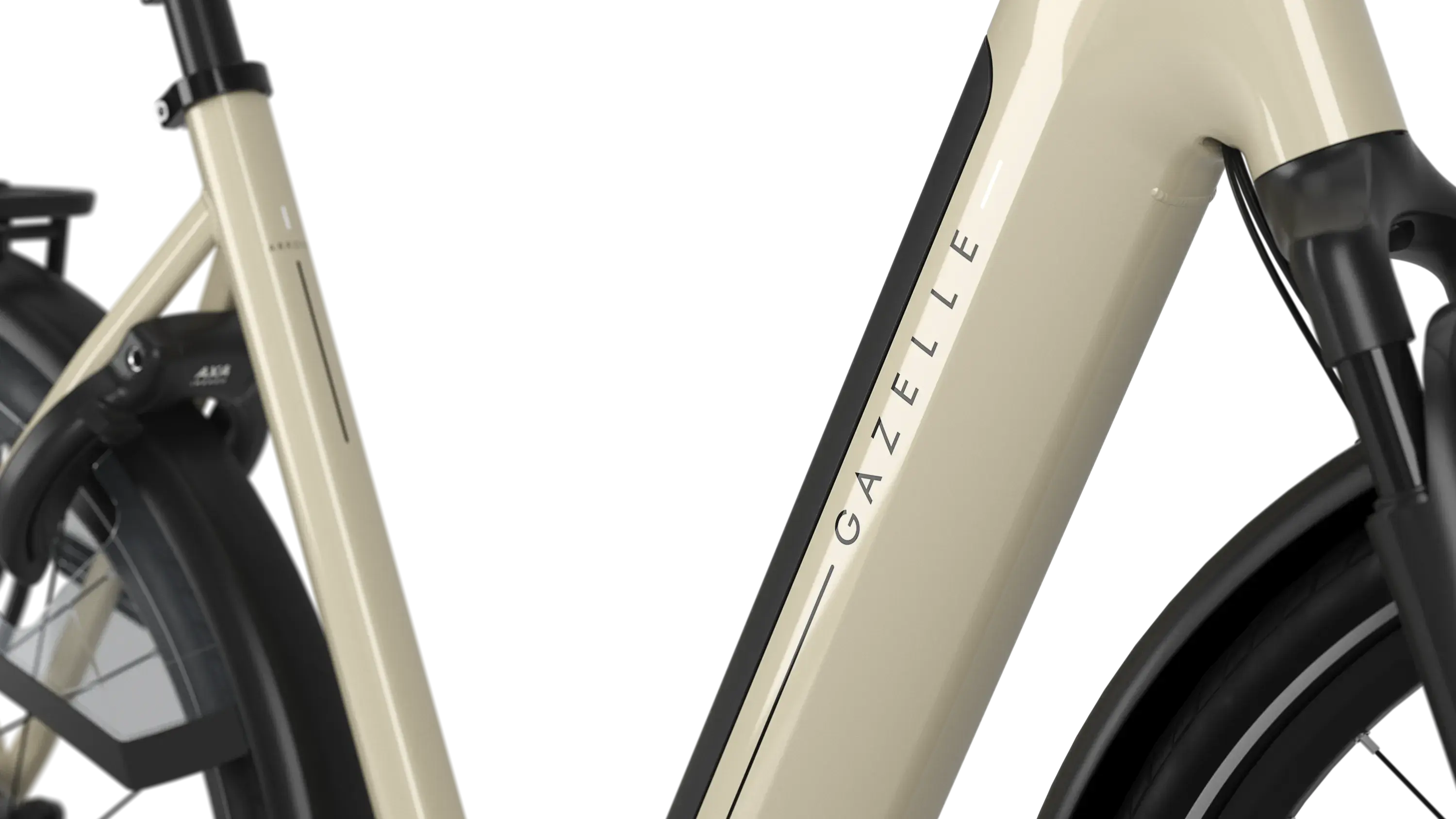

This is a low-step and spacious frame, single tube and lovely integrated cables


Frame Material

Aluminum


Frame hape

Low-Step


Frame Size CM

S(46) 4'10"-5'6",  M (53 ) 5'6"-5'10", L (56) 5'10"-6'4"

How do you know what size of bike you should buy?

A good place to start is using the sizing charts included for each bike on the info page. If you're in the middle of the recommended height range for a specific size then usually that's the correct one to go with. If you find yourself overlapping sizes at either the top or bottom of the height recommendation than sizing up or down could be a consideration.

For more relaxed fitting "city-style" bikes sizing is less crucial because often they will have adjustable stems and offer more overlap in sizing. Smaller bikes will be slightly easier to manage when starting and stopping while larger bikes will feel more stable when riding. Most often we recommend sizing down in this category.

Bikes that have a more aggressive riding position i.e. road, gravel and mountain bikes sizing is more important. In these categories we usually look closely at 3 numbers, reach, stack, and top-tube length.
