COMING SOON!
Our first Bosch hub drive city bike!
Best in class at a lower price!
Medeo

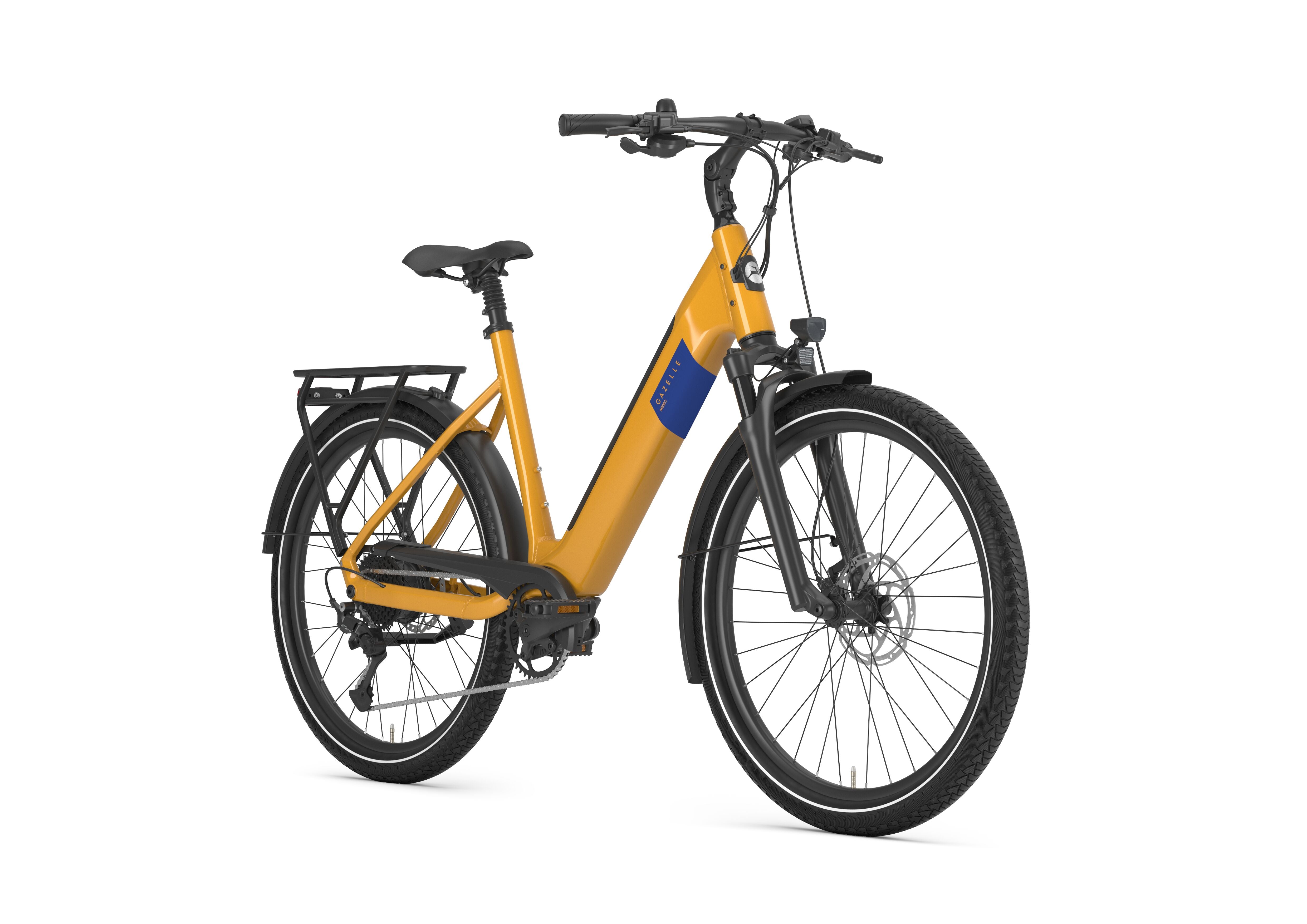

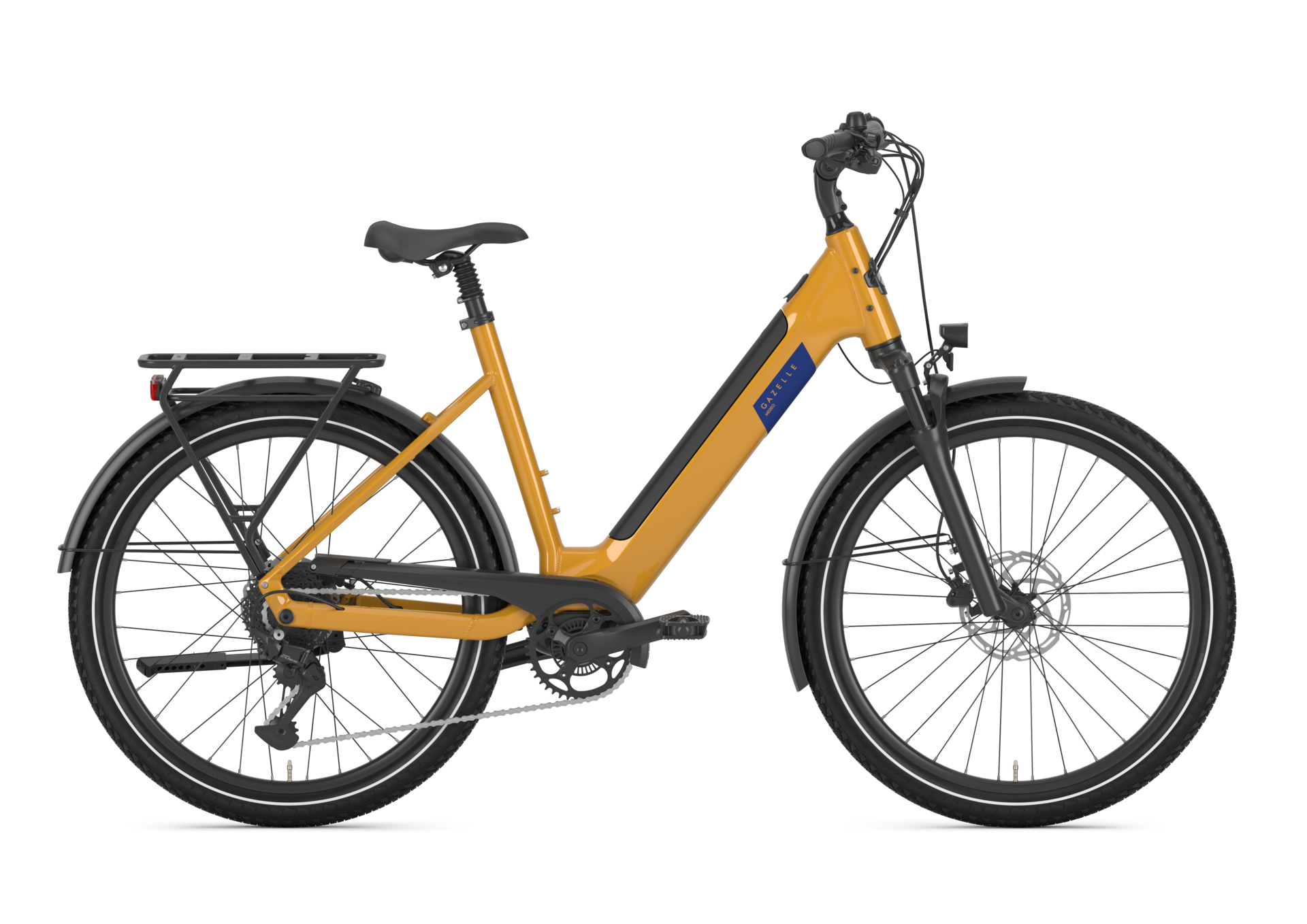

The Gazelle Medeo combines the best of two worlds. The
performance and style components are based on sports
bicycles and the comfort and ease of use are derived
from urban bicycles. The result is a comfortable sporty
ebike you can use to navigate smoothly through town
and which is suitable for the longer road to work
Specifications:
Frame/Fork
- Sitting Position: Active
- Frame cables integrated: Yes
- Fork: SR Suntour XCM32 Boost, Telescope, spiral spring
- Fork travel: 63 mm
- Fork lockout: Yes
- Rear carrier: aluminum MIK HD system carrier
Wheels/Tires
- Tire Front: Continental Contact Plus, 62-584
- Tire rear: Continental Contact Plus, 62-584
- Front rim: Ryde Andra 40, double-walled aluminum for
extra strong and effi cient cycling performance
- Rear rim: Ryde Andra 40, double-walled aluminum for
extra strong and effi cient cycling performance
- Rear hub: Bosch Hub Line motor
Stem/Handlebar
- Handlebar: aluminum, slightly bend. 31.8 mm.
- Stem: with toolbox, steplessly adjustable
- Grips: Herrmans DD36, plastic grips for a long lifespan
and maximum grip
- Brake levers: Tektro HD-E3120
Transmission/Brakes
- Front brake: hydraulic disc brake, Tektro HD-3120, 180 mm,
2 piston
- Rear brake: hydraulic disc brake, Tektro HD-3120, 160 mm,
2 piston
- Shifter: Shimano CUES
- Front chain wheel: 42
- Gear: Shimano Cues
- Derailleur rear: Shimano Cues RD-U4000
- Drivetrain: chain
- Chain/belt: Shimano CN-LG500, extra strong, special for
ebike
- Cassette Range: 11-41
Saddle/seat post
- Seatpost diameter: 31.6 mm
- Suspension: Yes
- Saddle: Selle Royal A001URO
Lighting
-
Front light: Spanninga Neos
- Front light lux: 40
- Front light energy source: battery
- Rear light: Trelock LS 611
- Rear light energy source: battery
Drive System
- Motor: Bosch Smart System Hub Line
- System Description: Class 2 with throttle, 20 mph
- Display: Bosch Purion 200
- Display Removable: No
- Charger: Bosch Compact Charger, 2A
- eBike Battery Watt Hours: 540 Wh
- Battery Position: integrated in the frame
Bells and whistles
- Lock: , Café lock optionally available
- Kickstand: Ursus Mooi, drop-down rear stand
- Maximum weight (lbs): 330 lbs
