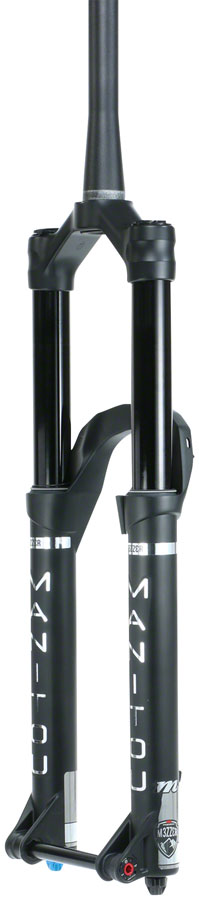

Loaded with unprecedented features Mezzer gives you the handling and control you need for the ultimate enduro ride. Built around 37mm stanchions and a Reverse-Arch lower leg design with the Hexlock SL2 axle Mezzer is the stiffest chassis in its category.
37mm stanchions Reverse-Arch design and Hexlock SL2 axle for the ultimate stiffnessIVA Air Volume AdjustabilityVTT Damper w/ 6-position compression and rebound adjustability140mm to 180mm internally adjustable travel in 10mm increments (travel spacers included)Integrated flexible fender can be installed/removed by three small screws threaded into the arch of the fork
| Axle to Crown Length |
564 |
| Brake Type |
Post Mount 180 |
| Color |
Black |
| Crown Race |
40 |
| Defined Color |
Black |
| Designed for ebike |
Yes |
| External Adjustments |
Rebound Damping |
| Front Axle |
15mm Thru x 110mm |
| Lockout Switch |
Crown |
| Maximum Tire Width |
74 |
| Negative Spring |
Air |
| Offset |
37 |
| Positive Spring |
Air |
| S.H.I.S. Stem Clamp Diameter |
28.6 |
| Stanchion Diameter |
37 |
| Steerer Tube Length (mm) |
251 |
| Steerer Type |
Tapered |
| Travel (mm) |
180 |
| Wheel Size |
27.5" |
