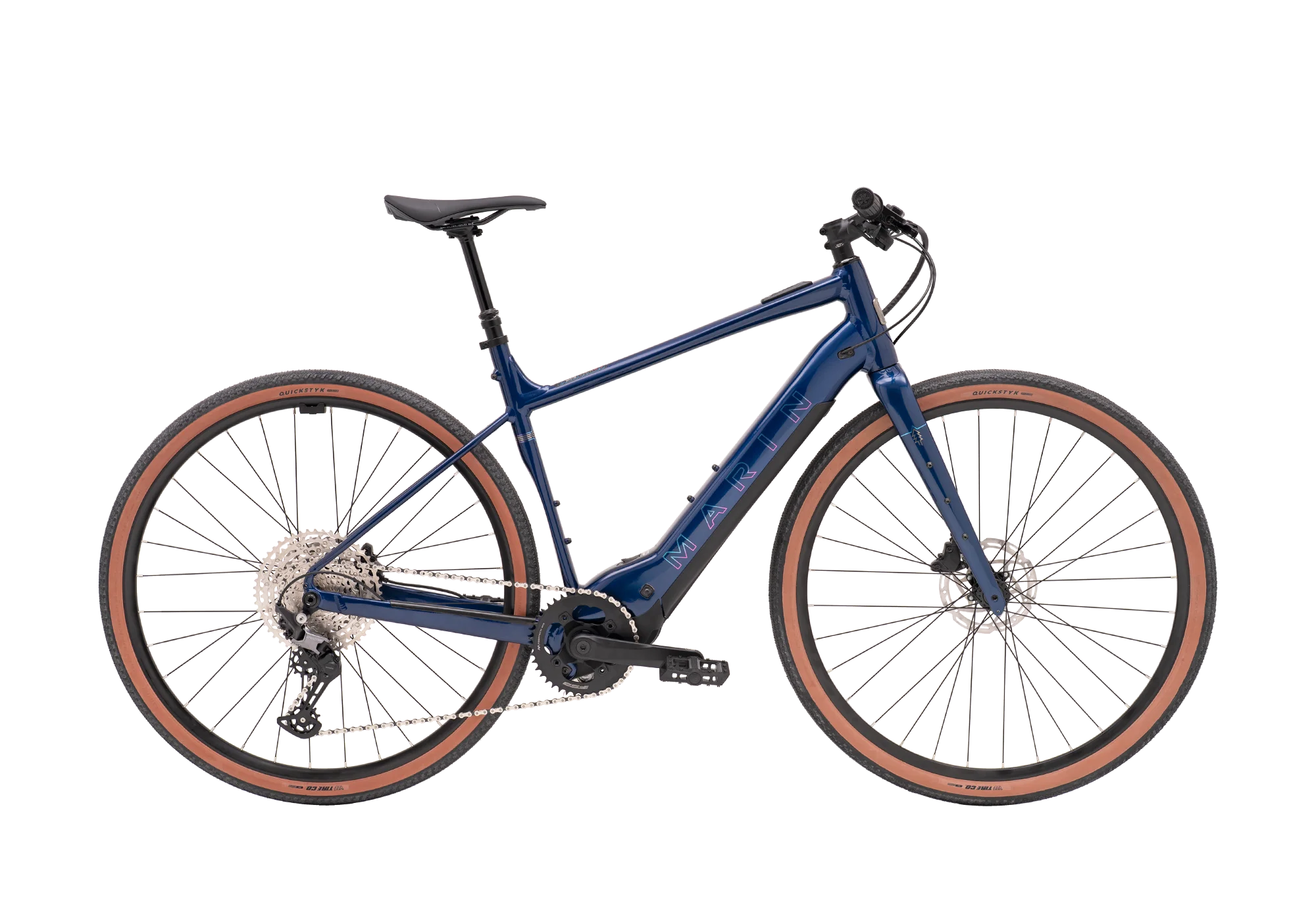

NEW! DSX - E

$4,199.00

by Marin

Size

Pickup available at 18227 Bothell Way Northeast

Usually ready in 4 hours

Check availability at other stores

Info
Size Guide

The DSX-E is the mountain biker’s E-gravel bike. Familiar hand positioning for comfort and confidence, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off or on road descending prowess. The Marin DSX is everything you want from a modern, flat-bar gravel bike.

Perfect for racking up road miles, daily grinds to work, multi-day epics and flowy singletrack, the DSX is the perfect modern gravel bike for riders that prefer their bars flat.

Equiped with the slim Bosch SX motor delivering 60 nm of torque and a max assist of 20 MPH combined with the Bosch 400 wh compact power tube providing 20-50 miles of range keeping things light withoust compromising performance.

FRAME

All-New Series 4 Beyond Road E, 6061 Aluminum, One-Piece Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

FORK

Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

RIMS

Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible

HUB REAR

Forged Aluminum Alloy, 142x12mm, Disc, 32H

HUB FRONT

Forged Aluminum Alloy, 100x12mm, Disc, 32H

SPOKES

14g Black Stainless Steel

TIRES

Vee Tire Co., G-Sport, 700x44, Tubeless Compatible

DERAILLEUR REAR

Shimano Deore, RD6100, 12-Speed

SHIFT LEVER

Shimano Deore, 12-speed

CRANKSET

Forged Alloy, 42T Steel Chainring

MOTOR

Bosch SX, 250W, 60Nm, Class 1(20mph)

CHAIN

KMC E12

CASSETTE

Shimano Deore 10-51T

BRAKE, FRONT

Tektro HD-R3020, Flat-Mount Hydraulic Disc, 160mm Rotor

BRAKE, REAR

Tektro HD-R3020, Flat-Mount Hydraulic Disc, 160mm Rotor

BRAKE LEVERS

Tektro Clean Cockpit

HANDLEBAR

Marin MiniRiser

STEM

Marin 3D Forged Alloy

GRIPS

Marin mountain grips

HEADSET

FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

SEATPOST

Marin Alloy, 27.2

SADDLE

Marin Beyond Road Concept Elite

PEDALS

Nylon Platform

KICKSTAND

Removable kickstand mount

BATTERY

Bosch CompactTube 400, 400Wh

EXTRAS

Bosch MiniRemote HMI, Bluetoth

RANGE, CHARGING TIME

14-85 miles/22-137km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 3.5 hours (estimated, under ideal conditions)

How do you know what size of bike you should buy?

A good place to start is using the sizing charts included for each bike on the info page. If you're in the middle of the recommended height range for a specific size then usually that's the correct one to go with. If you find yourself overlapping sizes at either the top or bottom of the height recommendation than sizing up or down could be a consideration.

For more relaxed fitting "city-style" bikes sizing is less crucial because often they will have adjustable stems and offer more overlap in sizing. Smaller bikes will be slightly easier to manage when starting and stopping while larger bikes will feel more stable when riding. Most often we recommend sizing down in this category.

Bikes that have a more aggressive riding position i.e. road, gravel and mountain bikes sizing is more important. In these categories we usually look closely at 3 numbers, reach, stack, and top-tube length.
