NEW! Marin Sausalito E2 Step Thru (Bosch)
The SEB Crews Favorite City-Gravel Ripper is Back! The new 2027 Sausalito is finally here!

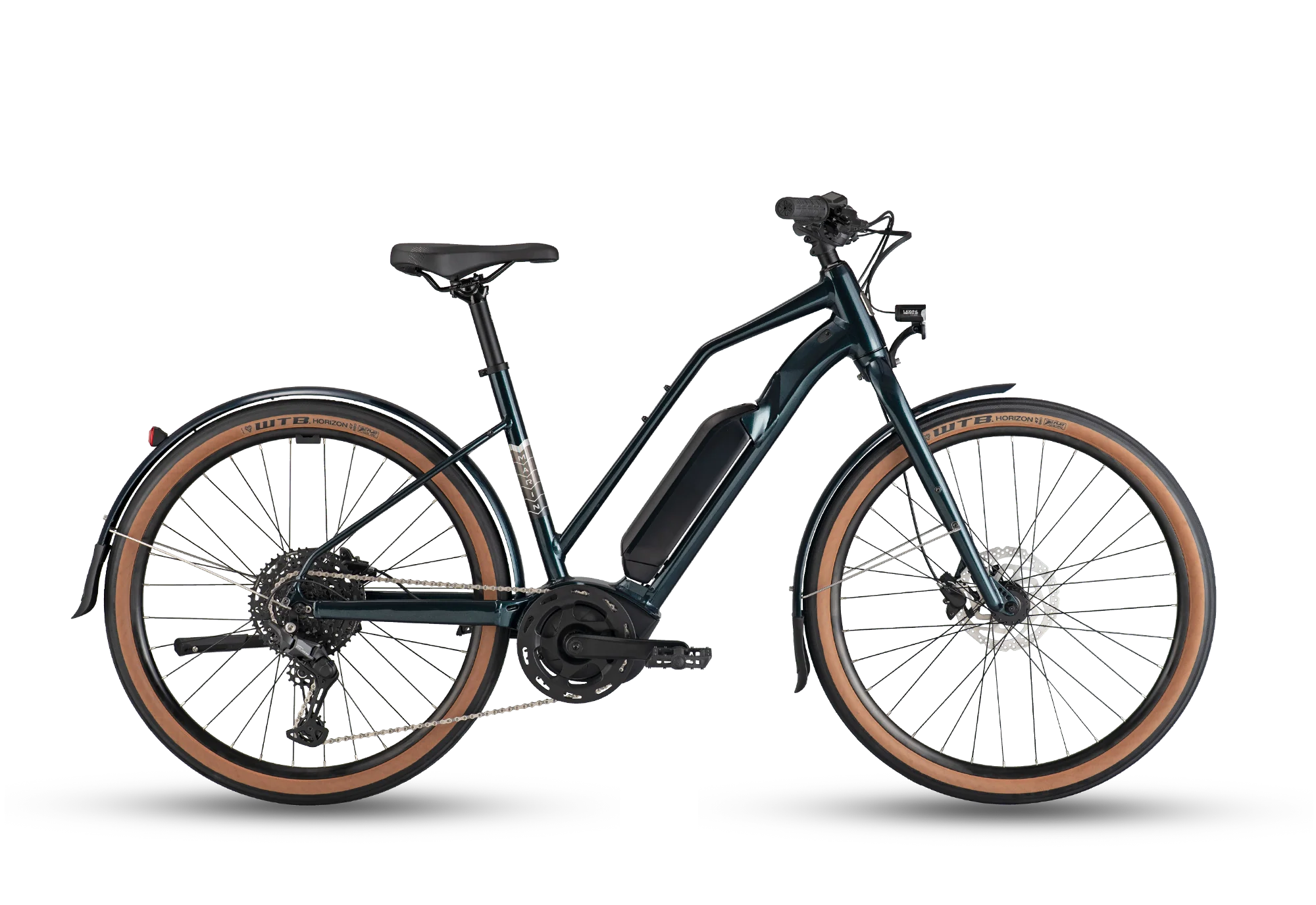

The Sausalito E 2 LS is ready for whatever your city life throws up. Hop on and step off the low-step frame. Flatten hills and close distances with the Class 3 Bosch Performance Sport motor's reliable, responsive assist. Up to 93 miles of range covers the errand run, the commute and the detour in one charge. WTB Horizon 650b rubber rolls smooth and sure on any surface the city serves up, and the Shimano hydraulic discs stop clean whatever the weather. Lezyne lights, full fenders and a kickstand – there’s nothing to add and nowhere to be except riding.
Specifications
| Display | Bosch Purion 200, LCD Display |
| Battery | Bosch Power Pack 545, 545Wh |
| Motor | Bosch Performance Sport, 250W, 70Nm, Class 3 (28mph, 45Km/h) |
| Frame | Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts |
| Rims | Marin Aluminum Double Wall, Disc Specific |
| Hub, Rear | Forged Alloy, Disc Specific, 32H |
| Hub, Front | Forged Alloy, Disc Specific, 32H |
| Tires | WTB Horizon, 650Bx47, Wire Bead |
| Derailleur, Rear | Shimano CUES 10-Speed |
| Shift Lever | Shimano CUES 10-Speed |
| Crankset | Forged Aluminum w/ 38T Steel Chairing |
| Chain | KMC E11S |
| Brake, Front | Shimano MT201 Hydraulic, 180mm Rotor |
| Brake, Rear | Shimano MT201 Hydraulic, 180mm Rotor |
| Brake Levers | Shimano MT201 Hydraulic |
| Handlebar | Marin Urban Alloy, 31.8mm Clamp |
| Stem | Marin Alloy |
| Grip | Marin Adventure |
| Headset | FSA No. 57E |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin City Plush |
| Pedals | Nylon Platform |
Geometry
| Size | S | M | L |
|---|---|---|---|
| A: Stack | 607.4 | 625.8 | 653.4 |
| B: Reach | 405 | 425 | 445 |
| C: Headtube Angle | 67° | 67° | 67° |
| D: Headtube Length | 130 | 150 | 180 |
| E: Seattube Angle | 73.5° | 73.5° | 73.5° |
| F: Seattube Length | 430 | 480 | 520 |
| G: Toptube Effective | 549 | 582 | 610.2 |
| H: BB Height | 293 | 293 | 293 |
| I: BB Drop | 65 | 65 | 65 |
| J: Chainstay | 465 | 465 | 465 |
| K: Wheelbase | 1183 | 1166 | 1198 |
| L: Standover Height | 483 | 509.3 | 522.4 |
| M: Fork Offset | 44 | 44 | 44 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 700 | 700 | 700 |
| Stem Length | 45 | 45 | 45 |
| Crank Length | 170 | 170 | 170 |
All lengths in millimeters
Sizing
How do you know what size of bike you should buy?
A good place to start is using the sizing charts included for each bike on the info page. If you're in the middle of the recommended height range for a specific size then usually that's the correct one to go with. If you find yourself overlapping sizes at either the top or bottom of the height recommendation than sizing up or down could be a consideration.
For more relaxed fitting "city-style" bikes sizing is less crucial because often they will have adjustable stems and offer more overlap in sizing. Smaller bikes will be slightly easier to manage when starting and stopping while larger bikes will feel more stable when riding. Most often we recommend sizing down in this category.
Bikes that have a more aggressive riding position i.e. road, gravel and mountain bikes sizing is more important. In these categories we usually look closely at 3 numbers, reach, stack, and top-tube length.
