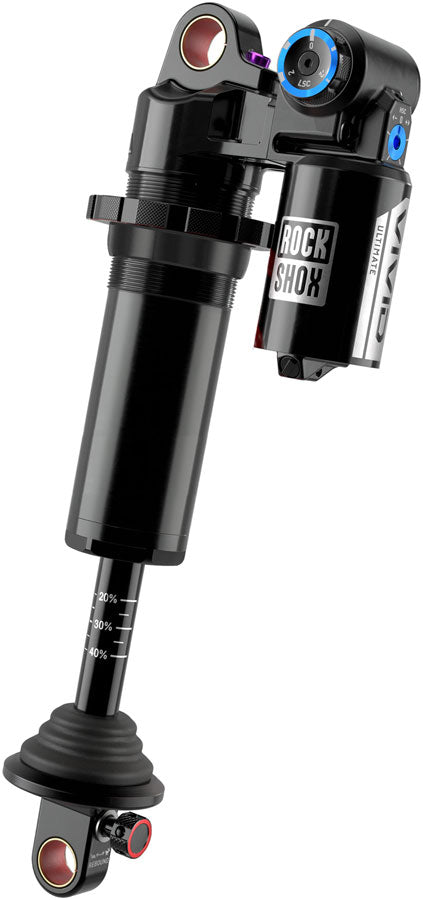

There’s a reason everyone loves coil—the feel is unmistakable—supple off the top supportive through the mid-stroke and backed by Adjustable Bottom Out (ABO) for confident end-stroke control—giving you unwavering consistency and predictability. Engineered to work as a system with your fork and Charger 3.2 damper the RC2 damper’s new main piston compression tunes deliver confident mid-stroke support while intuitive HSC/LSC adjusters make setup fast clear and easy to communicate. Distilling decades of coil dominance into a shock built for today’s downhill bikes Vivid Coil Ultimate DH carries the unmistakable heritage of coil into a new era of performance.
RC2 damper providing a wide usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talkNumbered Compression adjuster for intuitive adjustments—start at “0” and easily add or decrease dampingBase valve with 40% reduction in IFP forces making it one of the most supple shock on the market while maintaining perfect tractionMain piston compression tunes matched in performance to the Charger 3.2 damper focused on providing mid-stroke supportAdjustable Bottom Out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travelRemovable Rebound knob doubles as HSC and ABO adjuster20 clicks of Rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights
| Stroke (mm) |
70 |
| Lockout Switch |
Shock Mounted Switch |
| Eyelet Diameter (mm) |
12.7 |
| External Adjustments |
Bottom Out Resistance |
| Positive Spring |
Coil |
| Eye to eye length (mm) |
250 |
