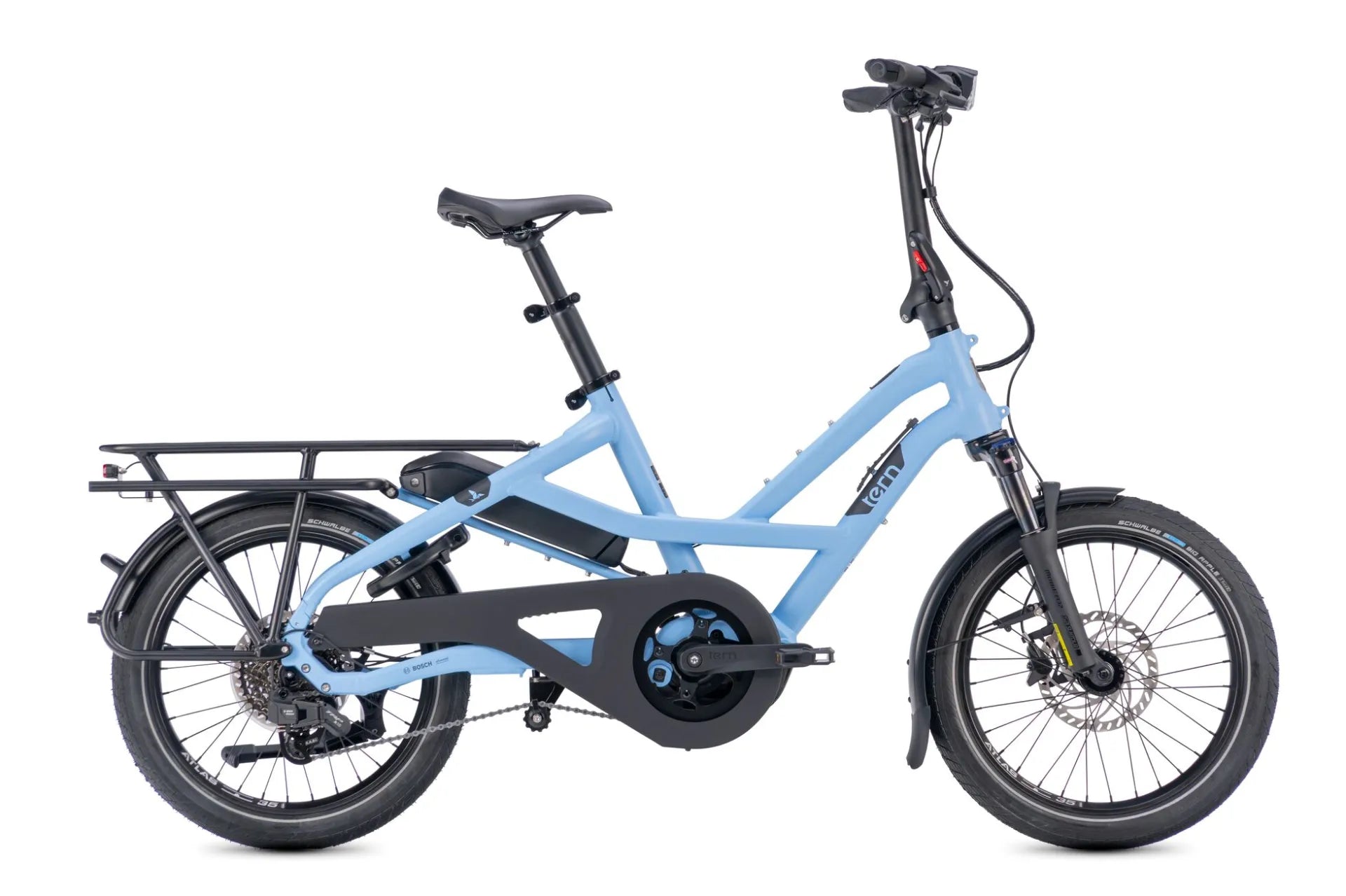

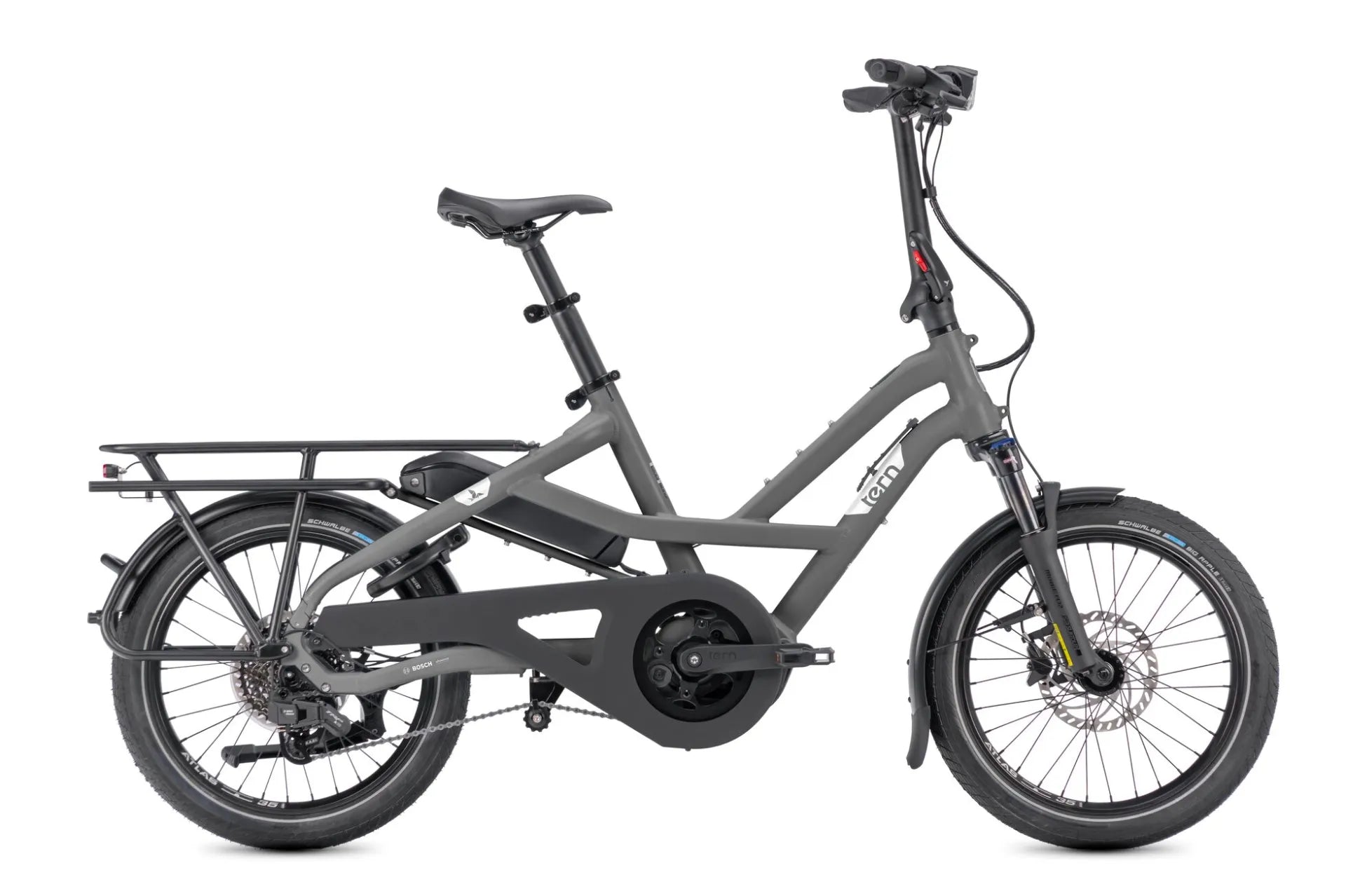

Tern HSD P10e Sport (Gen 3)

$5,499.00
Type: Tern HSD
Call for Availability

Pickup currently unavailable at 18227 Bothell Way Northeast

Check availability at other stores

Mighty but Mini

A compact electric cargo bike that surprises with big-bike capability. The new HSD carries passengers and cargo with exceptional stability, while staying nimble in crowded streets and remaining delightfully easy to ride. Smart, strong, and effortlessly smooth, it’s everything you need from a cargo bike, without the unwieldiness you’d expect from one.

What makes it a P10e Sport?

  • Bosch Performance Sport motor delivers up to 90 Nm of torque and 600% pedal assist with Performance Upgrade 2.0, supporting a max speed of 28 mph (Class 3)
  • Bosch Smart System delivers a fully connected ride with eBike Lock, ride customization, over-the-air updates, and more
  • Minimal, compact Purion 200 display lets you control all features with your thumb and keeps the cockpit clutter-free
  • Bosch eShift automatically shifts for you based on your preferred cadence and starting gear, with a wireless design that reduces maintenance
  • Custom TRP E.A.S.I. A10, 10-speed derailleur
  • Bosch PowerPack 545 battery provides long range of up to 67 mi (107 km)

HSD Highlights

  • Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 419 lb (190 kg) with a rear rack load capacity of 176 lb (80 kg)
  • Optimized frame geometry, a longer wheelbase, and a low center of gravity keep rides stable, even with heavy loads or at higher speeds
  • Magura hydraulic disc brakes deliver precise and responsive stopping power
  • Custom Suntour suspension fork absorbs road shocks for a smoother, more comfortable ride
  • Easy-sharing cockpit adjusts without tools to fit riders 4'11" - 6'7" (150 - 200 cm ) tall and weighing up to 287 lb (130 kg)
  • Third-party tested and certified to UL 2849 (complete e-bike system) and EN 17860 (frame and fork, 419 lb) for proven cargo e-bike safety and reliability

SPECIFICATIONS

General Info
Speeds:
1 x 10
Weight:
28.4 kg (62.6 lb)
Gear Inches:
27 - 97" (2.18 - 7.72 m)
Frame Sizes:
One size
Bike Size:
174 × 112.5 × 68 cm (68.5 × 44.3 × 26.8 in)
Wheelbase:
119 cm (46.9 in)
Standover Height:
48.5 cm (19.1 in)

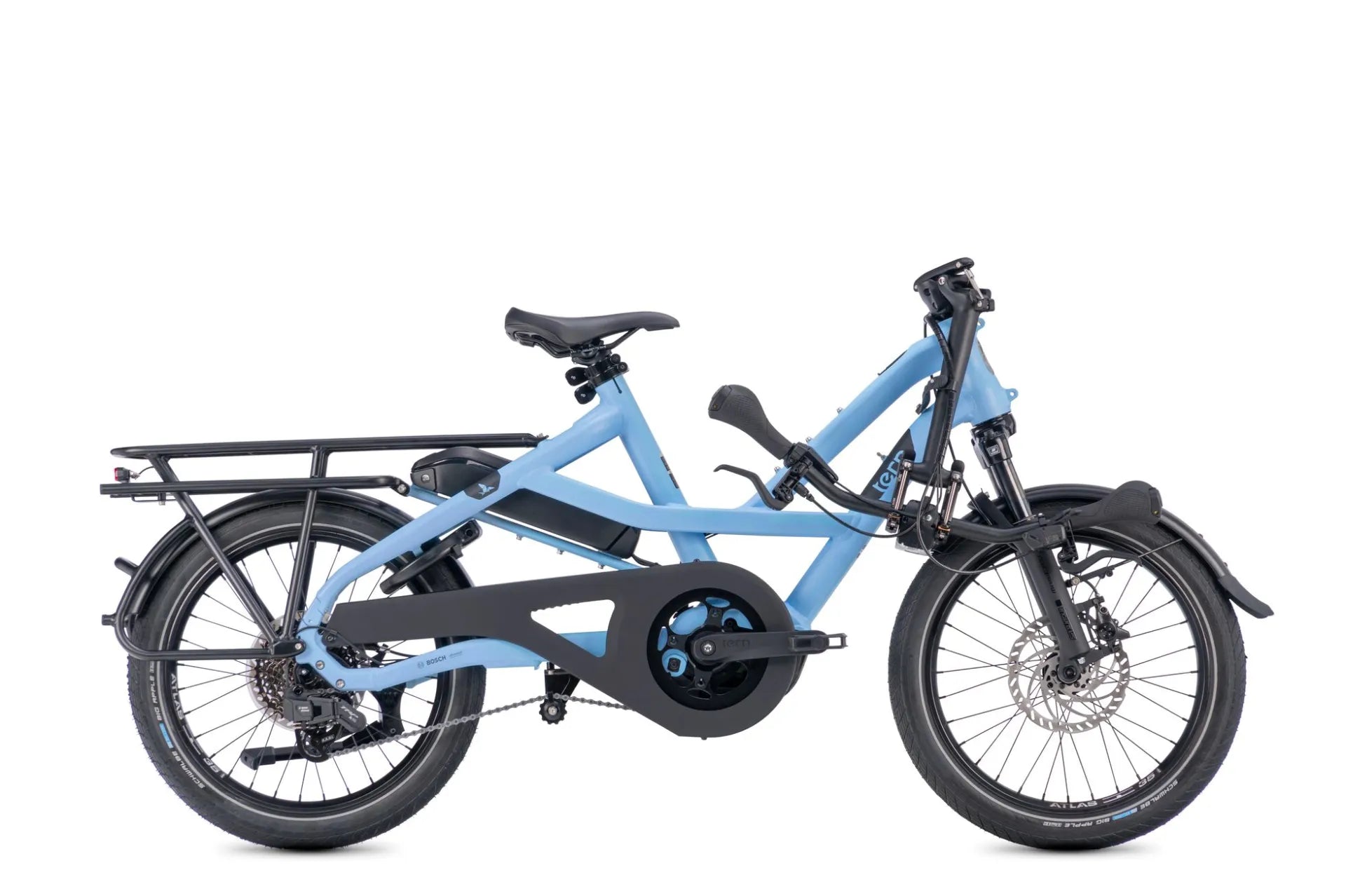

Folding Size:
166 × 42 × 87 cm (65.4 × 16.5 × 34.3 in)
Folding Time:
5 seconds
Distance: Seatpost to Handlebar:
52 - 59 cm (20.5 - 23.2 in)
Distance: Saddle to Pedal:
68 - 101 cm (26.8 - 39.8 in)
Suggested Rider Height:
150 - 200 cm (59.1 - 78.7 in)
Max Gross Vehicle Weight:
190 kg (418.9 lb)
Max Rider Weight:
130 kg (286.6 lb)
Frame
Frame:
Tern HSD, 6061-AL, patented design, EN17860 certified: 190 kg
Fork:
Suntour custom for Tern, 32 mm stanchions, Thru-axle, EN17860 certified: 190 kg

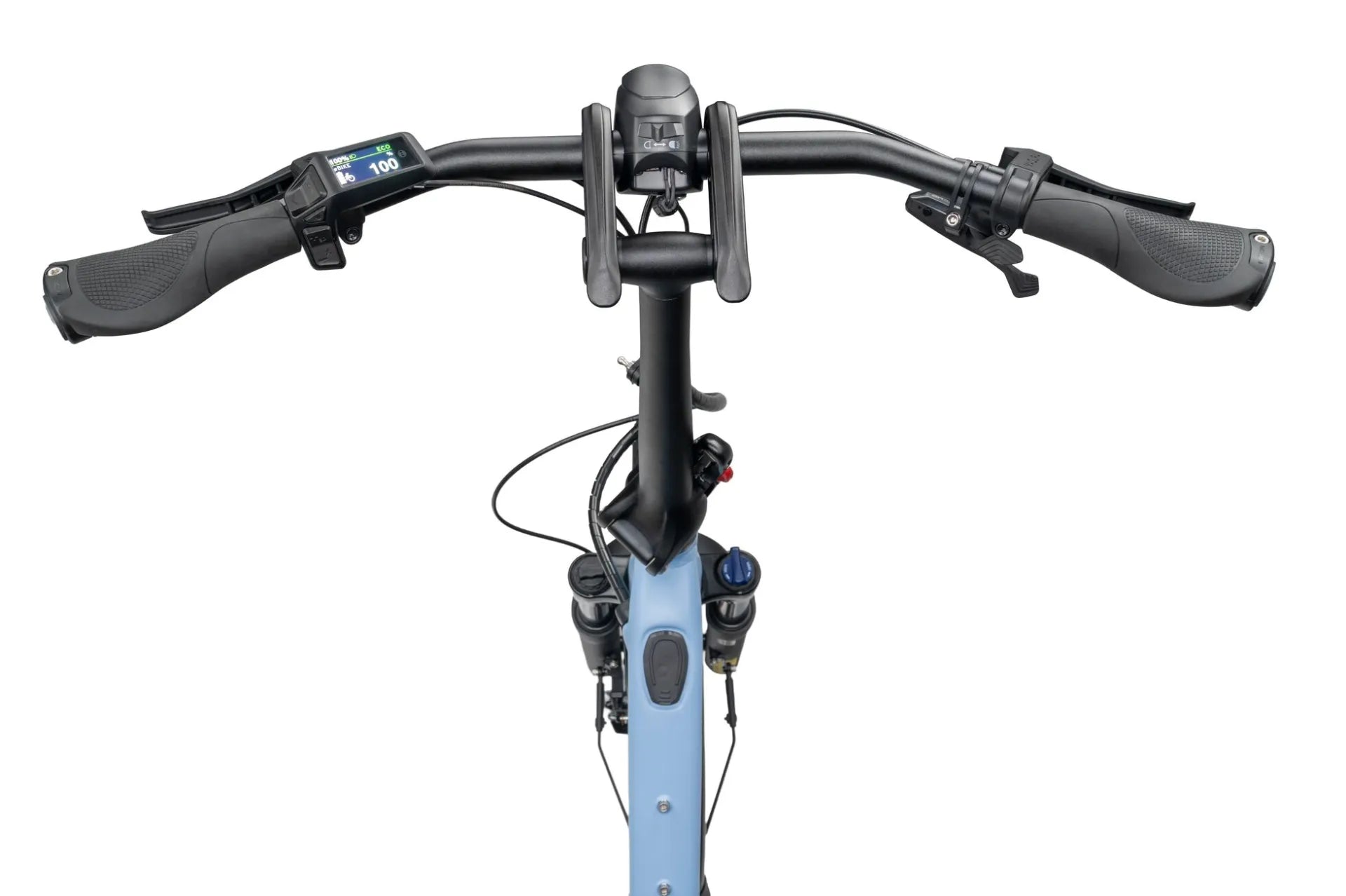

Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern by Velo

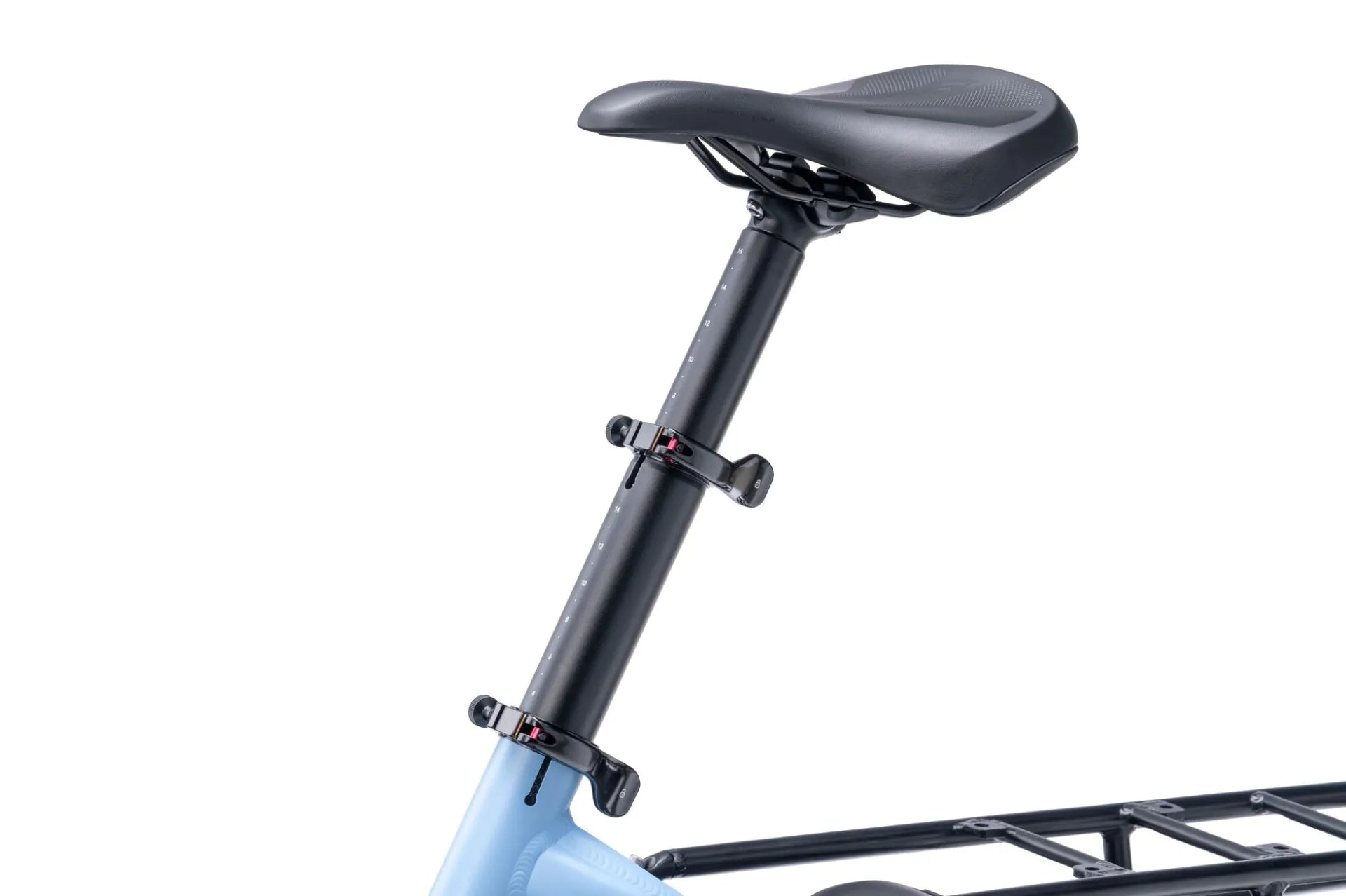

Seatpost:
Tern VLT 41/34.9mm, with LightAction levers
Seatpost Clamp:
Tern Collar
Brakes

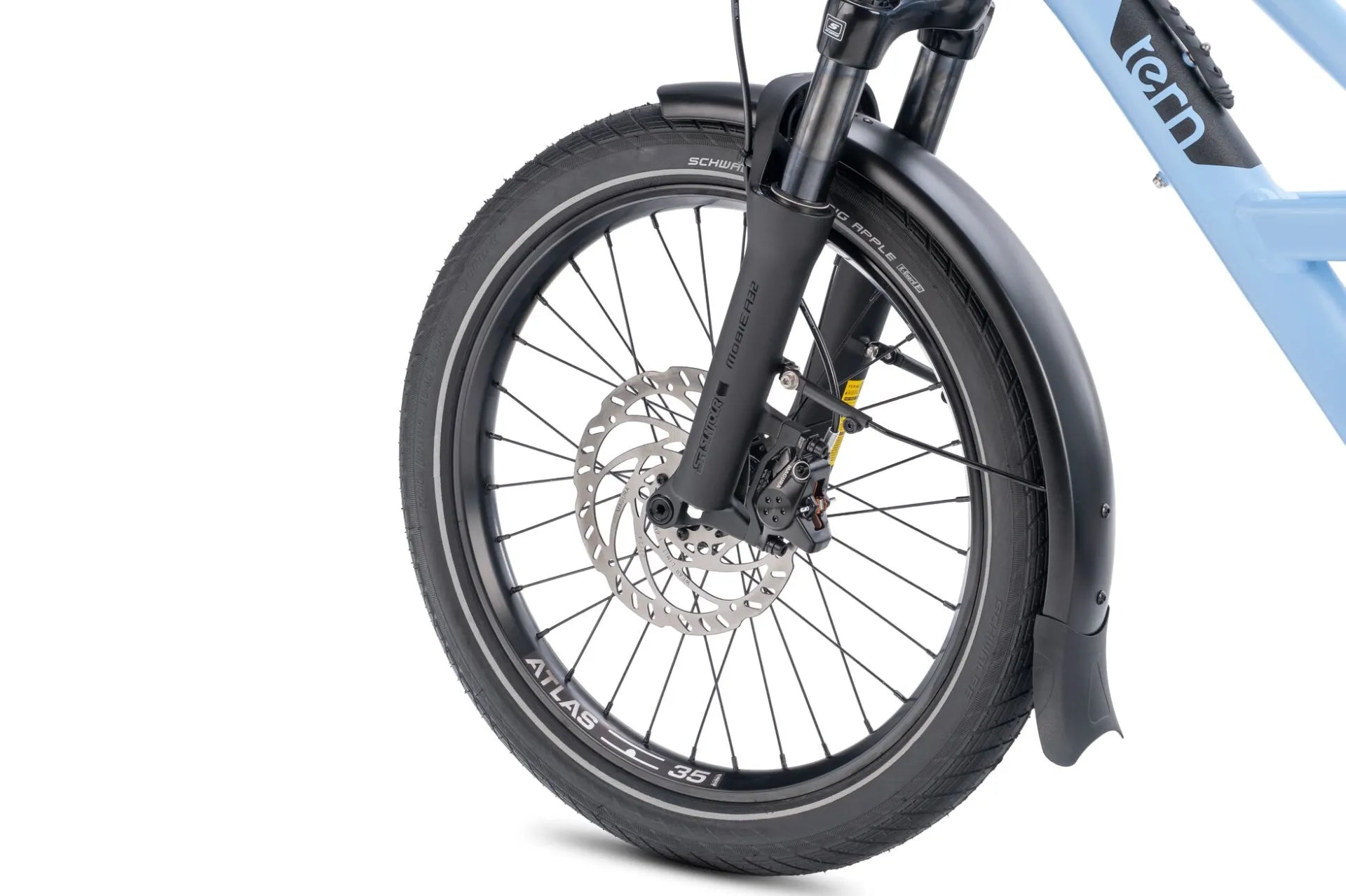

Front Brake:
Magura, hydraulic disc, 180 mm rotor
Rear Brake:
Magura, hydraulic disc, 180 mm rotor
Brake Levers:
Magura, hydraulic disc
Brake Cable & Housing:
Magura, hydraulic disc
Wheels
Front Wheel:
Tern Atlas H, cargo wheel
Rear Wheel:
Tern Atlas H, cargo wheel

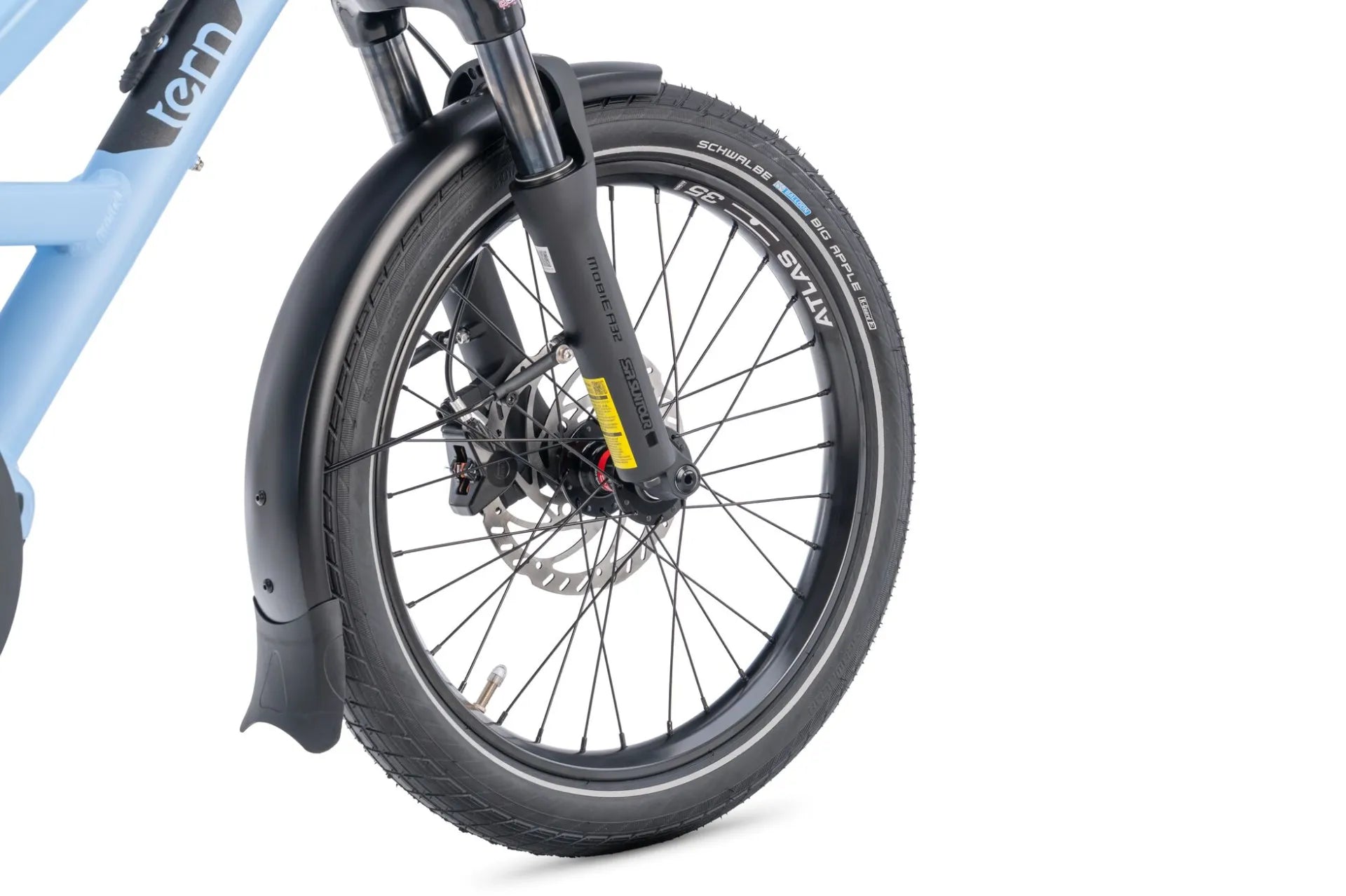

Front Hub:
Novatec, Thru-axle, sealed bearings

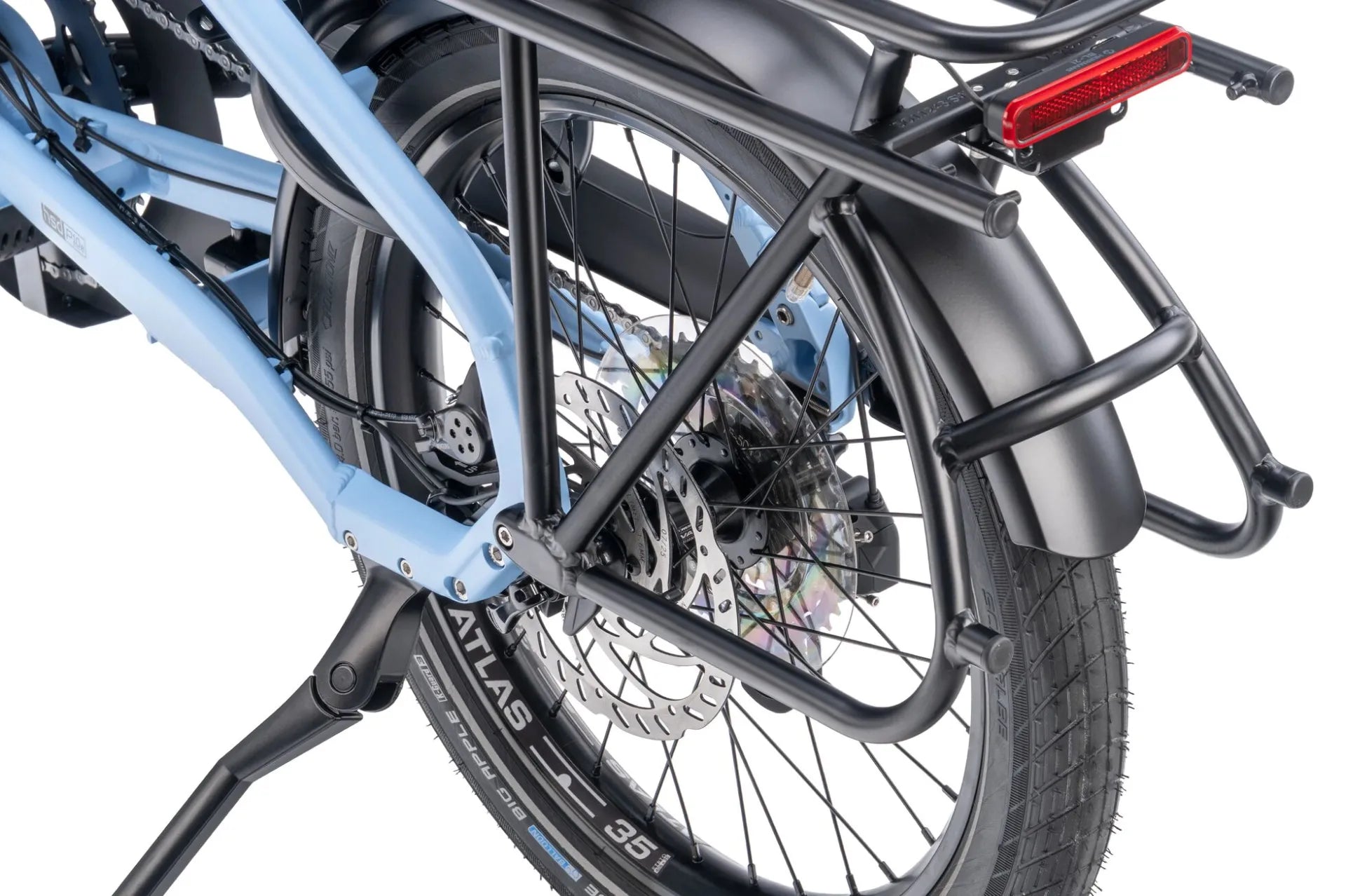

Rear Hub:
Novatec, disc, sealed bearings
Spokes & Nipples:
Stainless steel
Rims:
Tern Atlas H, cargo
Tires:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter:
TRP E.A.S.I., wireless e-shifter, w/ Bosch eShift

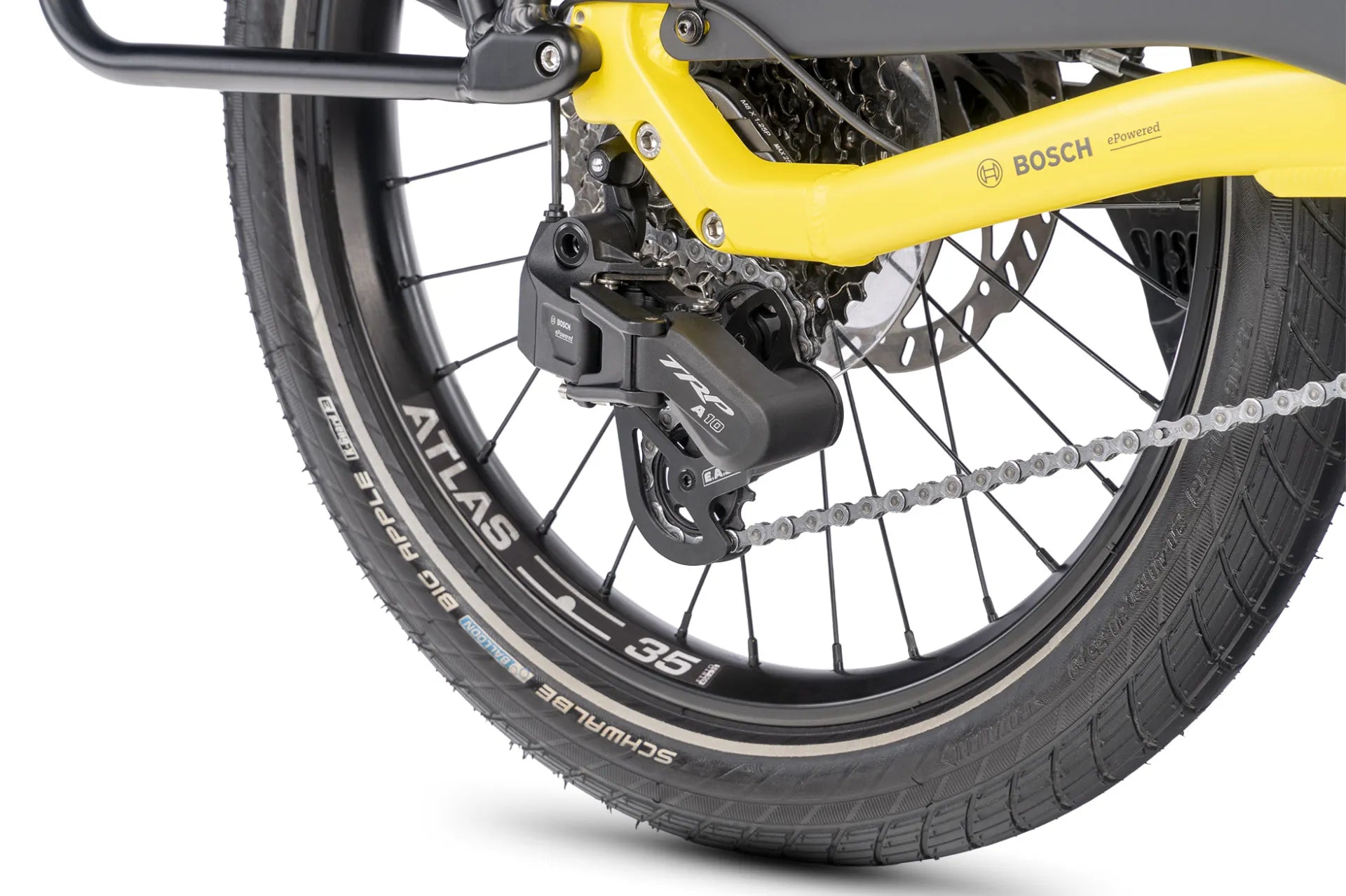

Rear Derailleur:
TRP E.A.S.I. A10, w/ Bosch eShift, 10 spd, Built for Tern
Crankset:
Tern HSD
Cassette/Freewheel:
Shimano CUES, Linkglide 11-39T, 10 spd
Bottom Bracket:
Motor integrated
Chain:
KMC eGlideS, 10 spd, EPT corrosion resistant coating
Pedals:
Urban with non-slip surface, sealed bearings
Shifter Cable & Housing:
Wireless
E-System

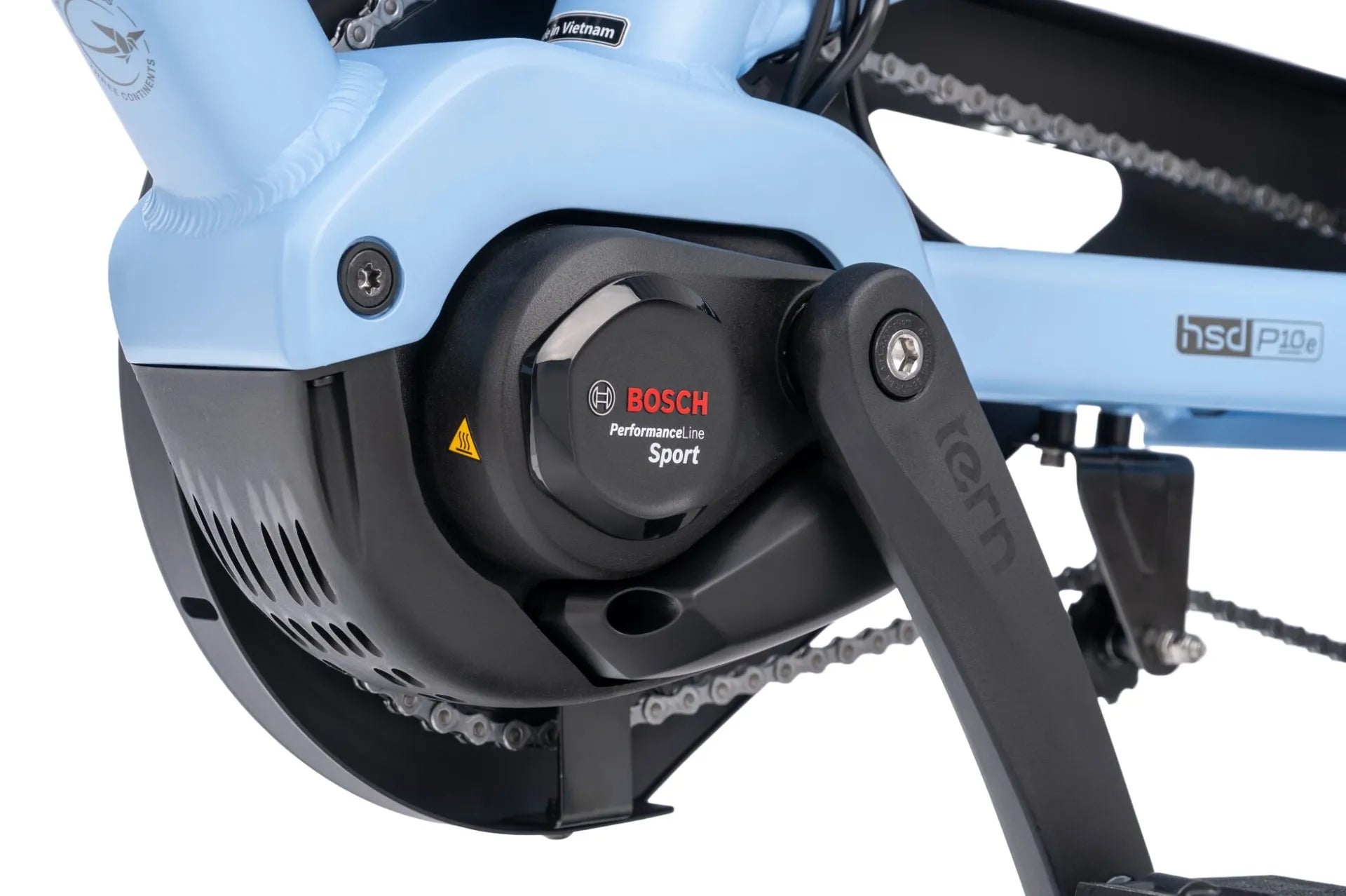

Motor:
Bosch Performance Sport (BDU34, 600% Assist, 90 Nm Torque, max speed 28 mph (US)

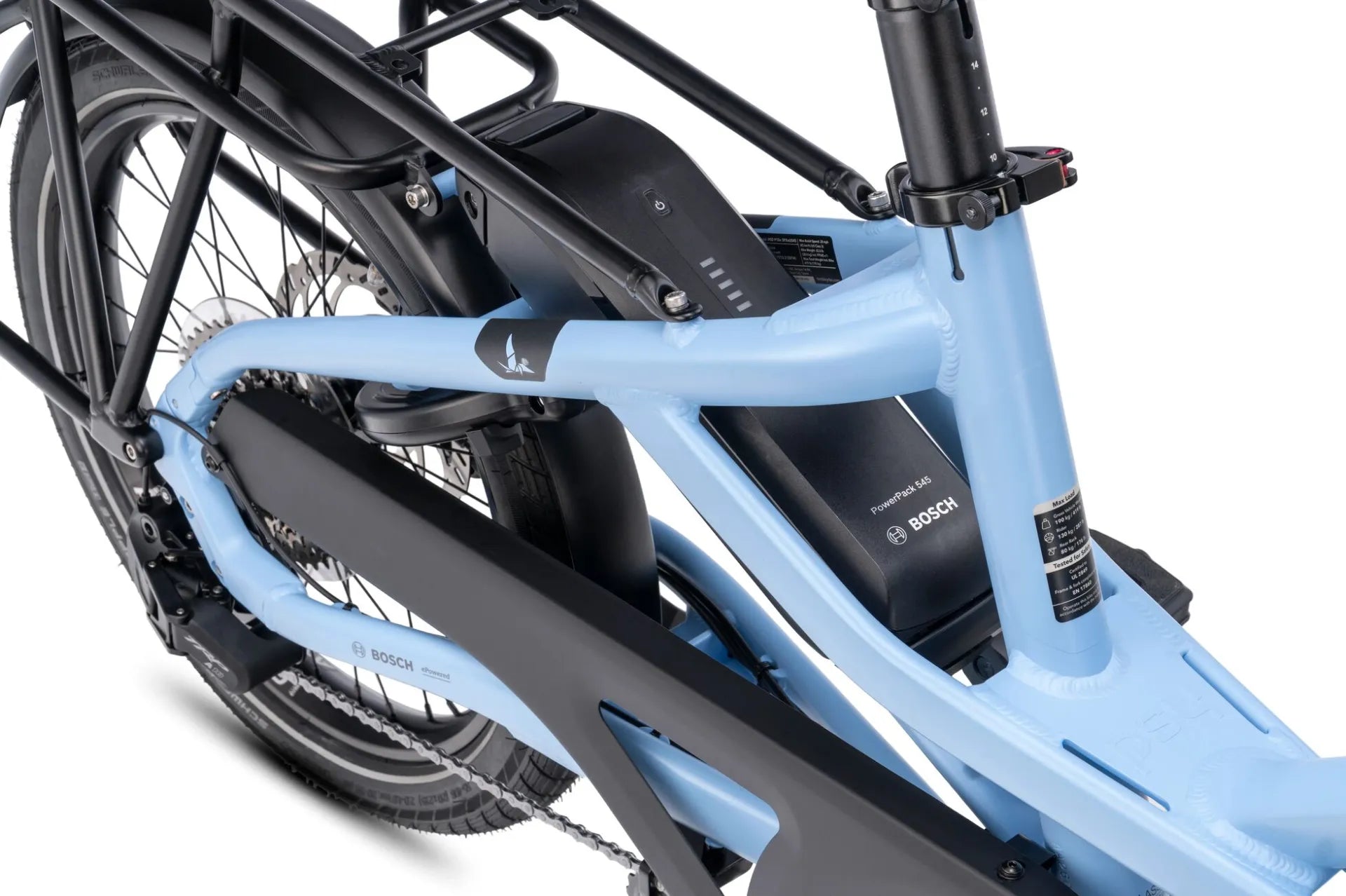

Battery:
Bosch PowerPack 545

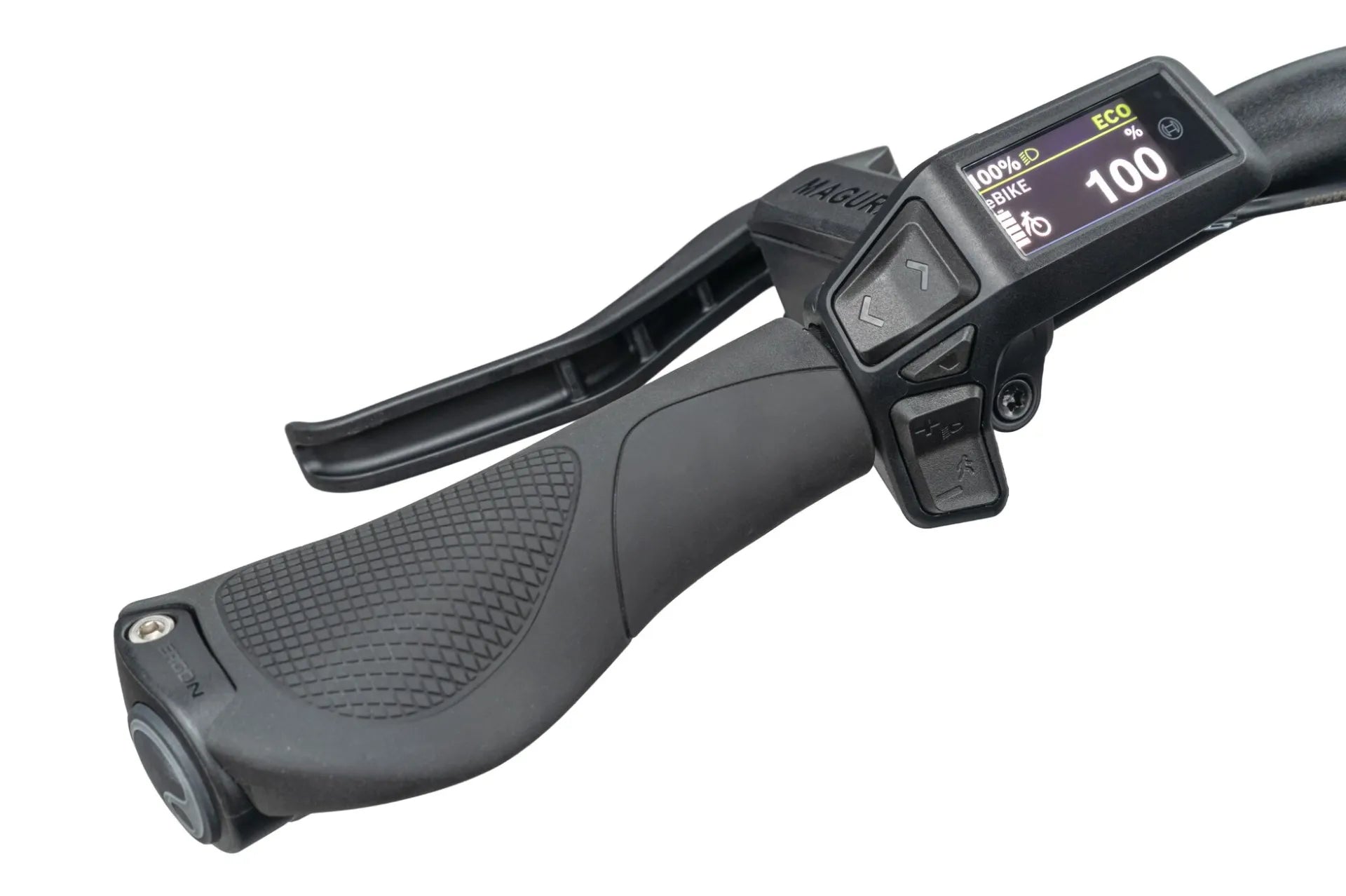

Display:
Bosch Purion 200, connectivity with Bosch eBike Flow app, electronic bike lock
Range:
545 Wh: 56-107 km (35-67 mi)
Charger:
Fast Charging, 220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell:
Pitch Plus, brass
Chainguard:
Tern Custom, full chain cover
Kickstand:
Ursus, rear mount
Luggage Socket:
Tern Combo Mount
Front Light:
Tern Valo Direct, 190 lumens
Rear Light:
Herrmans LED
Fenders:
Aluminum, stainless hardware

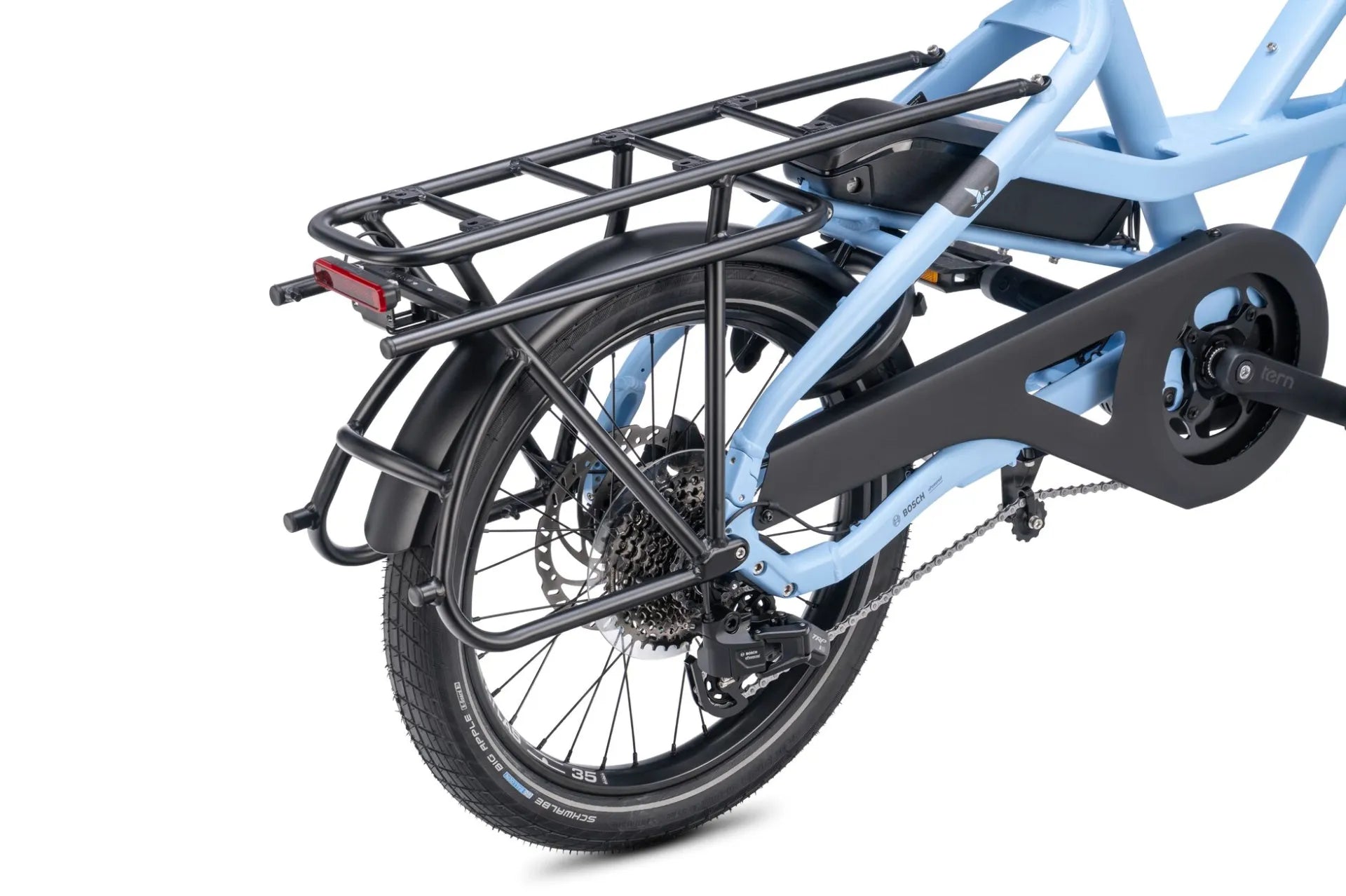

Rack:
Atlas H rack, 6 point mounting, ISO 11243:2023 certification: 80 kg

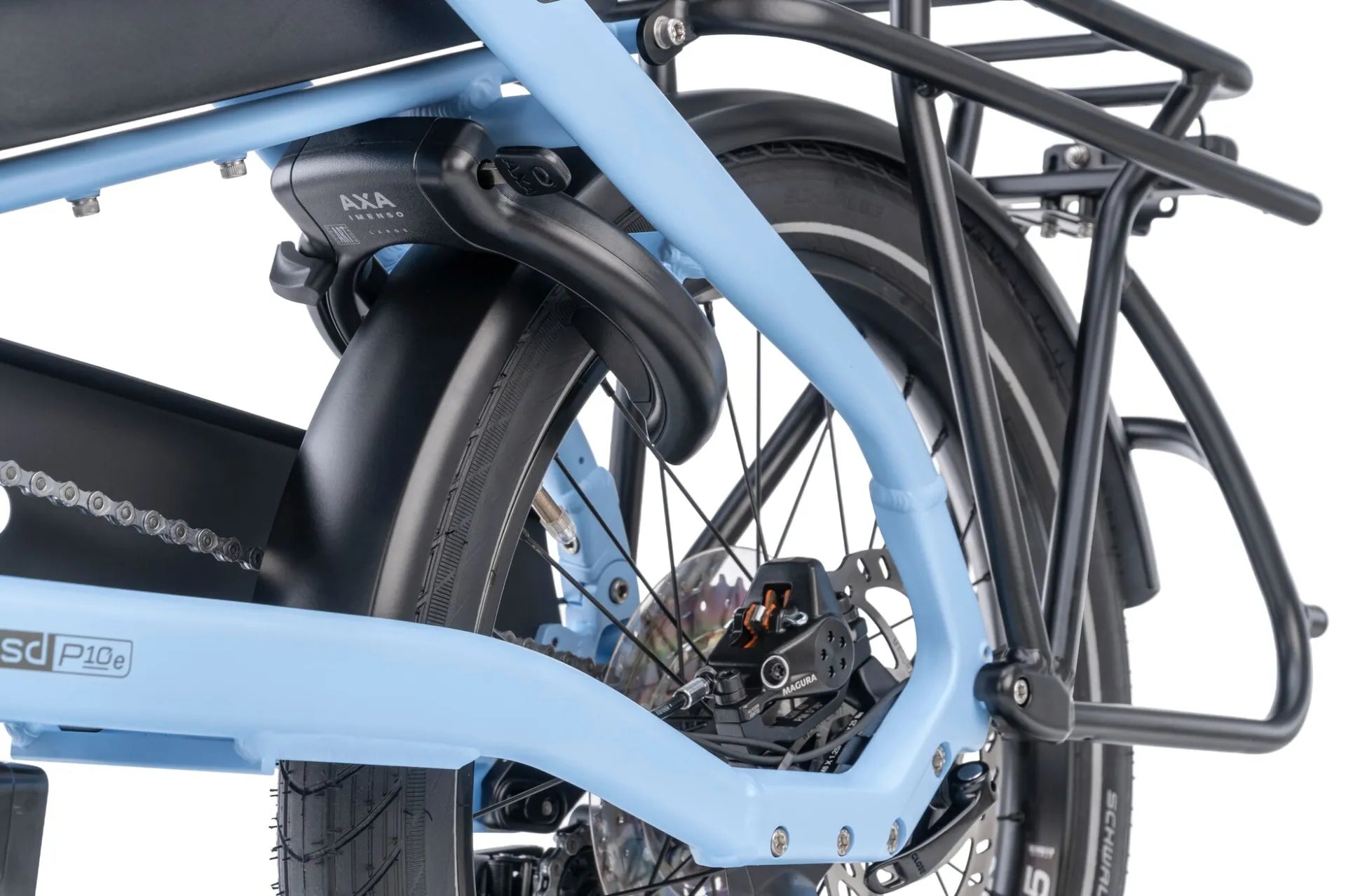

Frame Lock:
AXA, keyed-alike with Bosch battery
