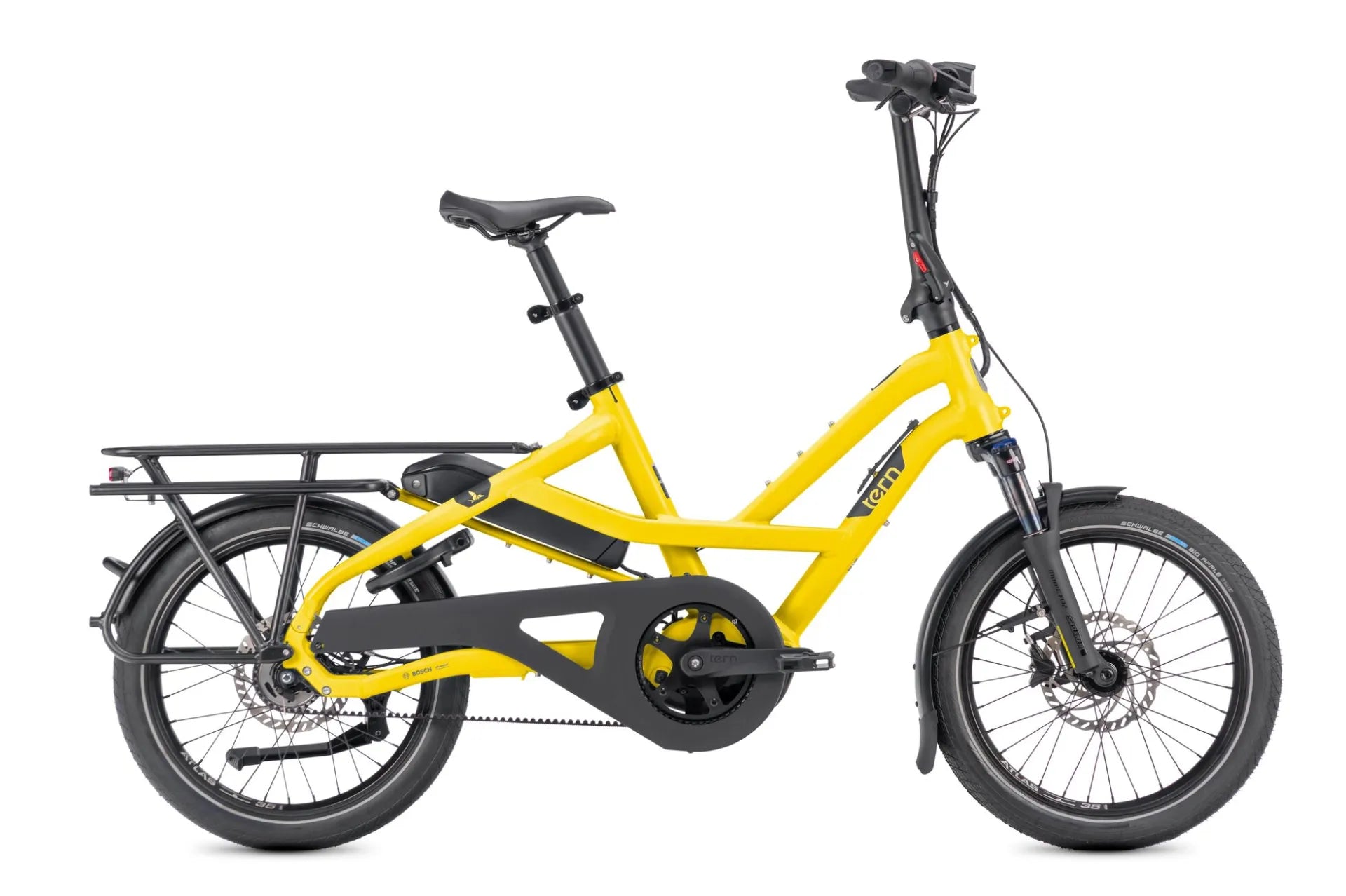

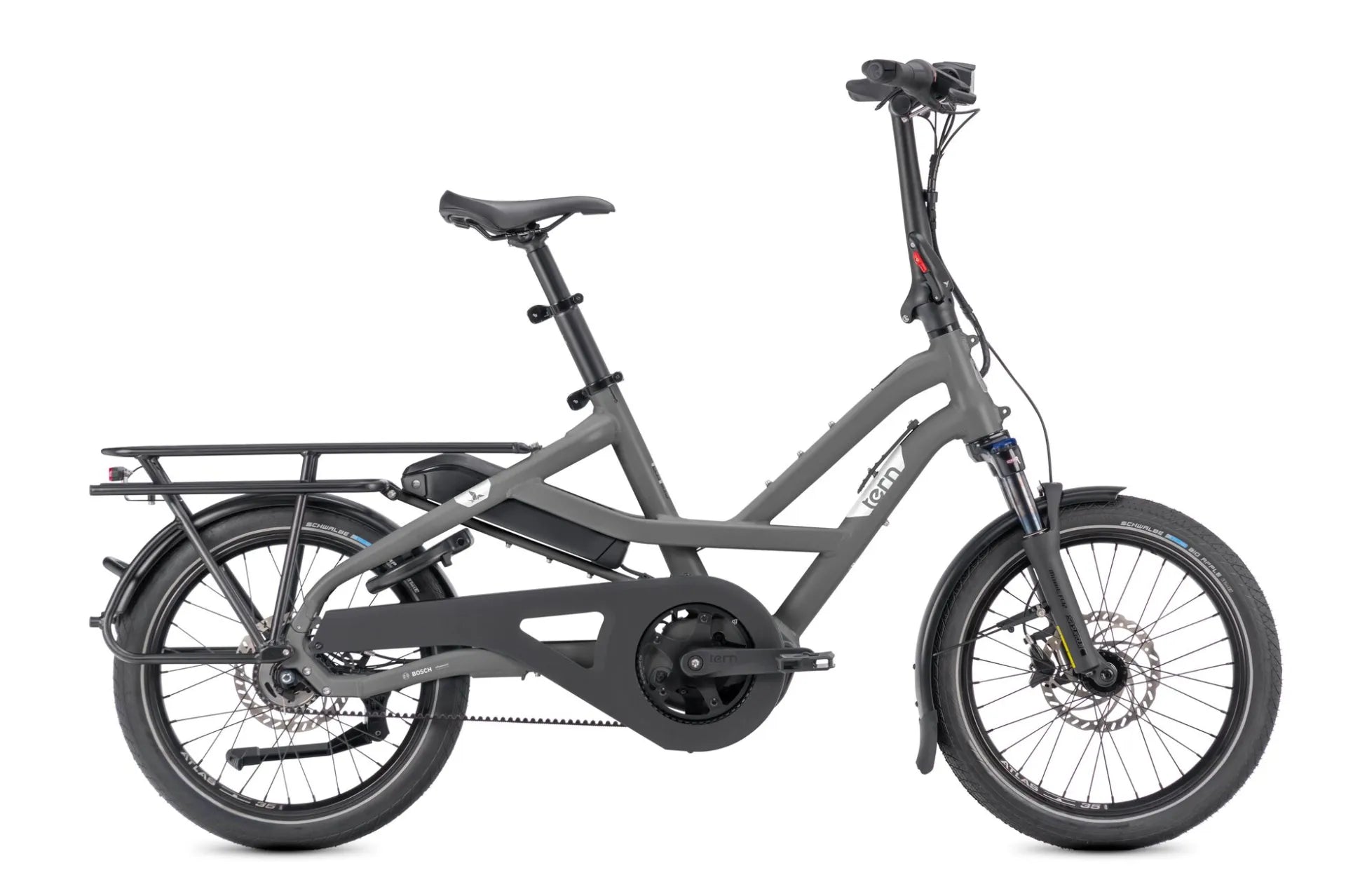

Tern HSD P5i (Gen 3)

$4,999.00
Type: Tern HSD
Call for Availability

Pickup currently unavailable at 18227 Bothell Way Northeast

Check availability at other stores

Mighty but Mini

A compact electric cargo bike that surprises with big-bike capability. The new HSD carries passengers and cargo with exceptional stability, while staying nimble in crowded streets and remaining delightfully easy to ride. Smart, strong, and effortlessly smooth, it’s everything you need from a cargo bike, without the unwieldiness you’d expect from one.

What makes it a P5i?

  • Bosch Performance Line motor delivers up to 75 Nm of torque, boosting your pedaling power by up to 340%
  • Bosch Smart System delivers a fully connected ride with eBike Lock, ride customization, over-the-air updates, and more
  • Minimal, compact Purion 200 display lets you control all features with your thumb and keeps the cockpit clutter-free
  • Shimano Nexus 5 internally geared hub with 263% gear range and twist shifter
  • Silent, smooth, and virtually maintenance-free Gates Belt Drive
  • Bosch PowerPack 545 battery provides long range of up to 67 mi (107 km)

HSD Highlights

  • Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 419 lb (190 kg) with a rear rack load capacity of 176 lb (80 kg)
  • Optimized frame geometry, a longer wheelbase, and a low center of gravity keep rides stable, even with heavy loads or at higher speeds
  • Magura hydraulic disc brakes deliver precise and responsive stopping power
  • Custom Suntour suspension fork absorbs road shocks for a smoother, more comfortable ride
  • Easy-sharing cockpit adjusts without tools to fit riders 4'11" - 6'7" (150 - 200 cm) tall and weighing up to 287 lb (130 kg)
  • Third-party tested and certified to UL 2849 (complete e-bike system) and EN 17860 (frame and fork, 419 lb) for proven cargo e-bike safety and reliability

SPECIFICATIONS

General Info
Generation:
Gen 3
Speeds:
1 x 5
Weight:
28.1 kg (61.9 lb)
Gear Inches:
38" - 99" (2.99 - 7.88 m)
Frame Sizes:
One size
Bike Size:
174 × 112.5 × 68 cm (68.5 × 44.3 × 26.8 in)
Wheelbase:
119 cm (46.9 in)
Standover Height:
48.5 cm (19.1 in)

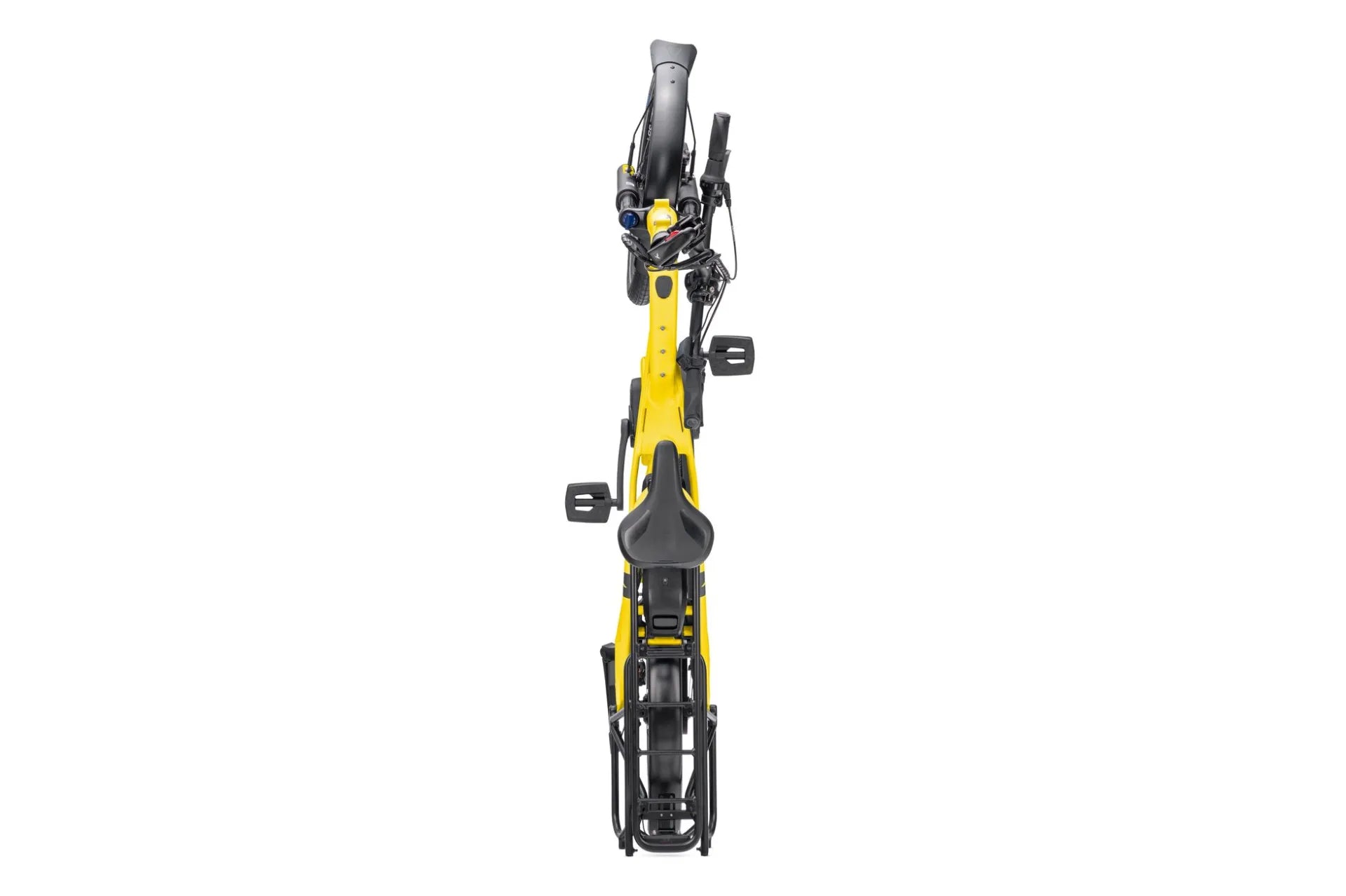

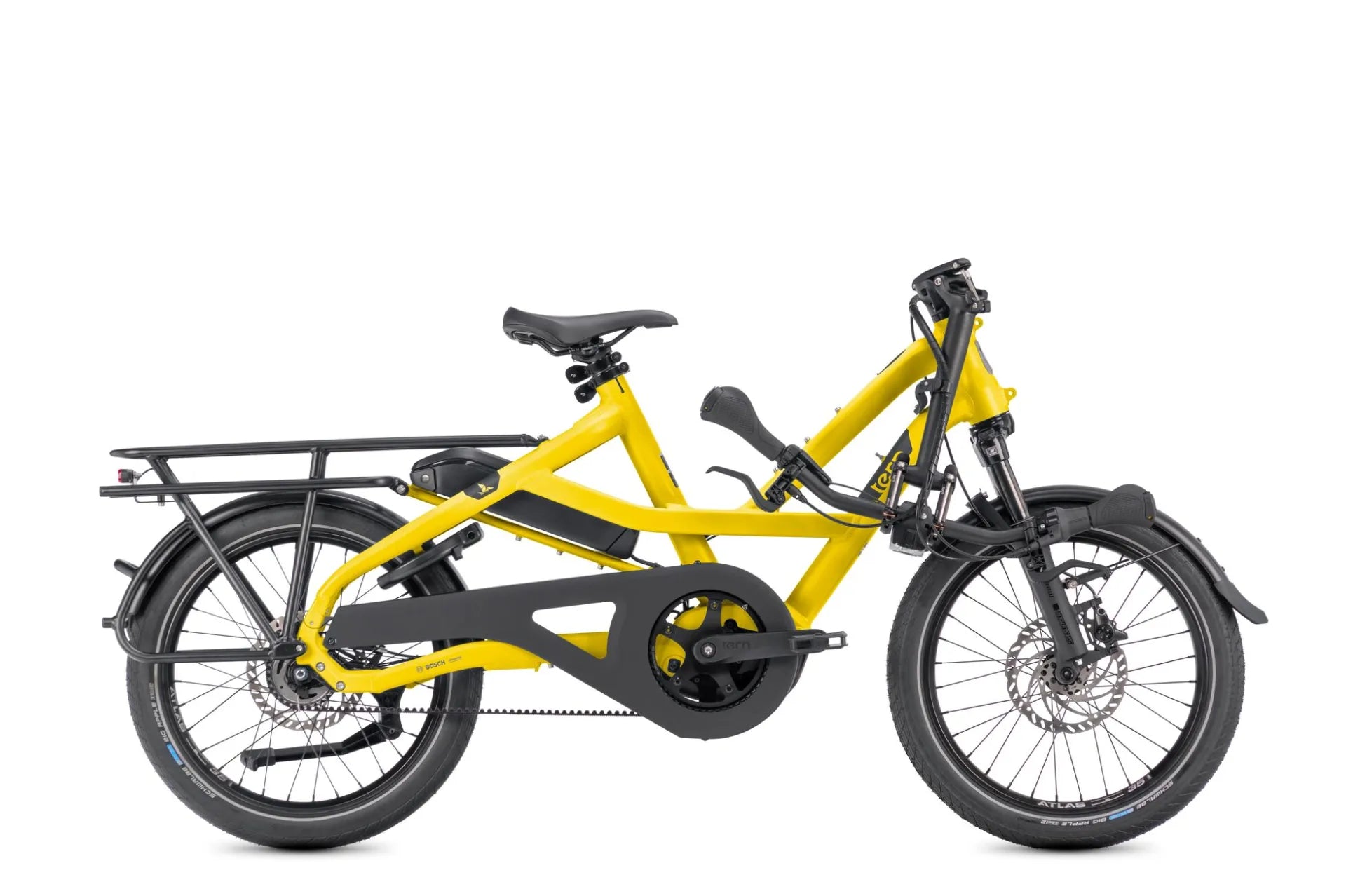

Folding Size:
166 × 42 × 87 cm (65.4 × 16.5 × 34.3 in)
Folding Time:
5 seconds
Distance: Seatpost to Handlebar:
52 - 59 cm (20.5 - 23.2 in)
Distance: Saddle to Pedal:
68 - 101 cm (26.8 - 39.8 in)
Suggested Rider Height:
150 - 200 cm (59.1 - 78.7 in)
Max Gross Vehicle Weight:
190 kg (418.9 lb)
Max Rider Weight:
130 kg (286.6 lb)
Frame
Frame:
Tern HSD, 6061-AL, patented design, EN17860 certified: 190 kg
Fork:
Suntour custom for Tern, 32 mm stanchions, Thru-axle, EN17860 certified: 190 kg

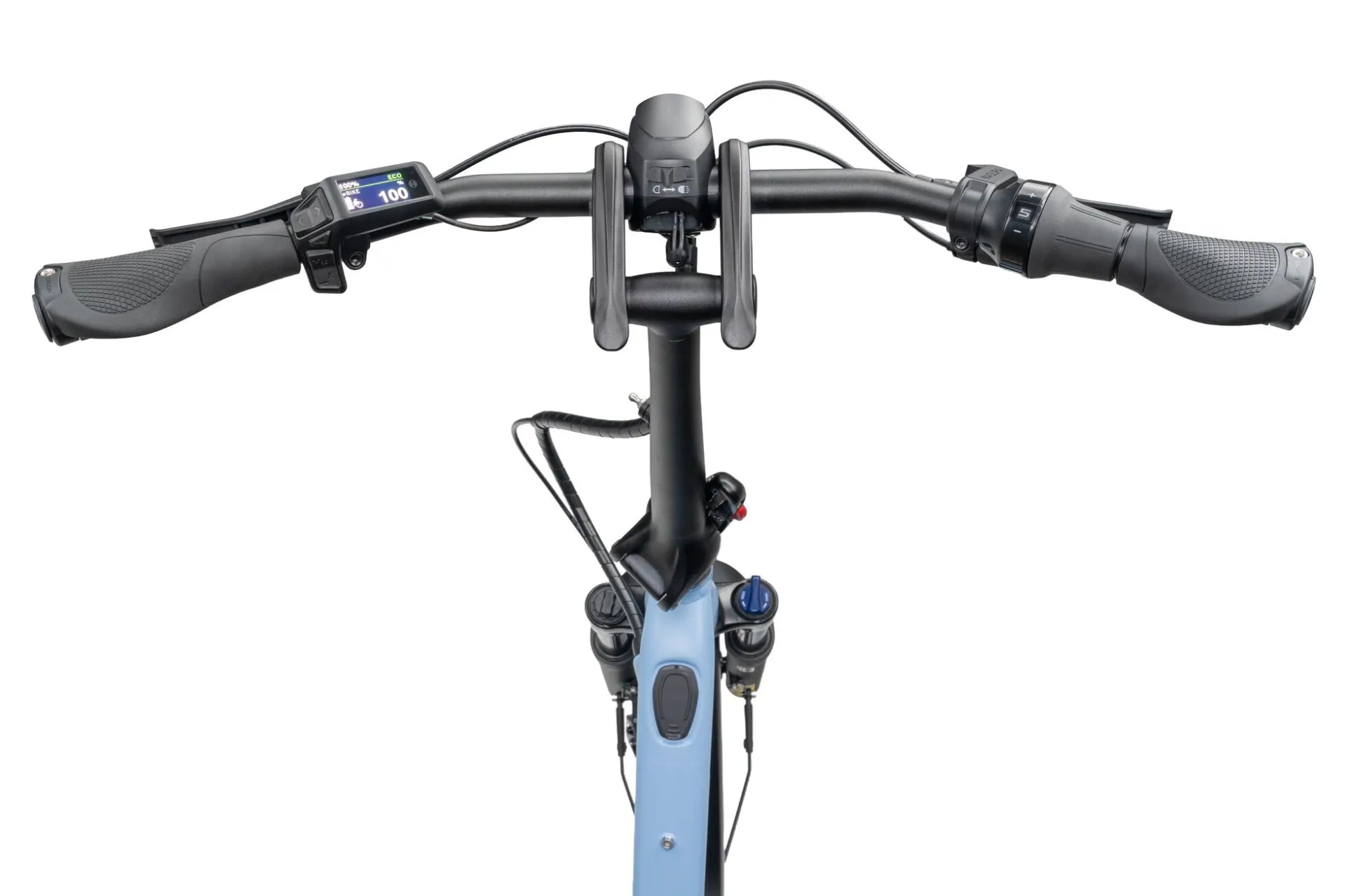

Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern by Velo

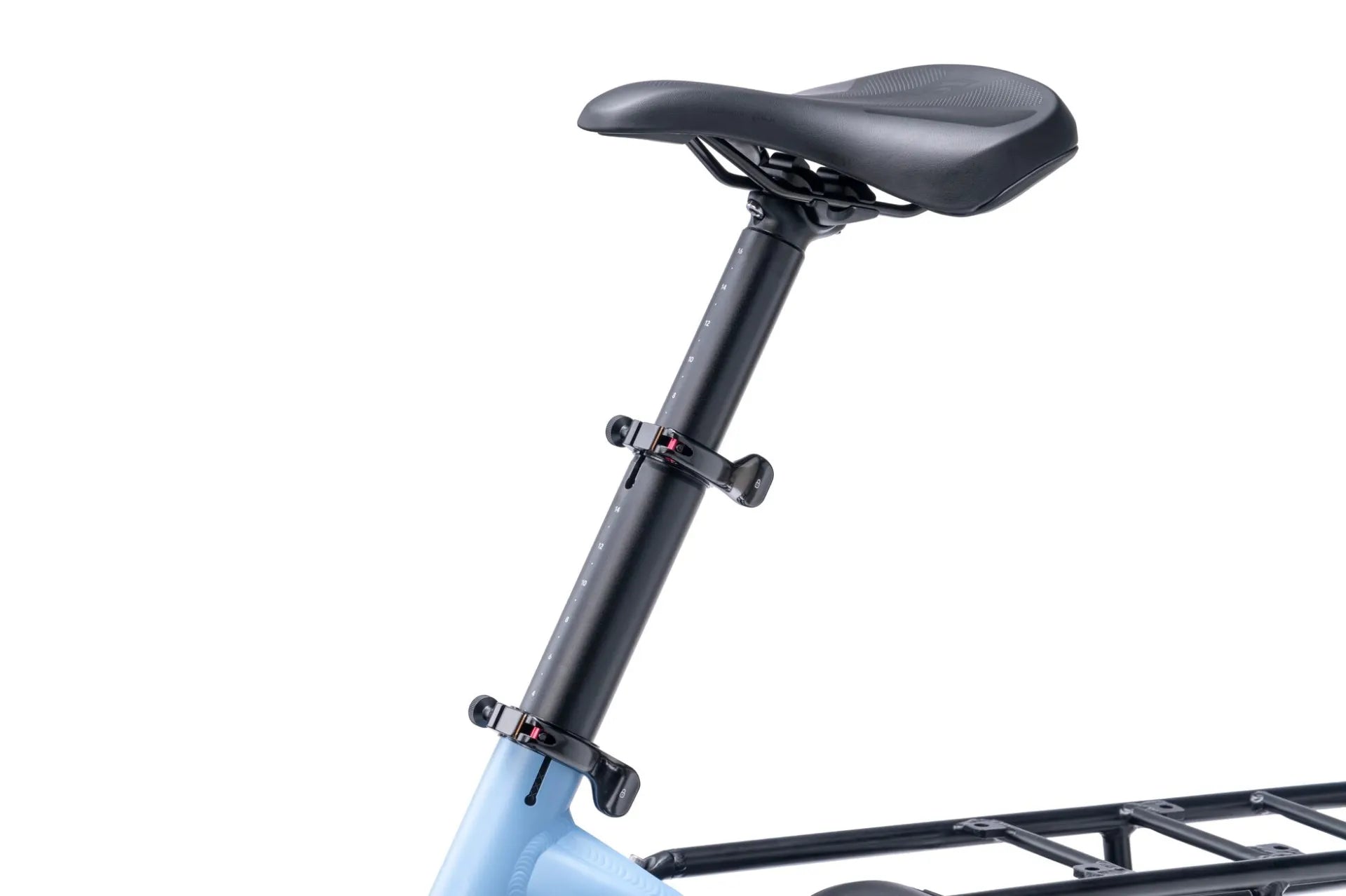

Seatpost:
Tern VLT 41/34.9mm, with LightAction levers
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Magura, hydraulic disc, 180 mm rotor
Rear Brake:
Magura, hydraulic disc, 180 mm rotor
Brake Levers:
Magura, hydraulic disc
Brake Cable & Housing:
Magura, hydraulic disc
Wheels
Front Wheel:
Tern Atlas H, cargo wheel
Rear Wheel:
Tern Atlas H, cargo wheel
Front Hub:
Novatec, Thru-axle, sealed bearings

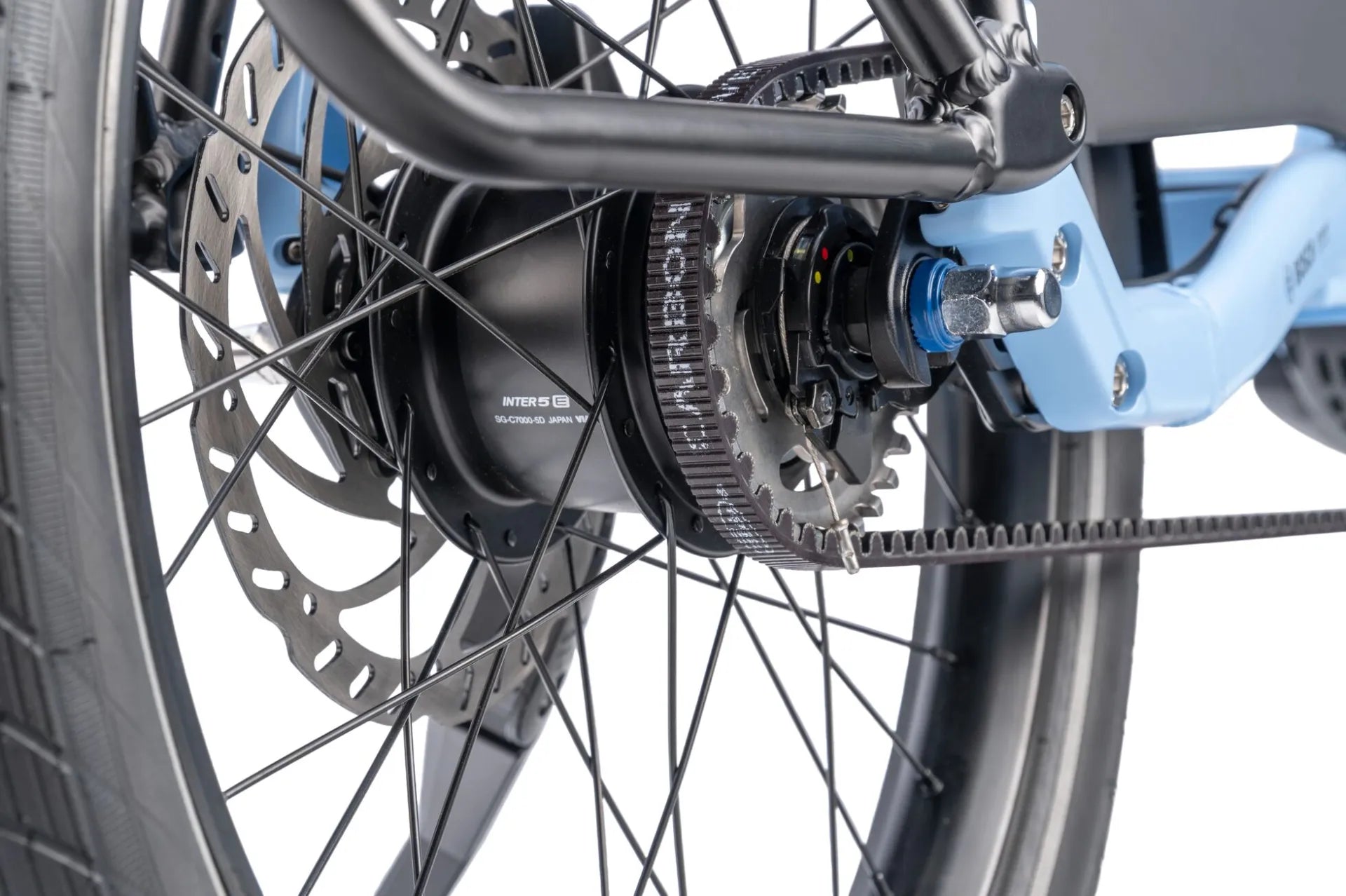

Rear Hub:
Shimano Nexus 5
Spokes & Nipples:
Stainless steel
Rims:
Tern Atlas H, cargo
Tires:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter:
Shimano Nexus 5
Crankset:
Tern HSD, Gates CDX CNC machined beltring
Cassette/Freewheel:
Gates CDX, precision CNC machined cog
Bottom Bracket:
Motor integrated
Chain:
Gates Carbon Drive CDX belt
Pedals:
Urban with non-slip surface, sealed bearings
Shifter Cable & Housing:
Shimano
E-System

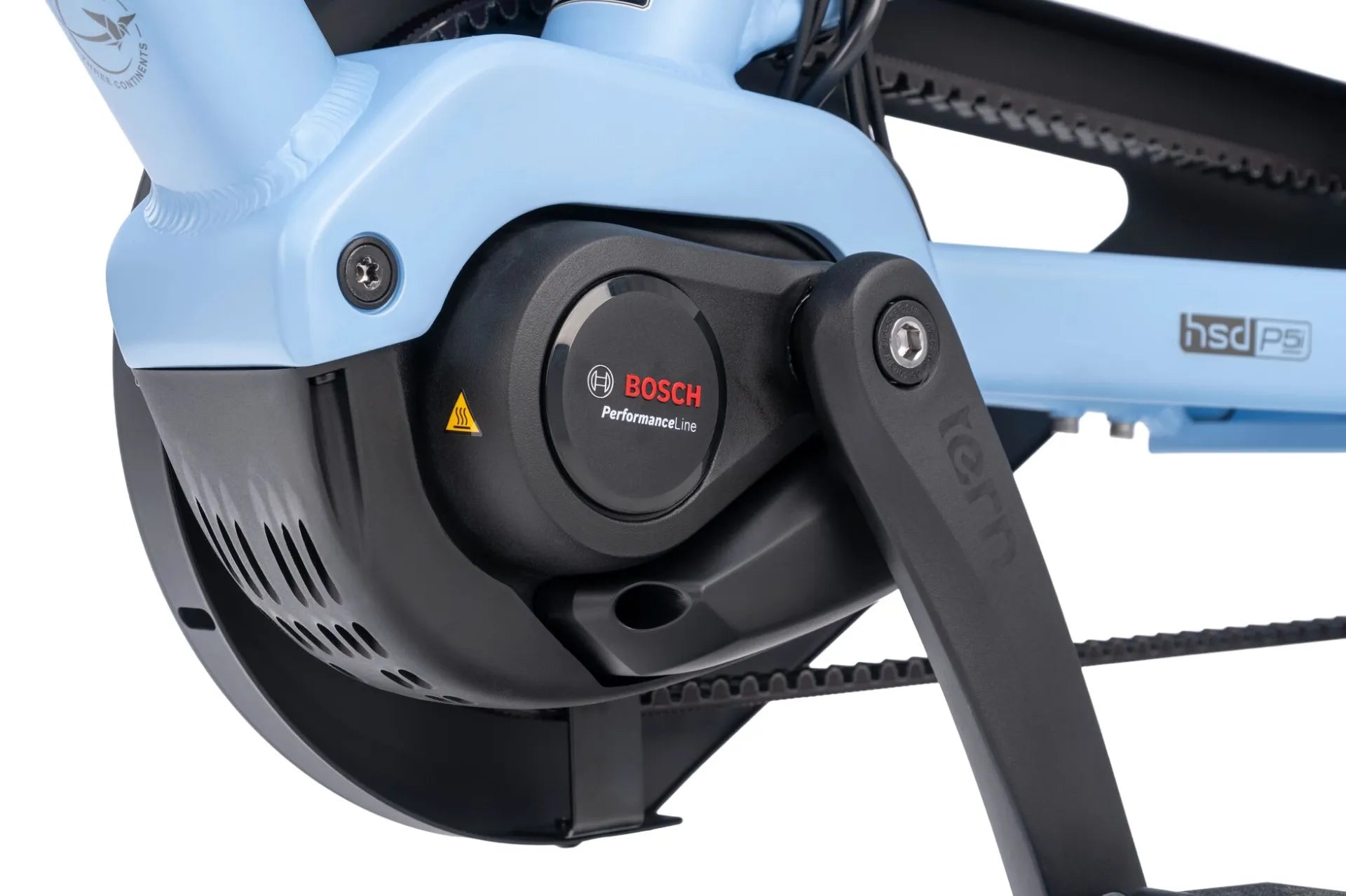

Motor:
Bosch Performance (BDU34, 340% Assist, 75 Nm Torque, max speed 25 km/h (EU); max speed 20 mph (US)

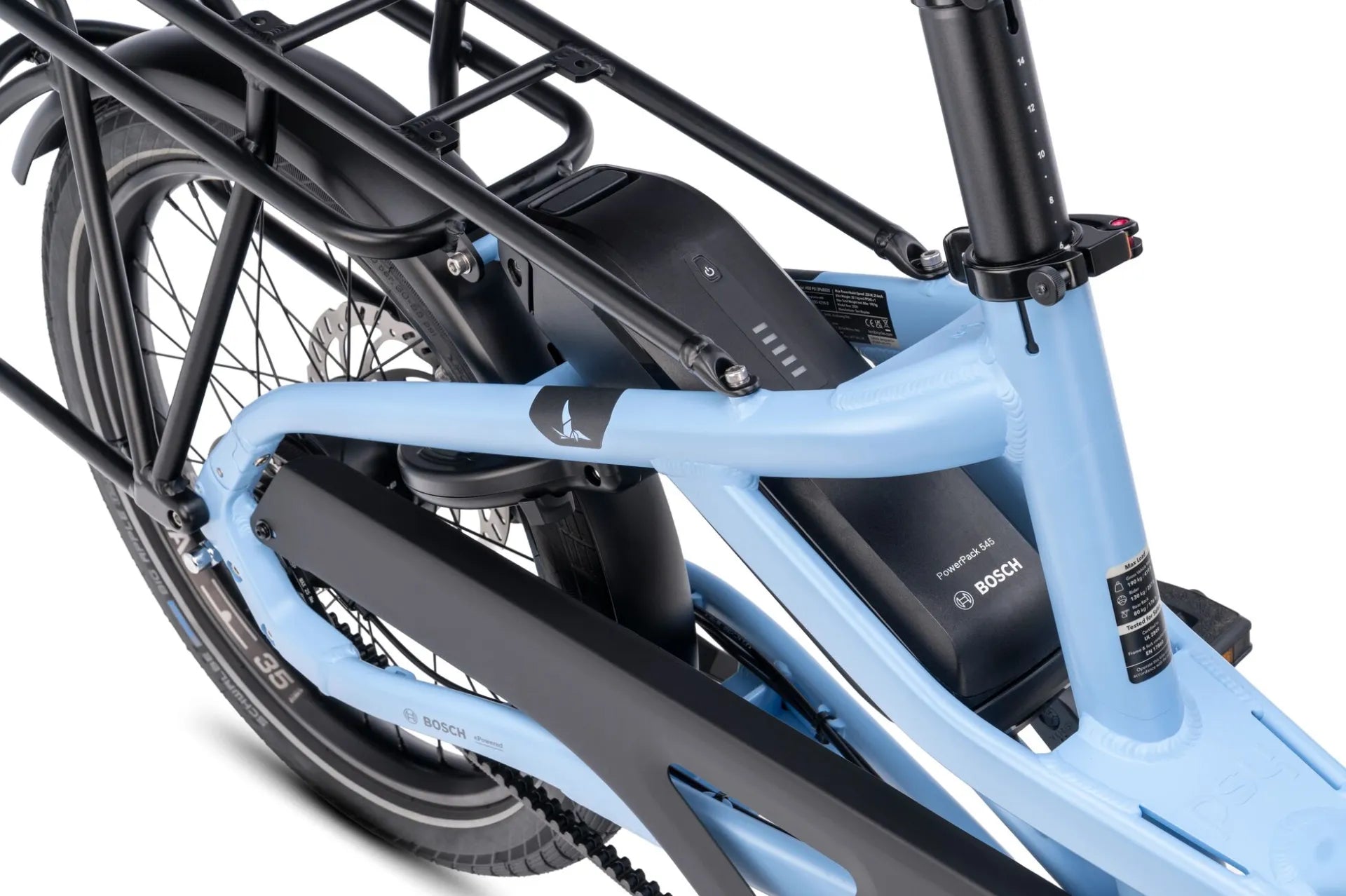

Battery:
Bosch PowerPack 545

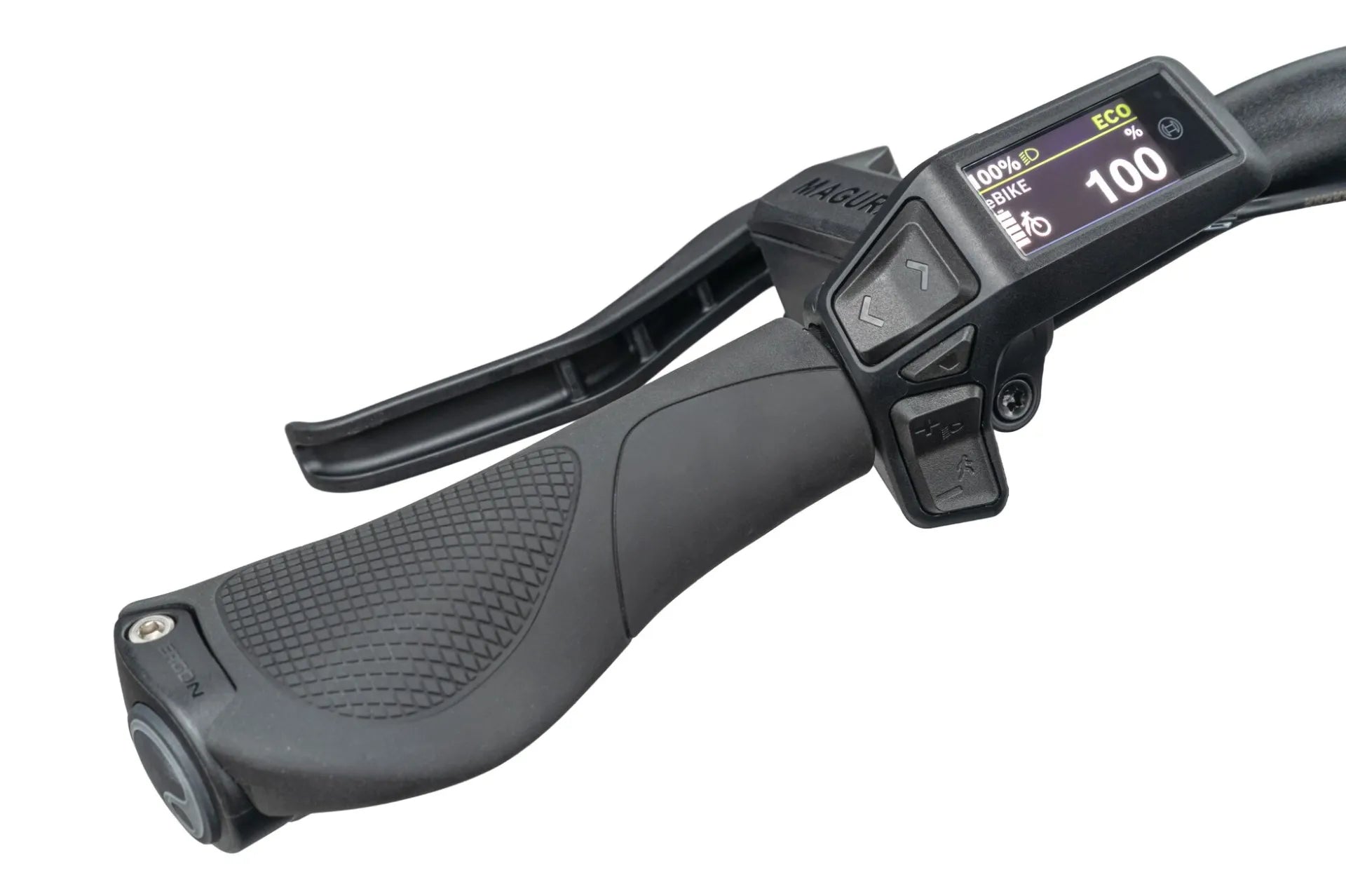

Display:
Bosch Purion 200, connectivity with Bosch eBike Flow app, electronic bike lock
Range:
545 Wh: 56-107 km (35-67 mi)
Charger:
Fast Charging, 220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell:
Pitch Plus, brass
Chainguard:
Tern Custom, full chain cover
Kickstand:
Ursus, rear mount
Luggage Socket:
Tern Combo Mount
Front Light:
Tern Valo Direct, 190 lumens
Rear Light:
Herrmans LED
Fenders:
Aluminum, stainless hardware

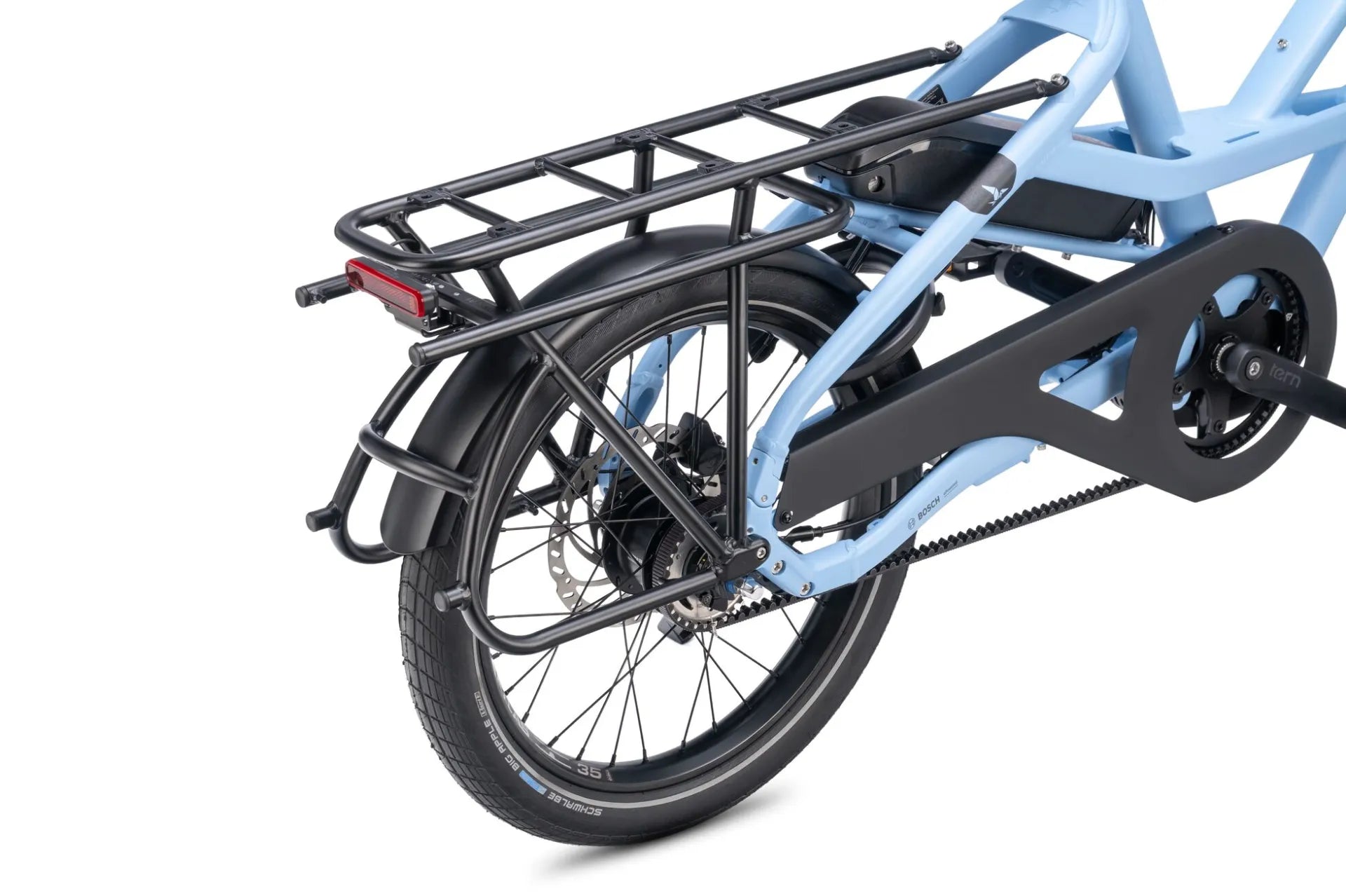

Rack:
Atlas H rack, 6 point mounting, ISO 11243:2023 certification: 80 kg
Frame Lock:
AXA, keyed-alike with Bosch battery
