Tern NBD S5i

$4,499.00
Type: One Passenger

NBD S5i Overview

  • Bosch Performance Line motor provides up to 65 Nm of torque and 300% support
  • Bosch PowerPack 500 powers longer trips, commutes, and journeys
  • Gates belt drive for clean, quiet, maintenance-free operation
  • Shimano® Nexus 5-speed internal hub
  • Magura MT4 hydraulic disc brakes for superior stopping power—even when carrying a passenger and riding fast
  • Ultra-low 39 cm (15.4”) standover height means gentle, low steps are all that’s required to get on and g
  • Ultra-low center of gravity improves balancing and maneuvering when riding with kids through parks and narrow street

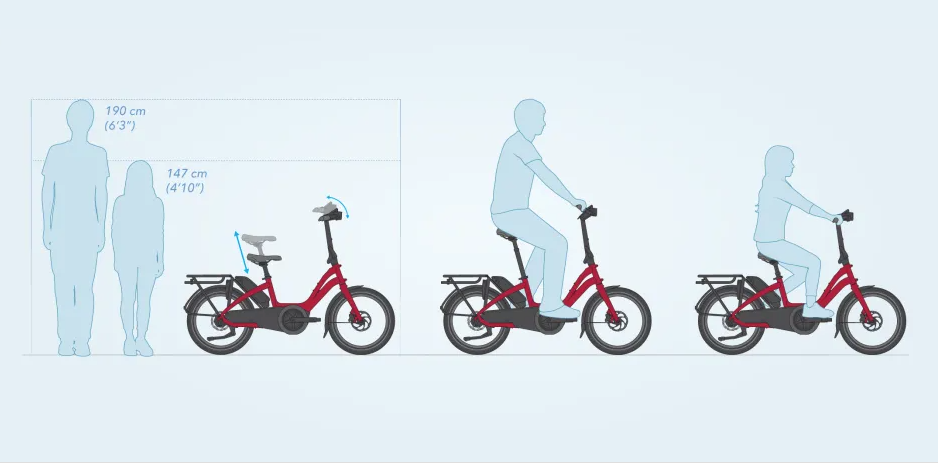

  • Fits riders 147 - 190 cm (4'10" - 6'3")
  • Motor Bosch Performance, 300% Assist, 65 Nm Torque, max speed 20 mph
    Battery Bosch PowerPack 500Wh
    Display Bosch Intuvia
    Charger Bosch Standard charger
    Frame Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 308lbs
    Fork Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 308lbs
    Rear Shock Not applicable
    Front Brake Magura MT4, hydraulic disc
    Rear Brake Magura MT4, hydraulic disc
    Rear Derailleur Spec not provided
    Shift Levers Shimano 5 speed
    Chain Gates Carbon Drive CDX belt
    Cassette Gates CDX, precision CNC machined cog
    Crankset Tern NBD custom, Gates CDX CNC machined beltring
    Chain Ring Spec not provided
    Chain Guard Spec not provided
    Rims Kinetix Comp, for disc
    Front Hub Shimano disc
    Rear Hub Shimano disc
    Front Tire Schwalbe Big Apple, 55-406, puncture protection, Reflex
    Rear Tire Schwalbe Big Apple, 55-406, puncture protection, Reflex
    Handlebar Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm
    Stem Tern Andros, adjustable, forged construction, patented technology
    Headset Tern Flux, cartridge bearings, Physis integrated
    Grips Ergon
    Saddle Tern Upright by Velo
    Seatpost Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable
    Pedals MKS Platform, Tern custom design
    Front Light Tern Valo direct, 190 lumens
    Rear Light Herrmans
    Kickstand Ursus, rear mount
    Rear Carrier Gaia Rack, 27 kg capacity, Vertical Parking
    Fenders SplashGuard, stainless hardware
    Bell Aluminum
    Lock ABUS Keyed-alike

    FRAME SIZE:: One Size

    WEIGHT::51.6 lb

    GEAR INCHES::34" - 90"

    FOLDING SIZE::15 × 61.4 × 31.1 in

    FOLDING TIME::5 seconds

    DISTANCE, SEATPOST TO HANDLEBAR::17.7 - 20.5 in

    DISTANCE, SADDLE TO PEDAL::26.4 - 43.3 in

    SUGGESTED RIDER HEIGHT::57.9 - 76.8 in

    MAX GROSS VEHICLE WEIGHT::308.6 lb
